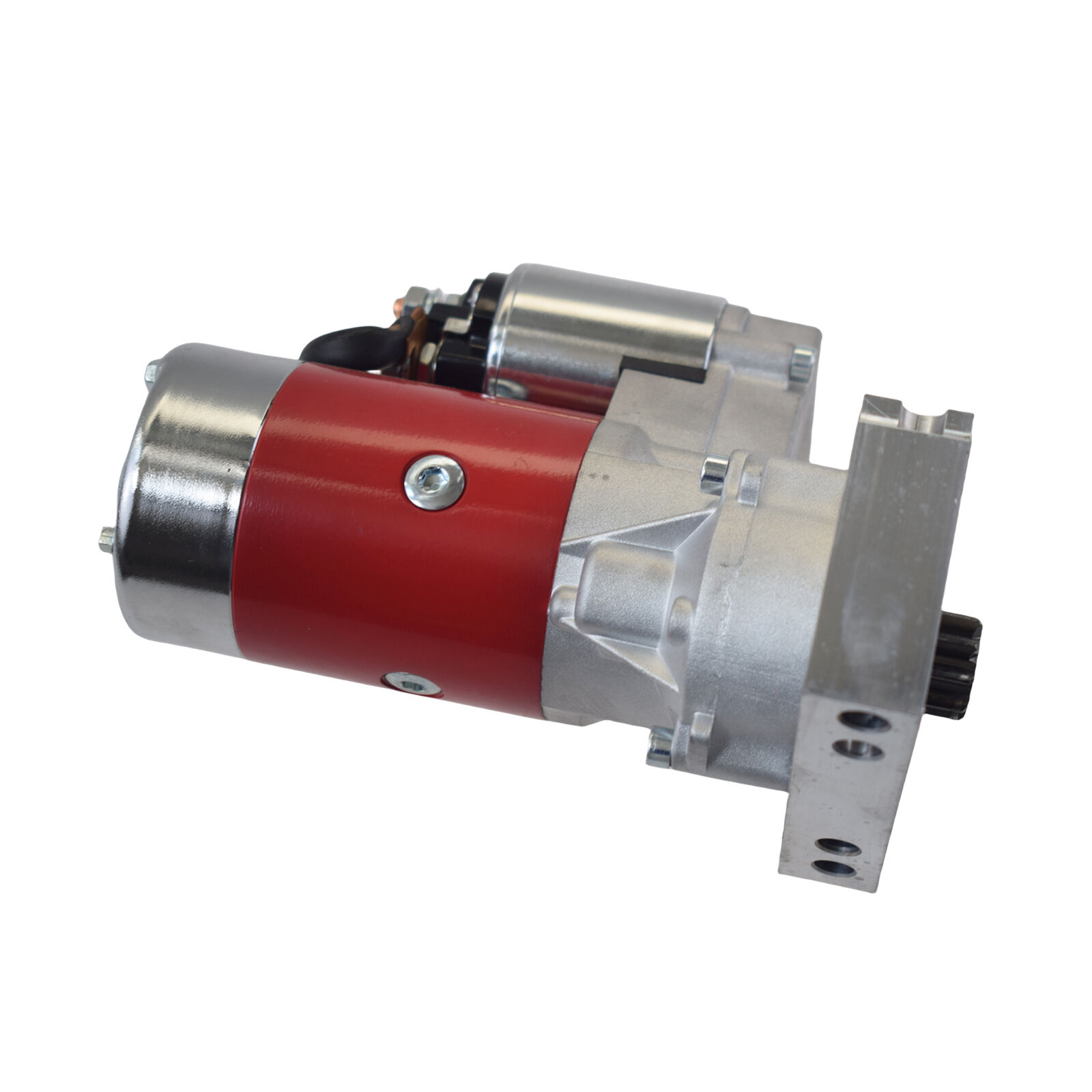

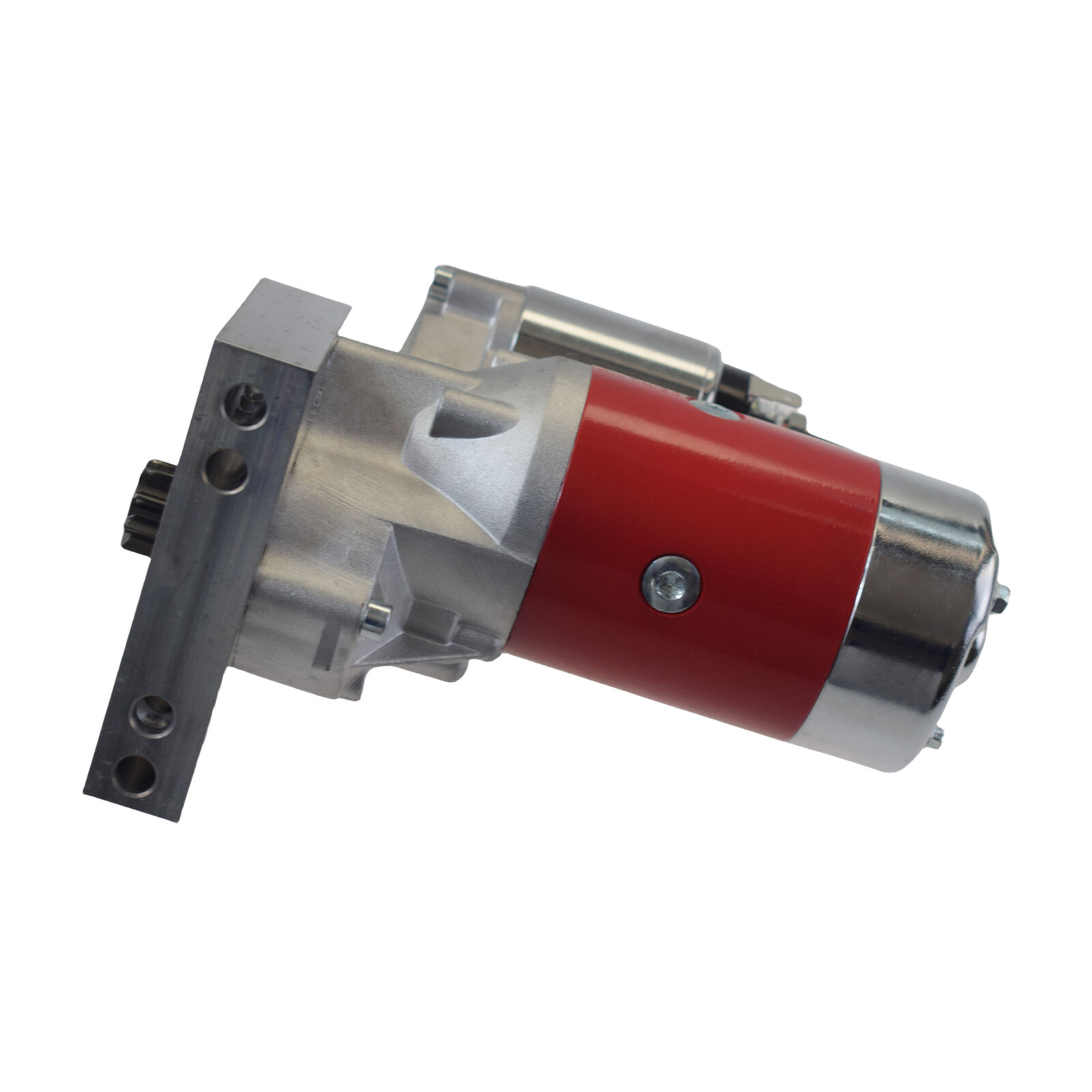

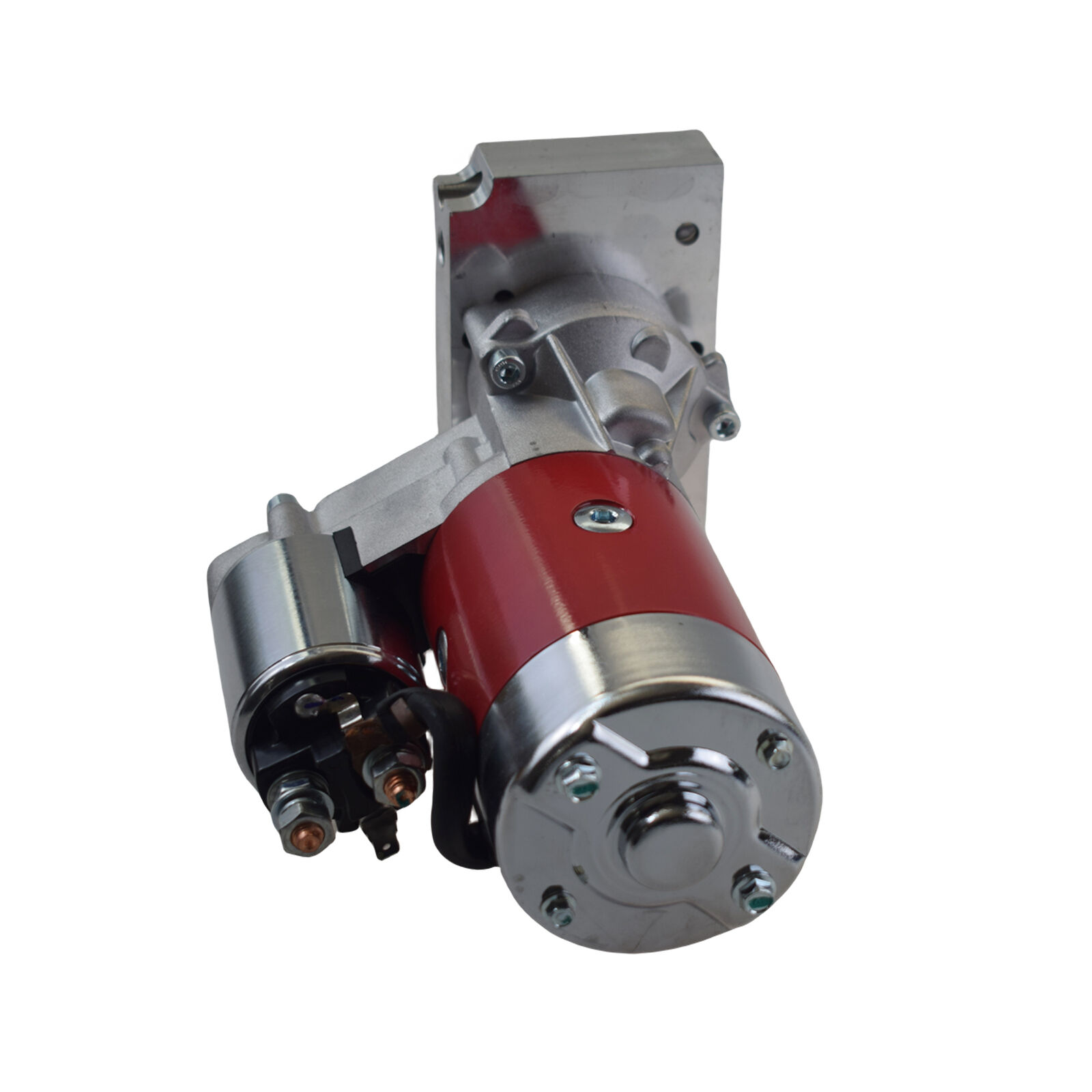

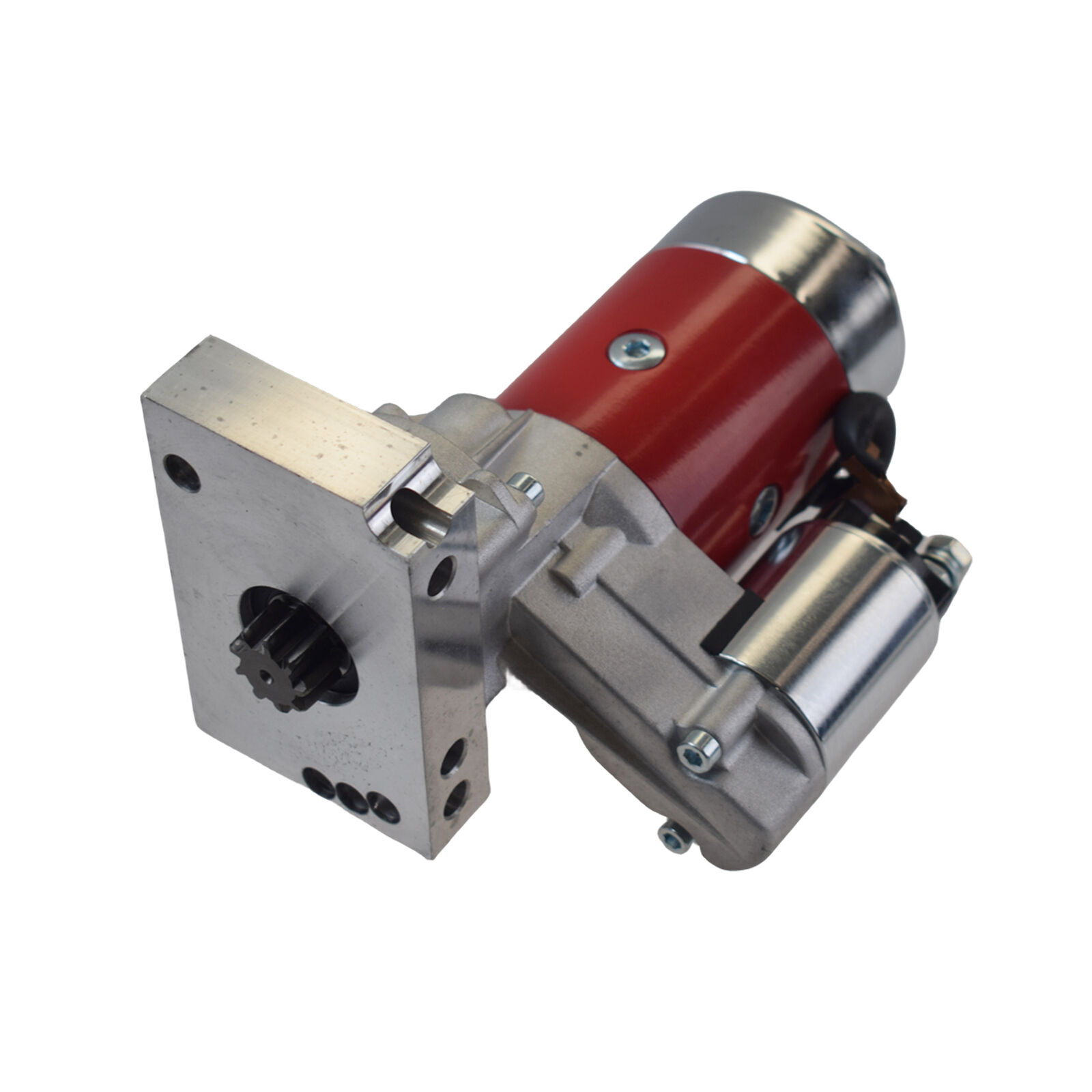

Starter Motor 9 Teeth Fit For Chevrolet Small Block Big Block V8 327 350 454 3HP
SKU code: SMOTOR-CV002
Features
High Torque, High Output Gear Reduction Drive Design Spins Your Engine Over Faster.
50% More Cranking Torque
Perfect For High Compression Or Supercharged Engines.
Straight Bolt Mounting Plates, Works With All 153 Tooth Or 168 Tooth Ring-Gears On All Small Block And Big
Block For Chevy V8 And For Chevy V6.
Compact Off-Set Design, Allows More Header And Chassis Clearance.
Capable Of Cranking A 15:1 Compression Engine That Is Up To 700 Cubic Inches.
3HP Motor
Specifications
Color: Red
Material: Aluminum
Interchange Part Number: for 18493, for 18493N
S114-254S1BX, S114-823SBX, SD114-254S1
Replacement for Pp106, Pe106, 91-25-1201
Hatachi: S13-65C, S13-65S1, S13-65S1BX
Type: 3HP
Tooth Flywheel: 153 and 168
Number of Teeth: 9
Voltage: 12V
Power: 2KW / 2.68HP
Rotation: CW
Starter Size: for Mini Type
Gear OD: 0.988in / 25.1mm
Version: High Torque Version/3-Clocking Positions
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Mtg Ear 3 Hole: 10mm Unthreaded
Mtg Ear 4 Hole: 10mm Unthreaded
Fitment
This Starter Motor Comes With 9-Tooth
Fit For Chevy Fits GMC HD Starter Motor 3HP 305 350 454
Fit For Chevy-V8 Small Block, Big Block& V6 with A/T& M/T With 153 or 168 Tooth Ring Gear
OEM(s) Replaced: For Chevrolet, For GMC Motors

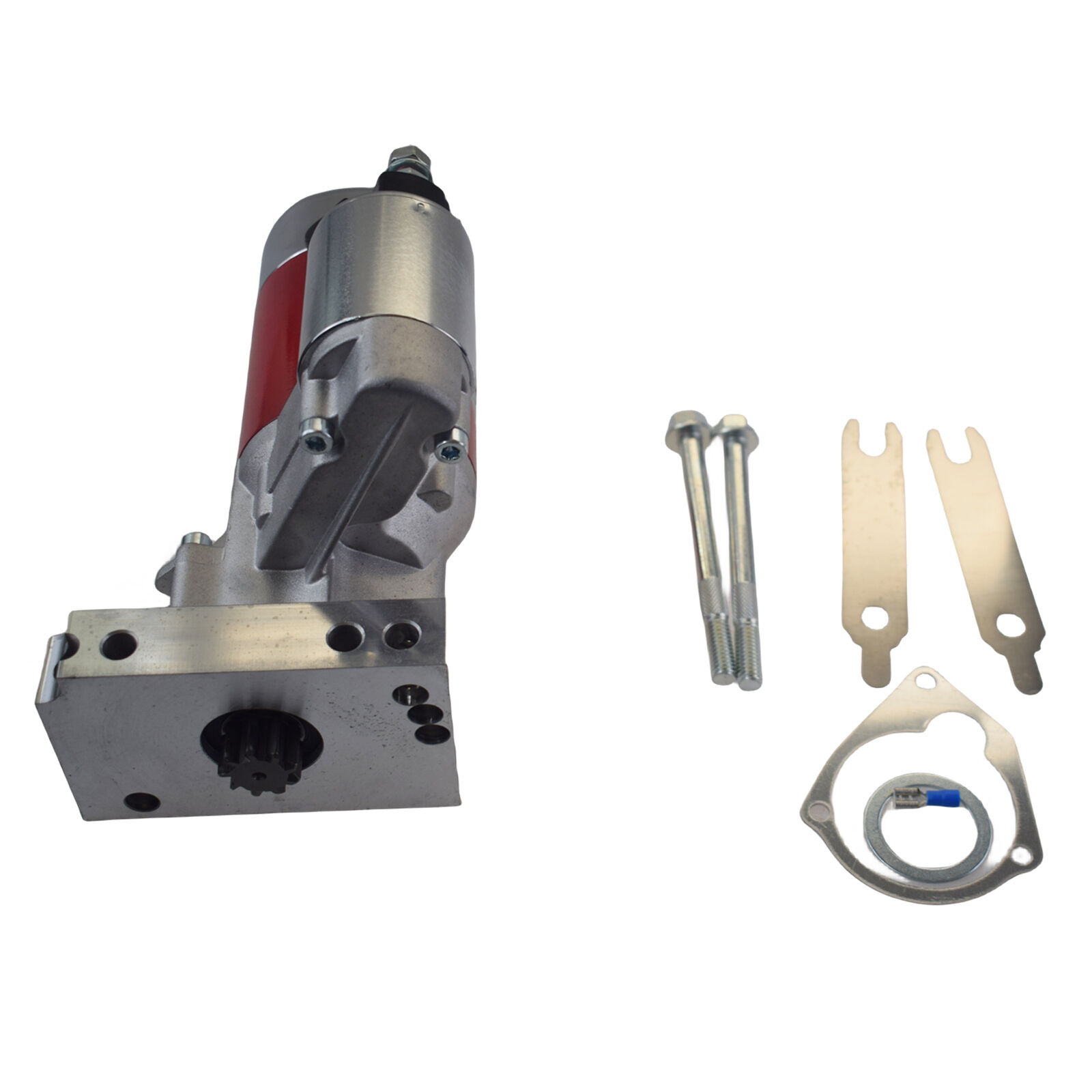

Package
1 x Starter Motor
Mounting Pad, Mounts Bolts, Shims & Handware as Picture Shown
SKU | SMOTOR-CV002 |
Brand | POWEROY |
Shipping Weight | 5.5500kg |
Shipping Width | 0.190m |
Shipping Height | 0.145m |
Shipping Length | 0.290m |
Shipping Cubic | 0.007990000m3 |
Assembled Length | 0.290m |
