Fitment
For all 4/ 6 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to 500BHP

Note:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

Specification

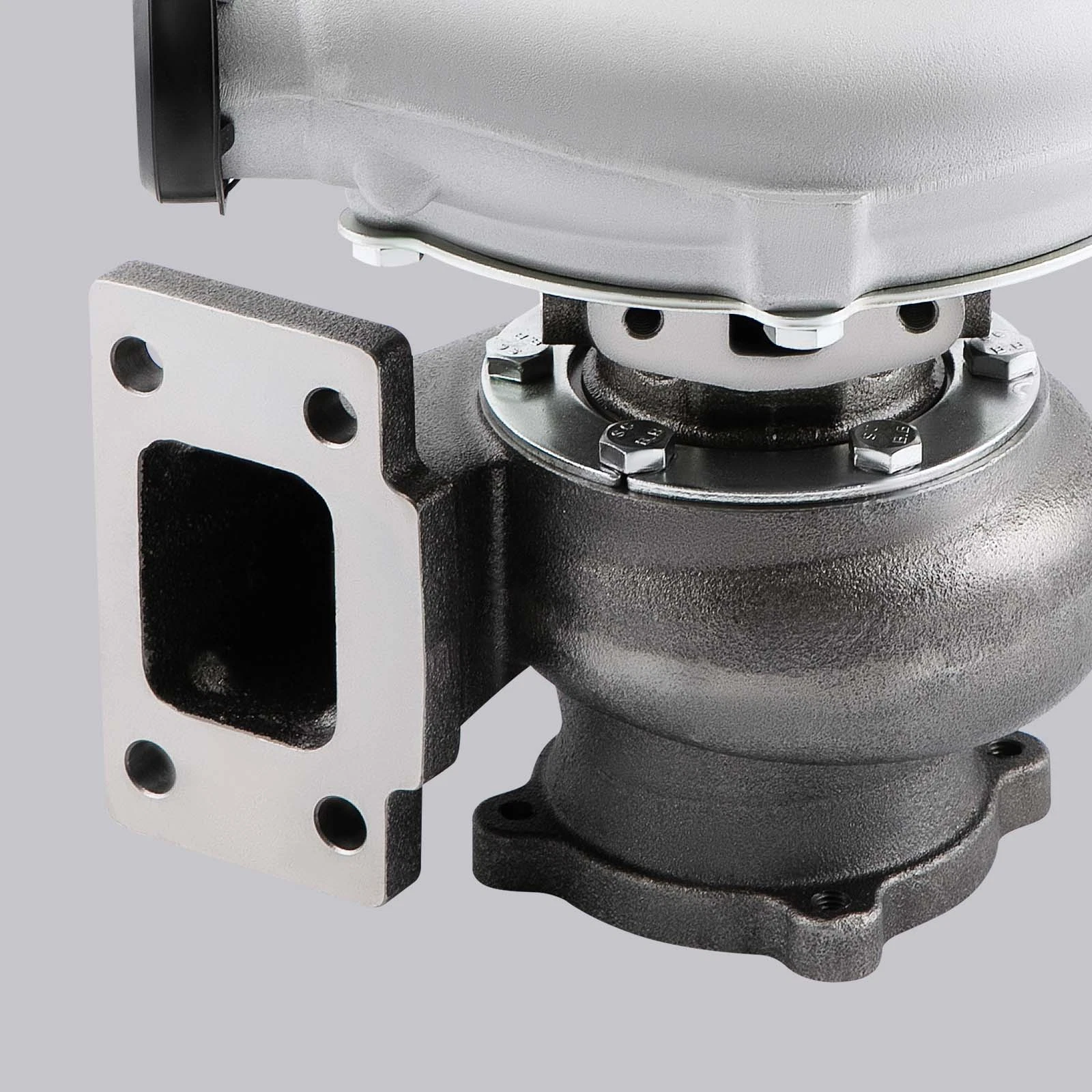

Exhaust Inlet Flange: Standard T3 Flange

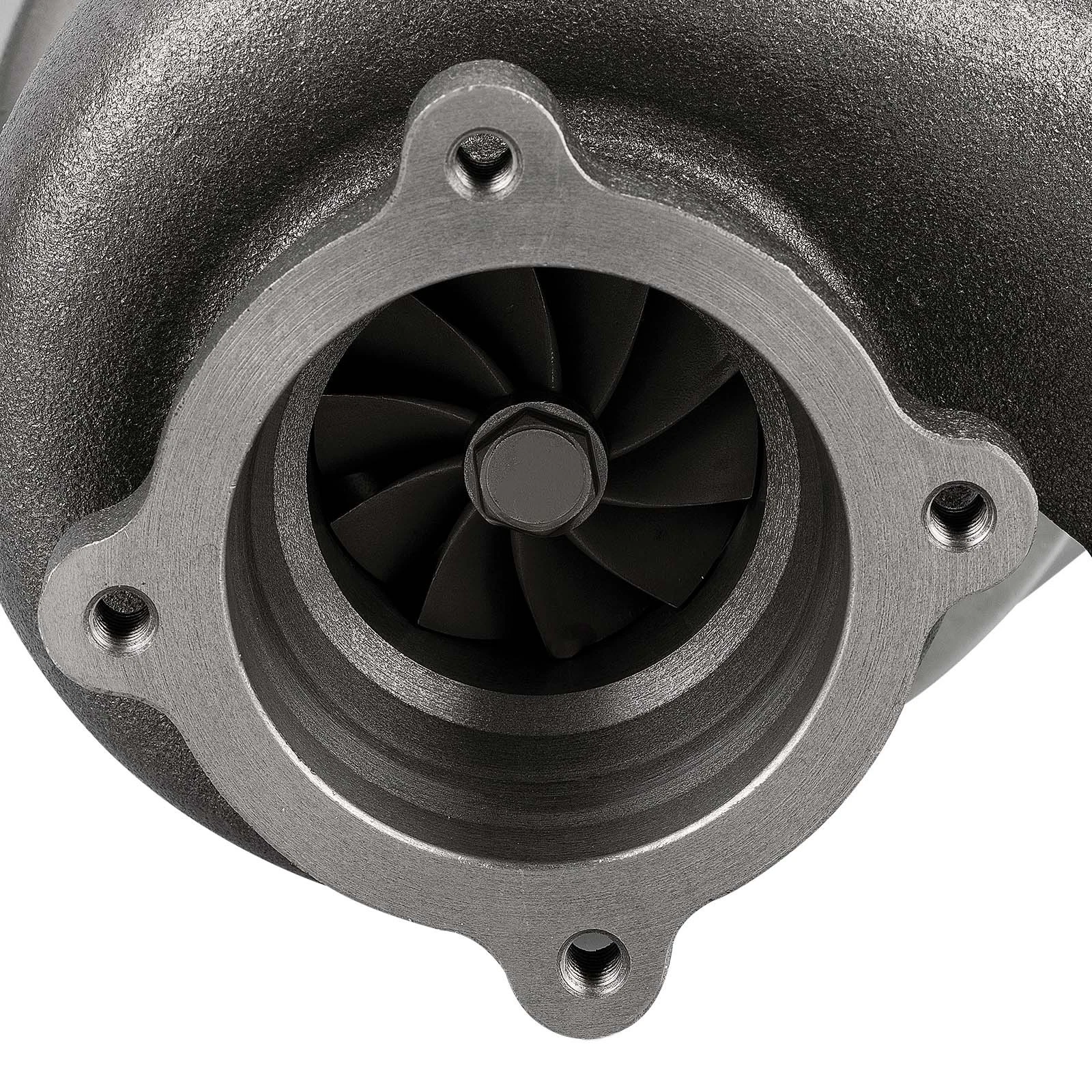

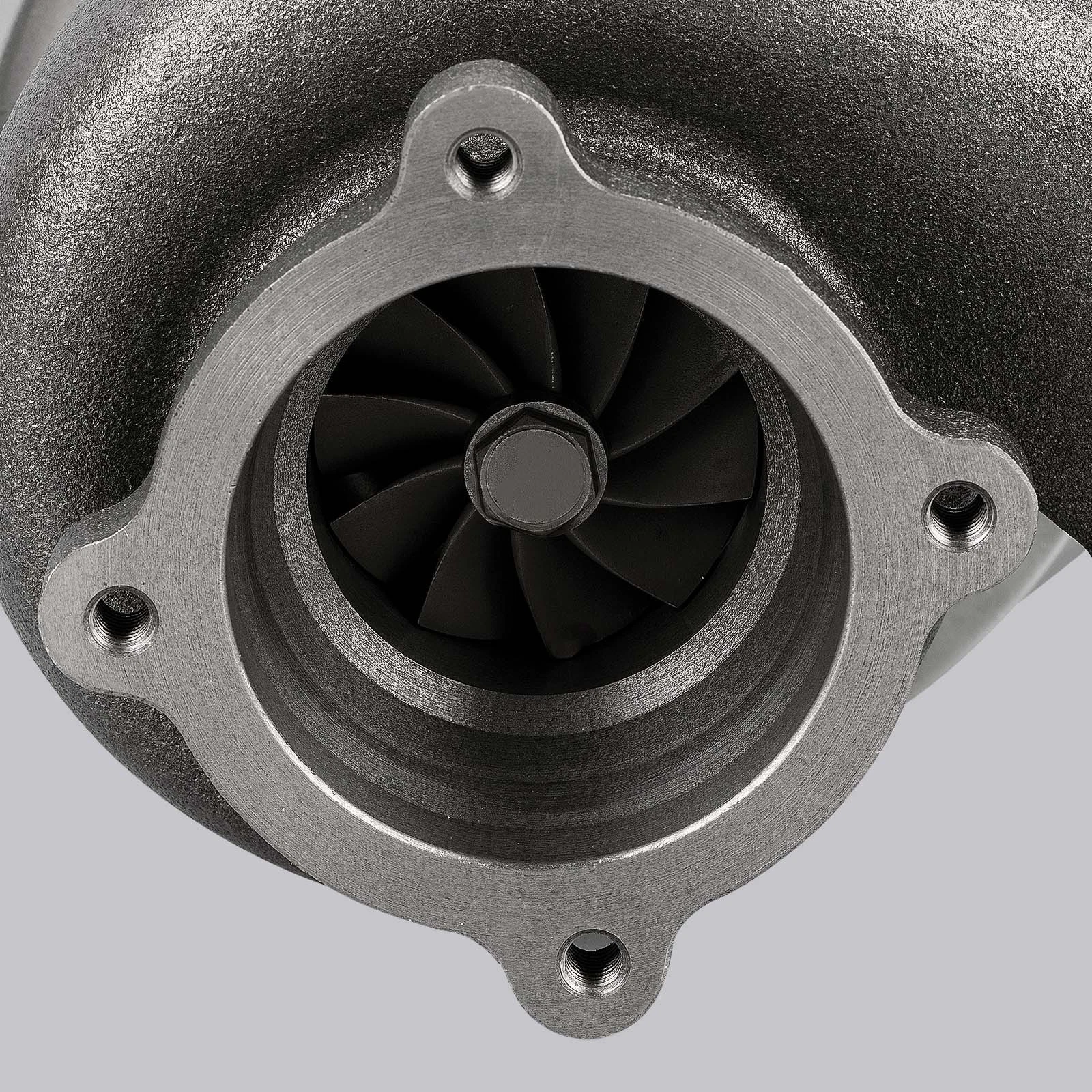

Exhaust Outlet Flange: 4-Bolt
Turbine Side:
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82

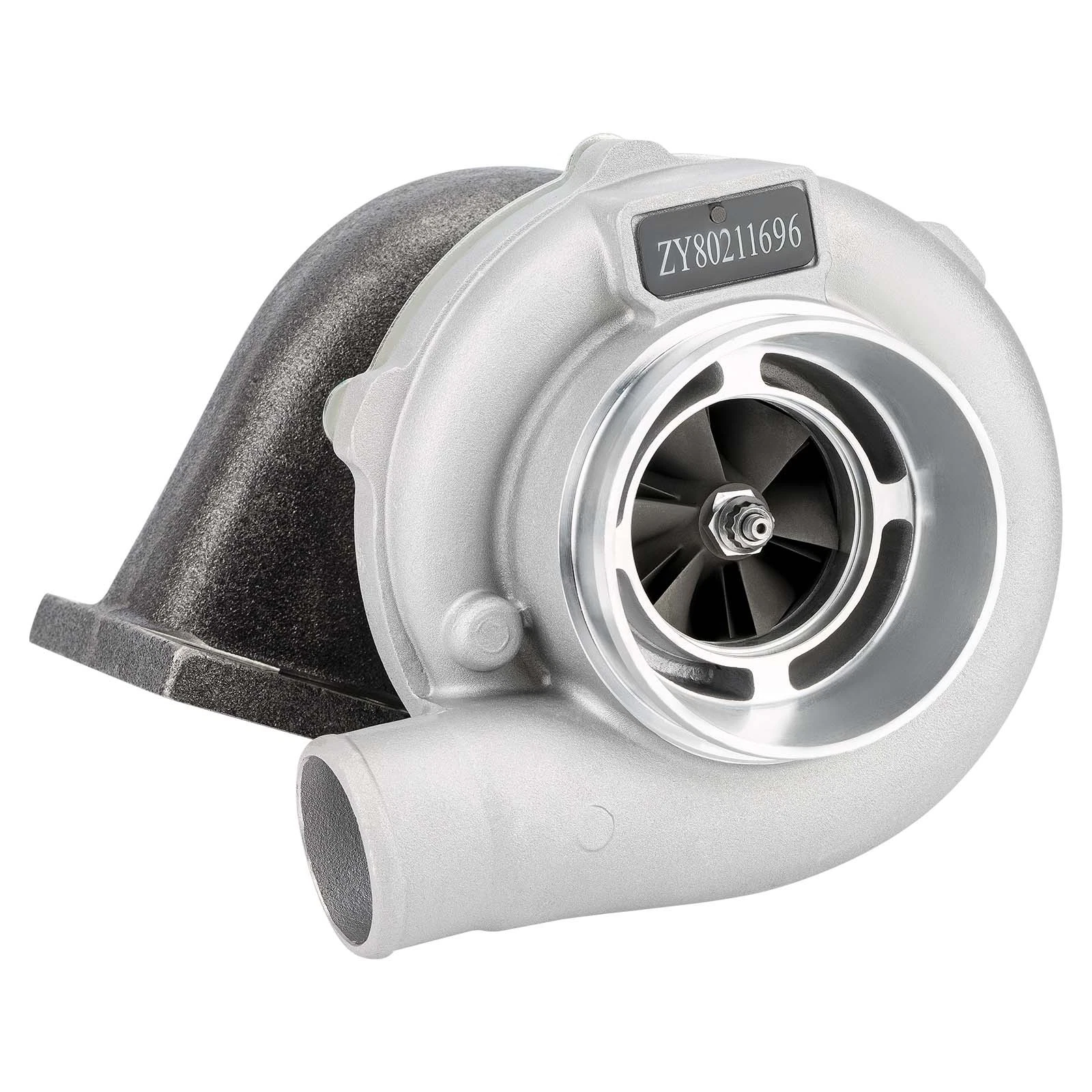

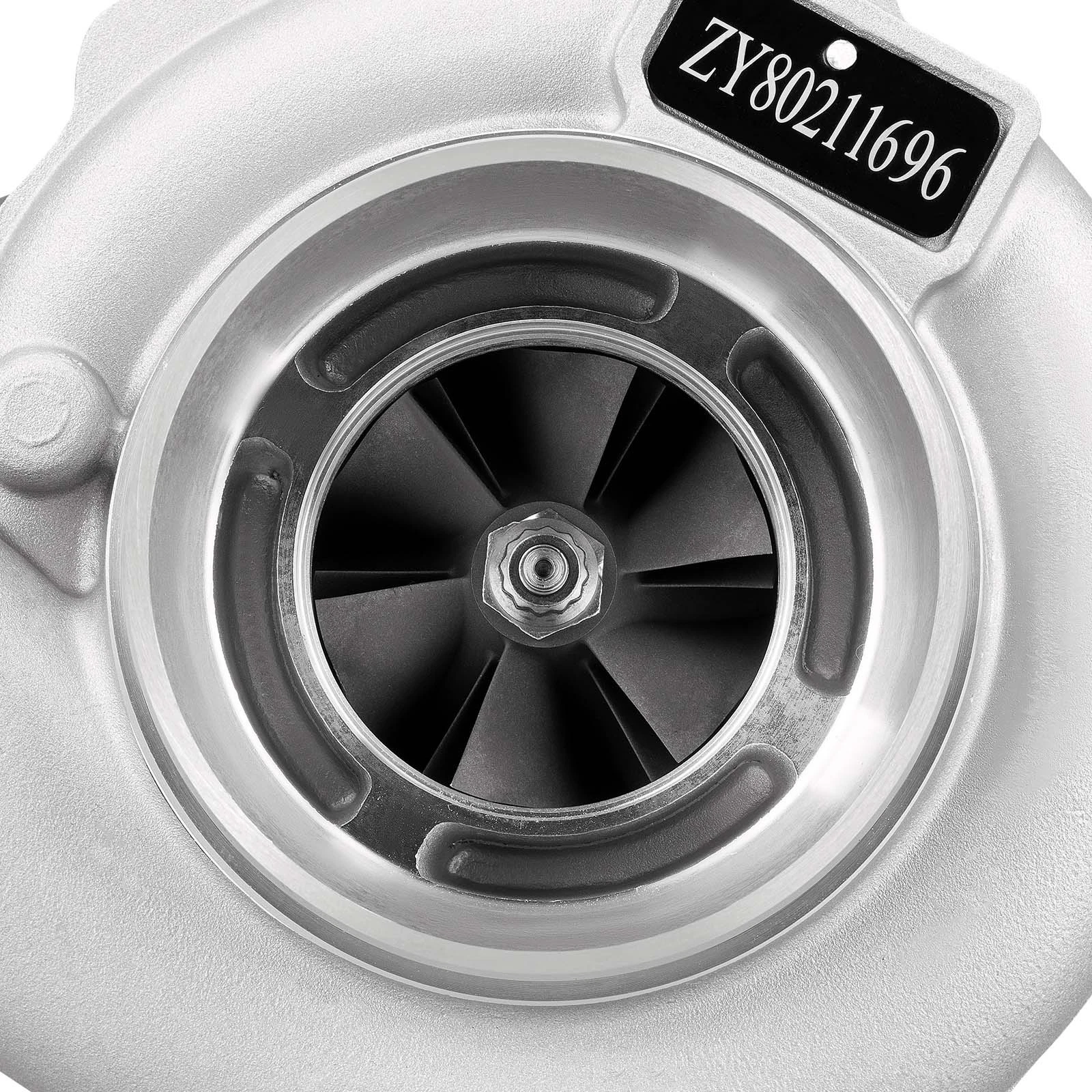

Compressor Side:
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R:0.6

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil Cooled
Oil Inlet: M121.25 & 2M81.25
Oil Outlet: 2M81.25
Water: M181.5
Wastegate:Without Wastegate
Bearing: Journal Bearing
Thrust bearing: 270 Degrees
Turbo Type: Individual
Condition: Brand New

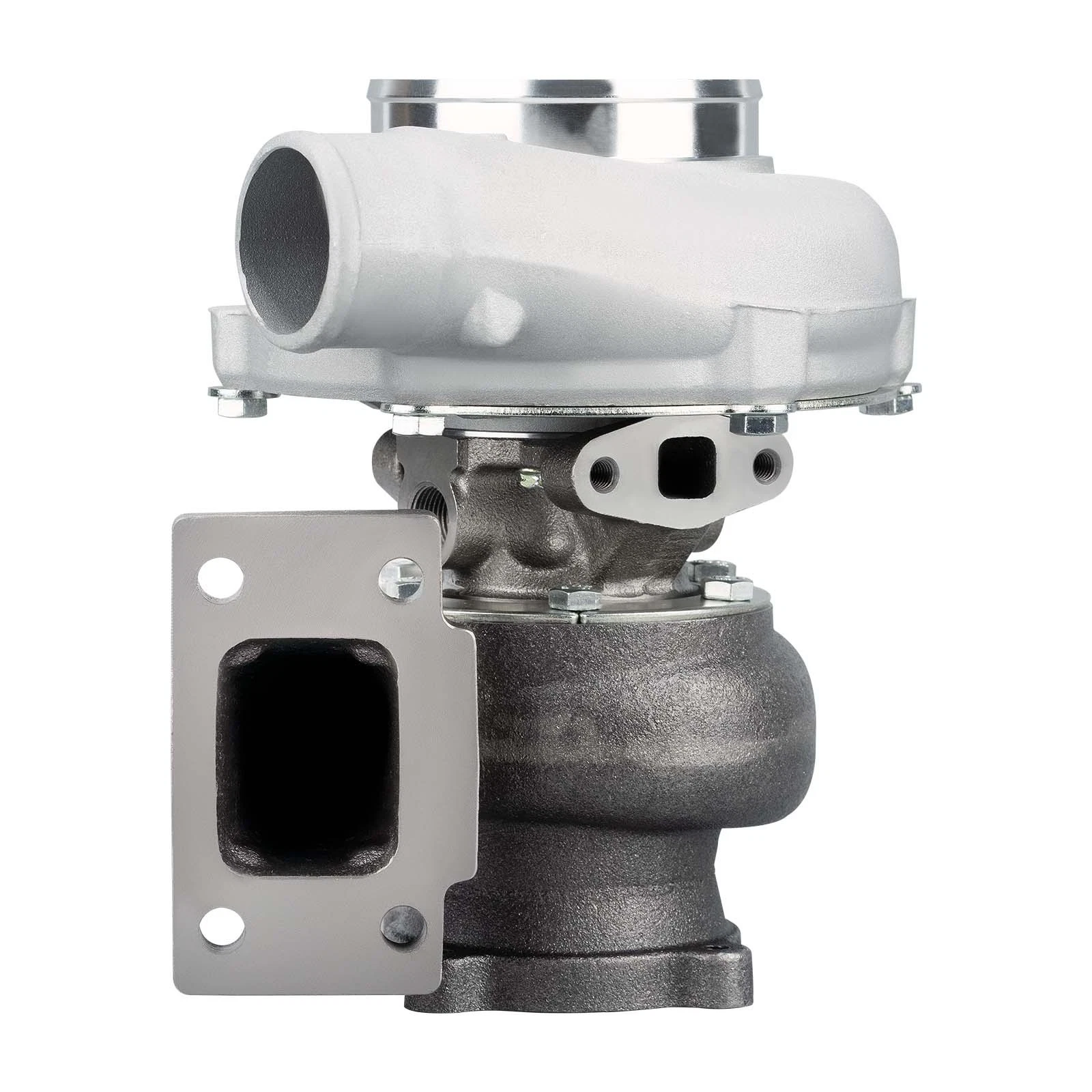

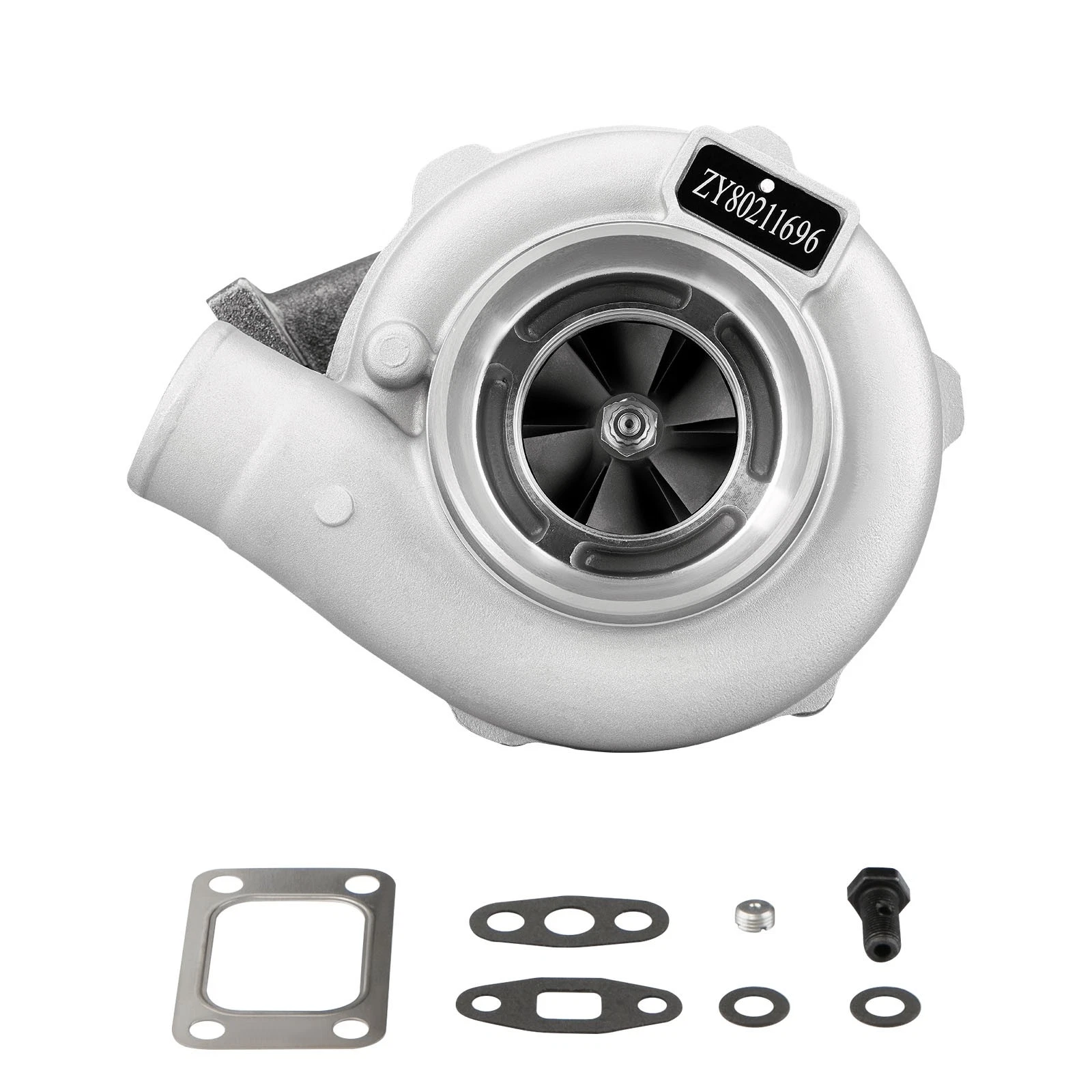

Accessories: You will get exactly as shown in the picture above

Notice
Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
Make sure the oil drain line is lower than the turbo itself.
Gasoline car must install a water cooling device to avoid overheating.
Ensure exhaust outlet are well sealed by welding
The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

SKU MTV-maX-141
Brand MAX
Shipping Weight 8.7500kg
Shipping Width 0.280m
Shipping Height 0.380m
Shipping Length 0.240m
Shipping Cubic 0.025536000m3
