Description

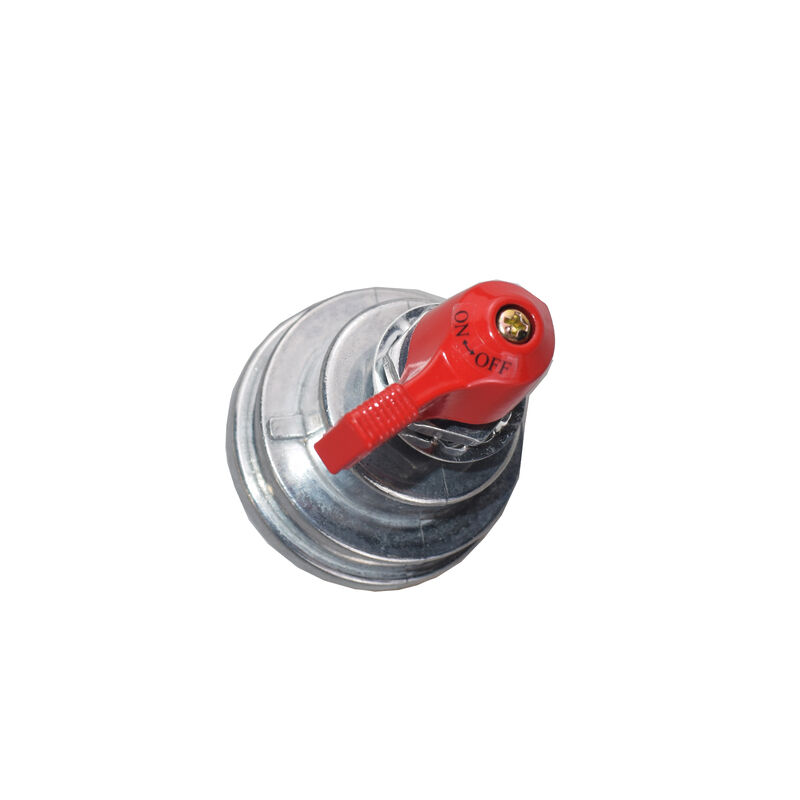

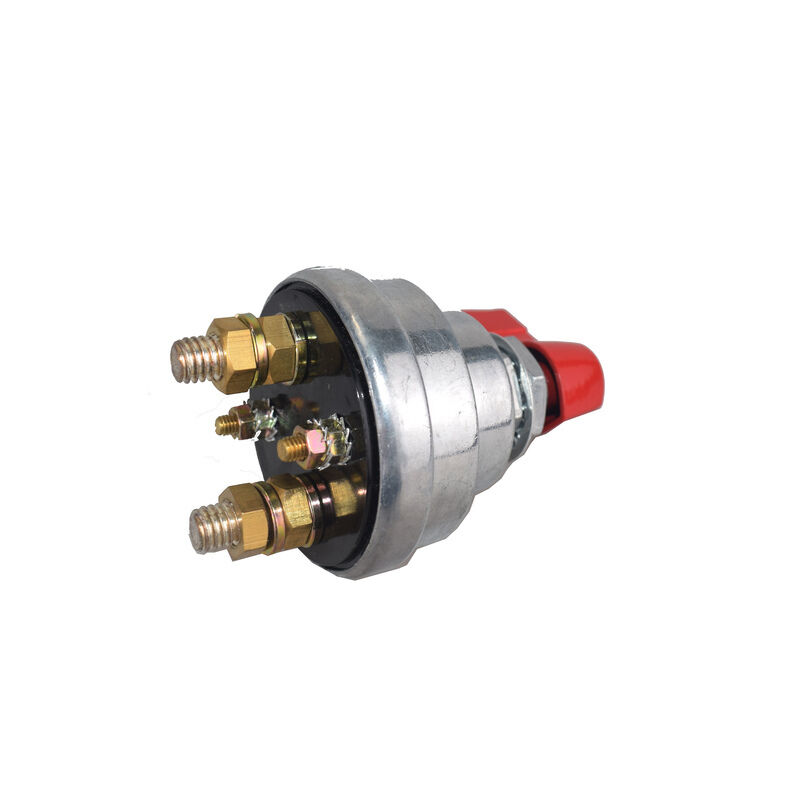

This Master Disconnect Switch Is Made To Fit For Alternator/Generator Field Circuits And Features An Indexing Post To Help Align The Switch And Prevent Rotation. It Has A Mount Opening With A Diameter Of 19mm. Among The Wide Range Of Narva Battery Switches, You'll Be Able To Find One Perfect For Your Own Desired Application. They Are All Made By High-Quality,Reliable And Longlasting Material.



Specification

Mounting opening: 19mm Diameter

Large Terminals:

1000A at 12V For 20 Seconds
500A at 24V For 20 Seconds
180A at 12V Continuous Load Max
90A at 24V Continuous Load Max
Small Terminals:
20A at 12V Continuous Load Max
10A at 24V Continuous Load Max



OEM Number

61075



Package

1 x Battery Master Switch Lever

SKU BMSL-001
Brand POWEROY
Shipping Weight 0.4000kg
Shipping Width 0.070m
Shipping Height 0.115m
Shipping Length 0.070m
Shipping Cubic 0.000563000m3
Assembled Length 0.070m
