Fitment
For UTE Canopies, RV's, Caravans, Motor homes, Horse Floats, etc.

Specifications

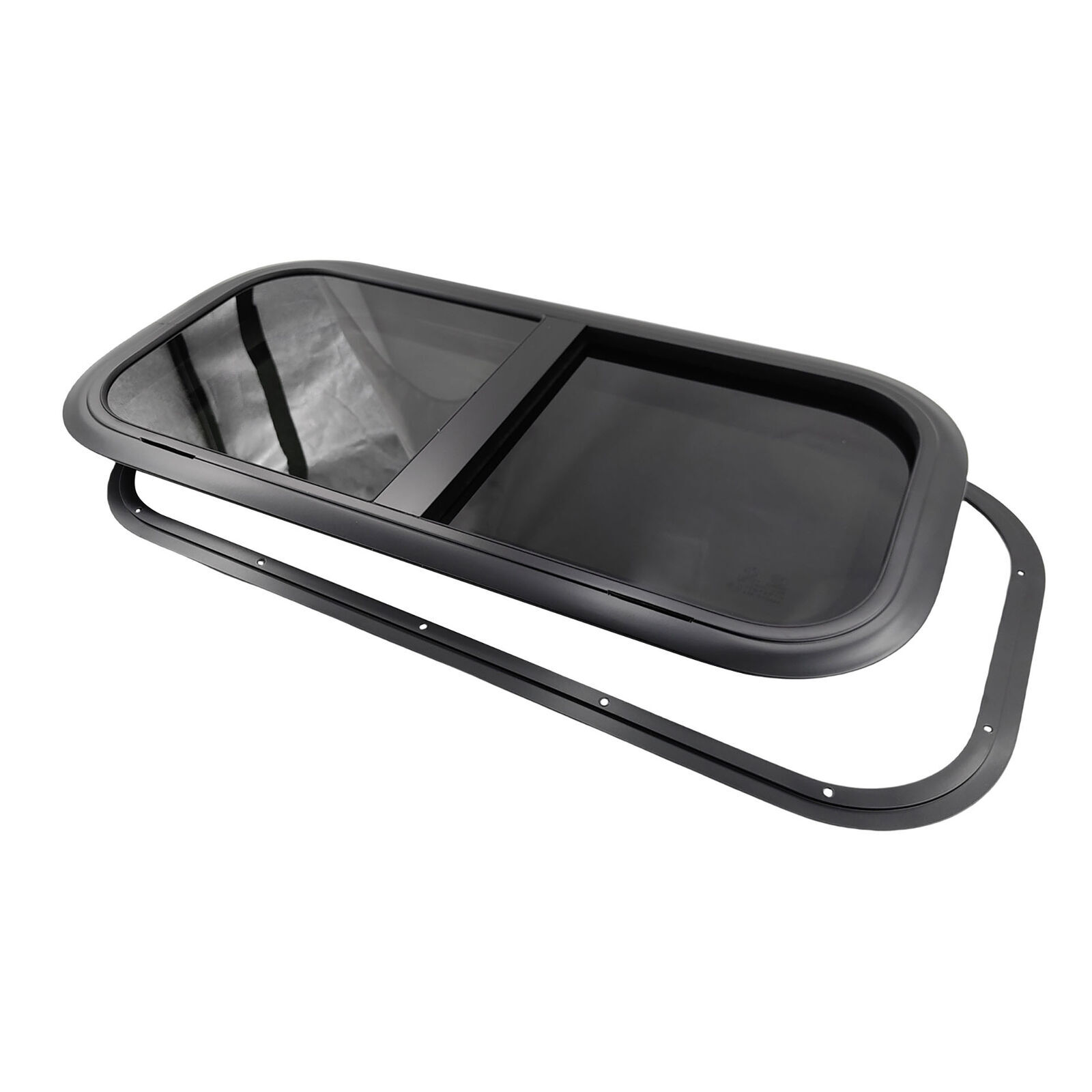

Main Material: Alloy Frame, Tempered Glass (ADR Approved Light Tint)

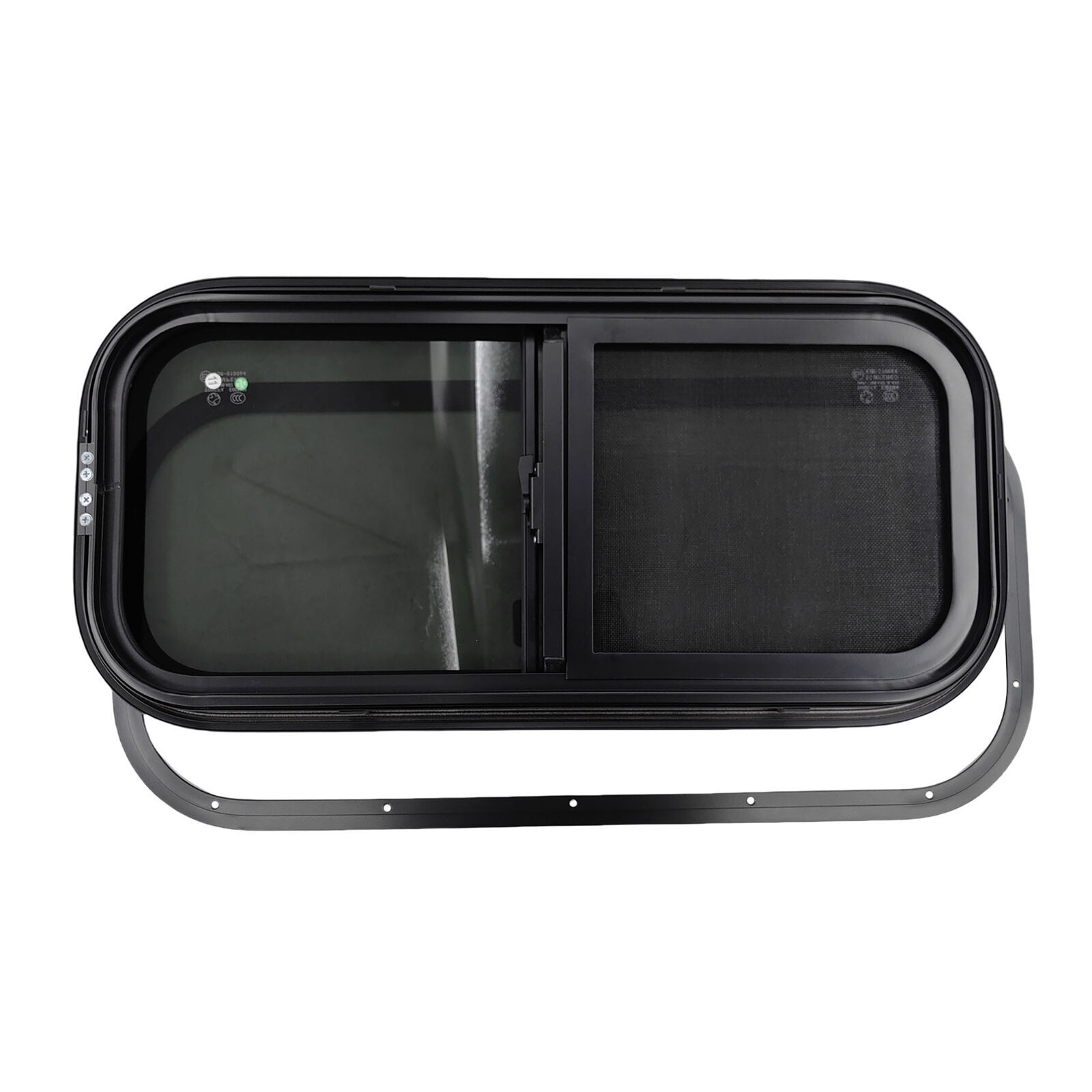

Fly Screen on one side

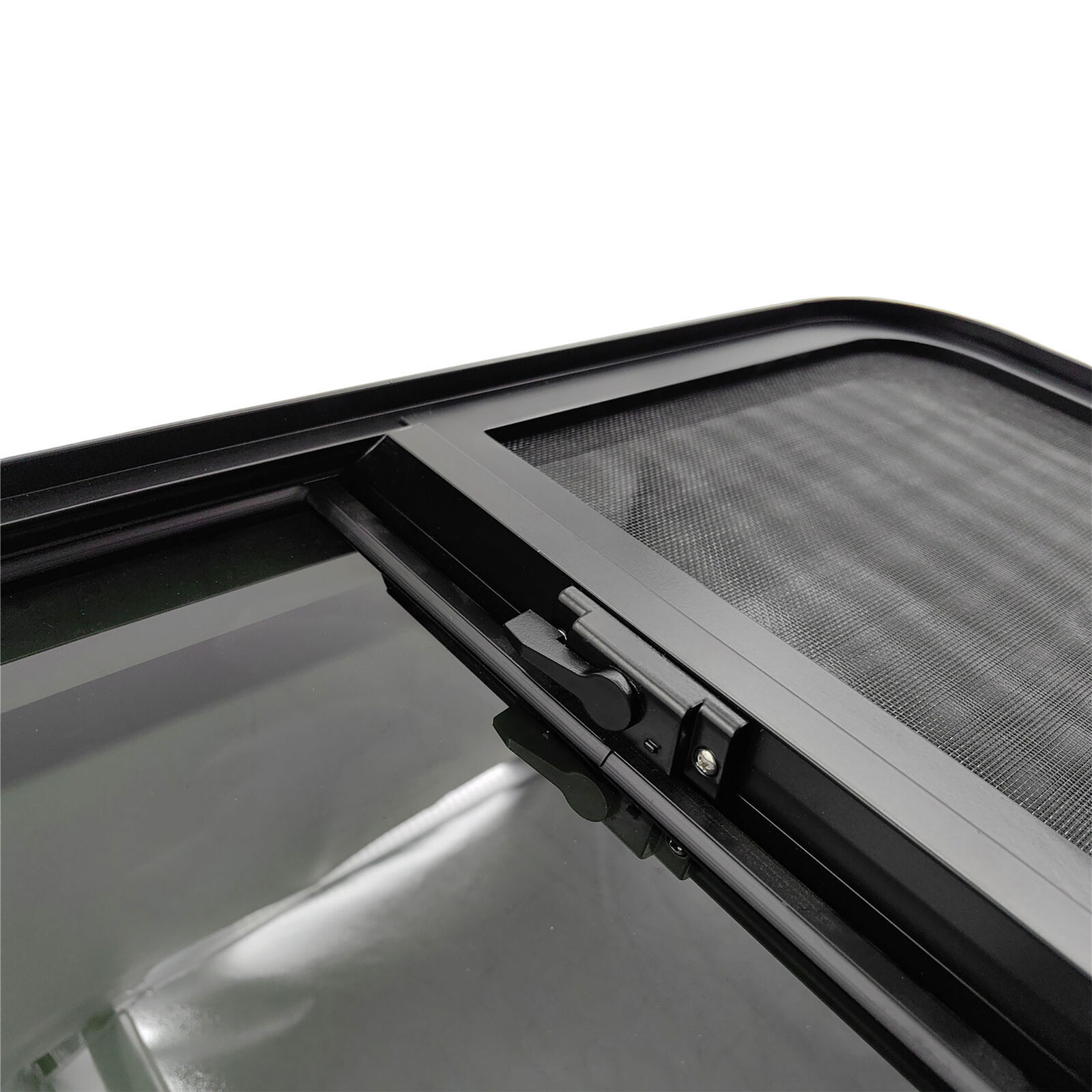

Lockable sliding window

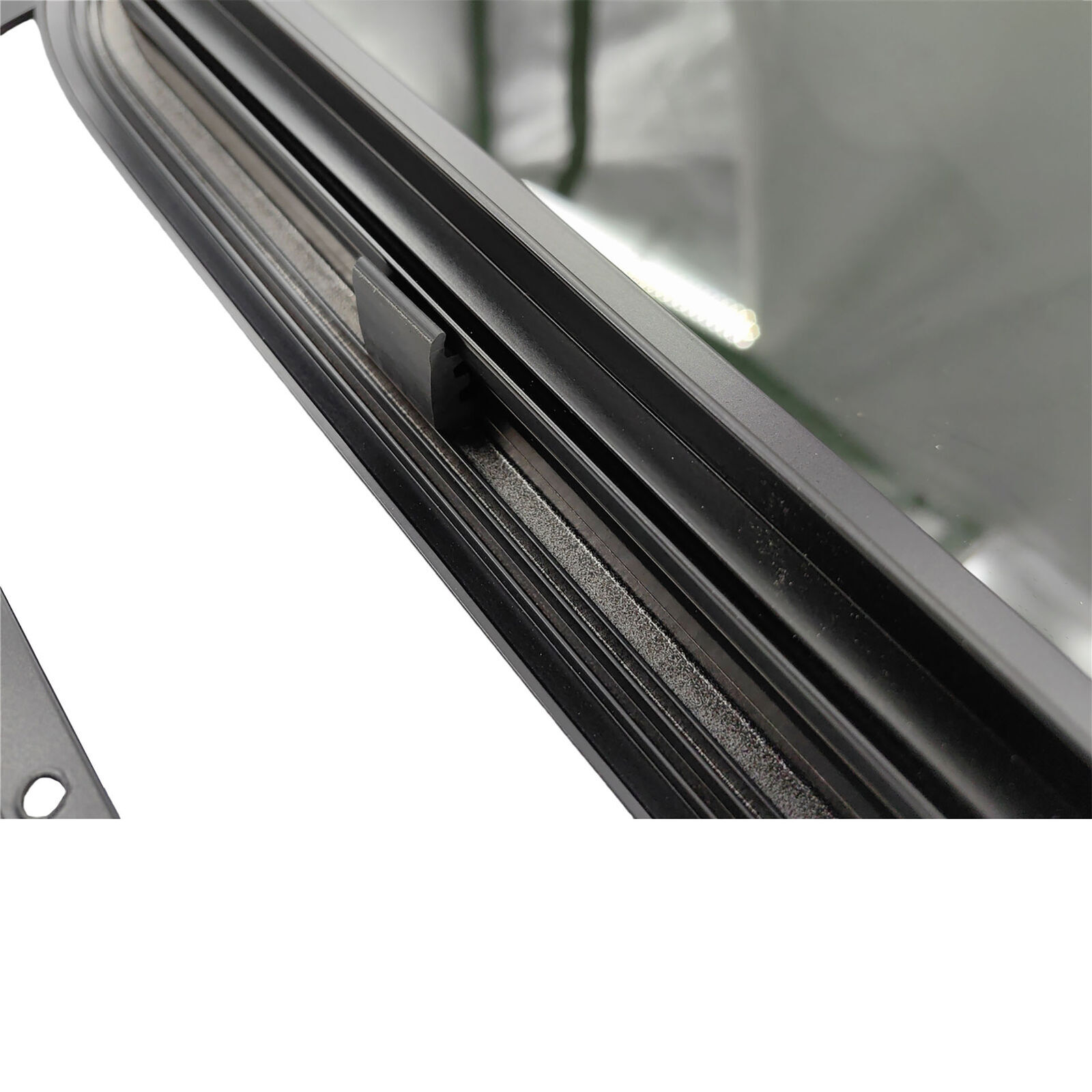

Rubber seal around the glass
ADR Compliant, comes with E-Mark

Dimensions
External size from outside: 780mm x 380mm x 45mm (W x H x D)
Internal cut-out size: 750x350mm (W x H)
Overall window depth:45mm
Window thickness: 4mm
Rounded Corner Radius: R100mm

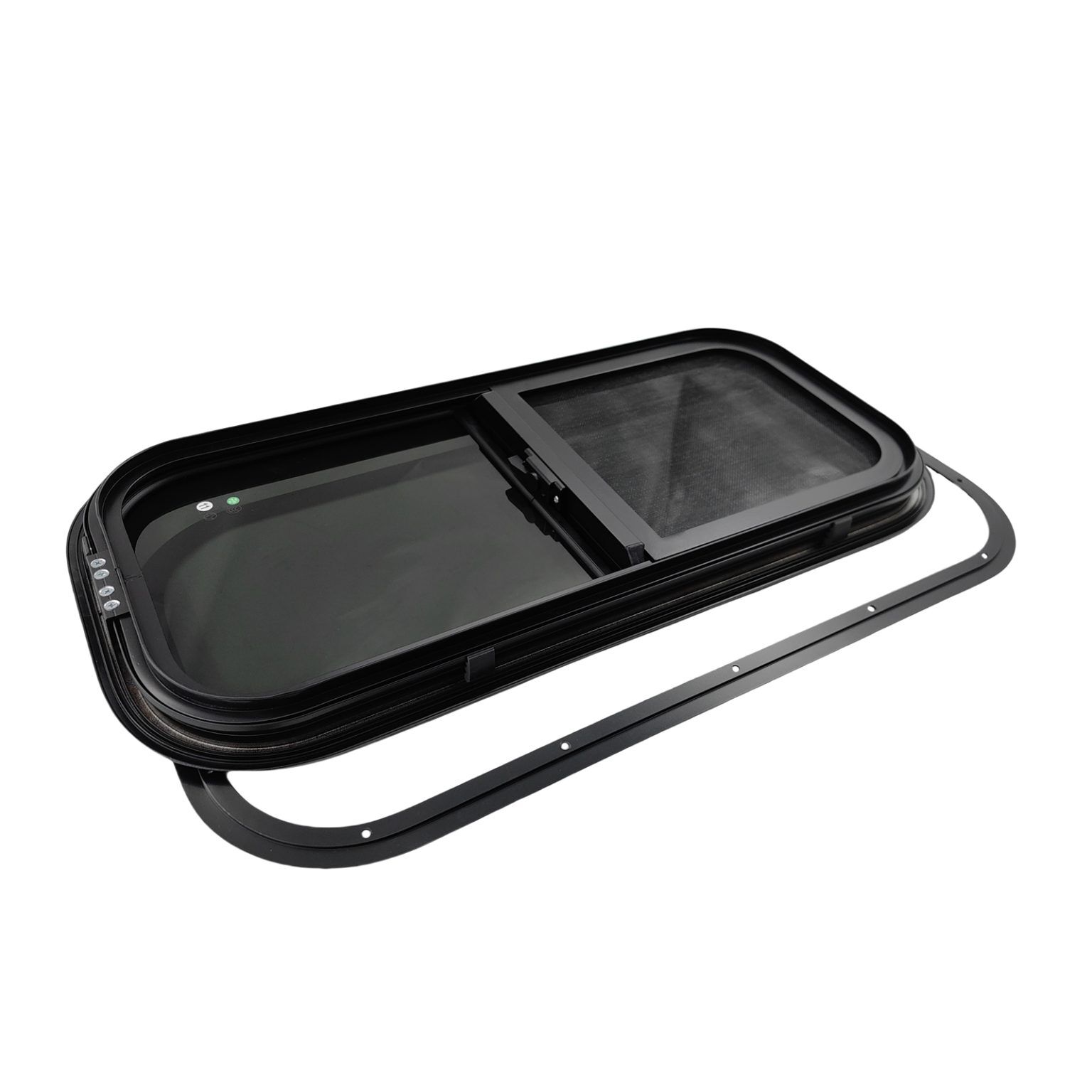

Alloy Internal Bracket size: 772 x 370 x 25 mm (W x H x D)

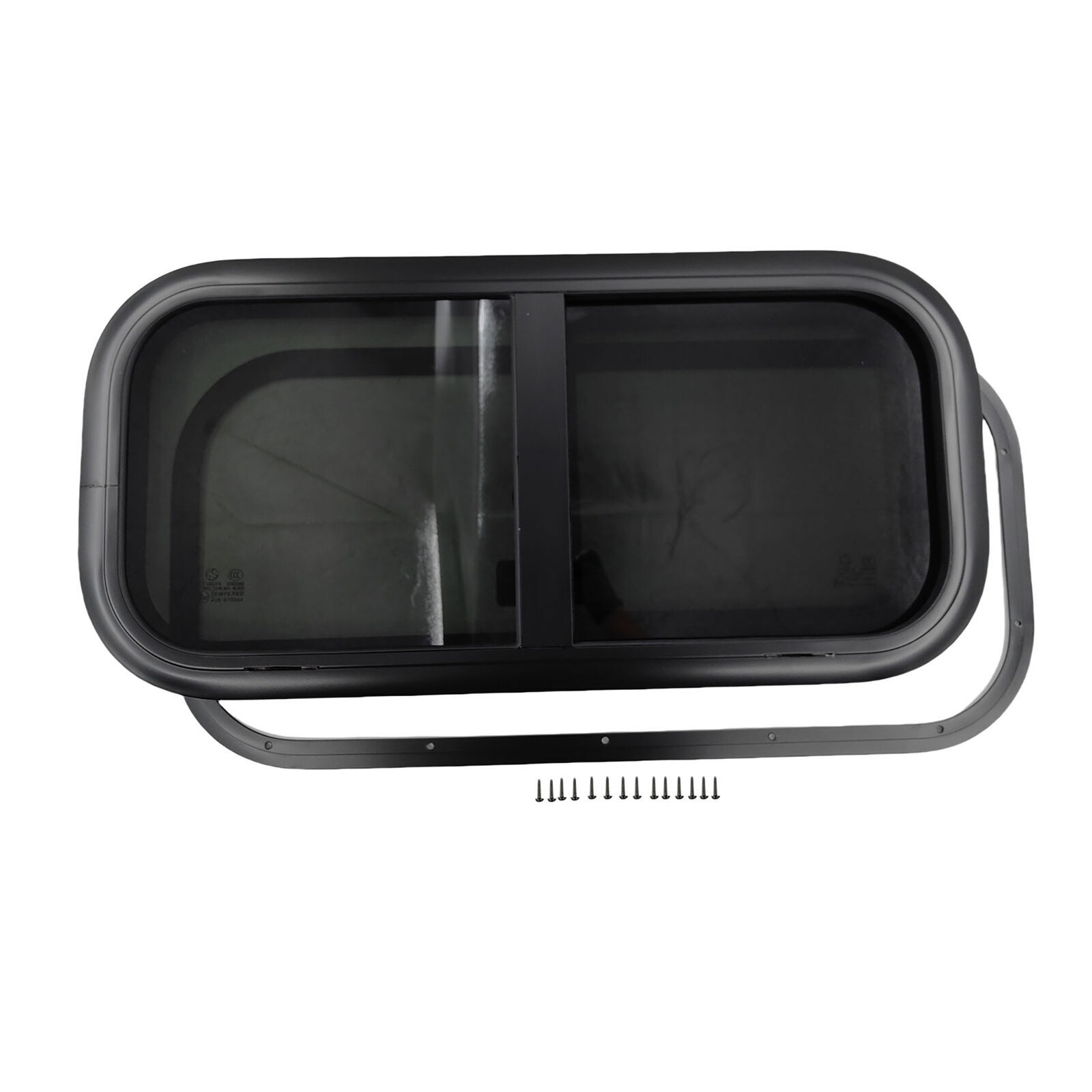

Package:1 Set Of RV Window

Installation guide
1.Make the cut-out for the window first, make sure you test fit before actually fitting it.

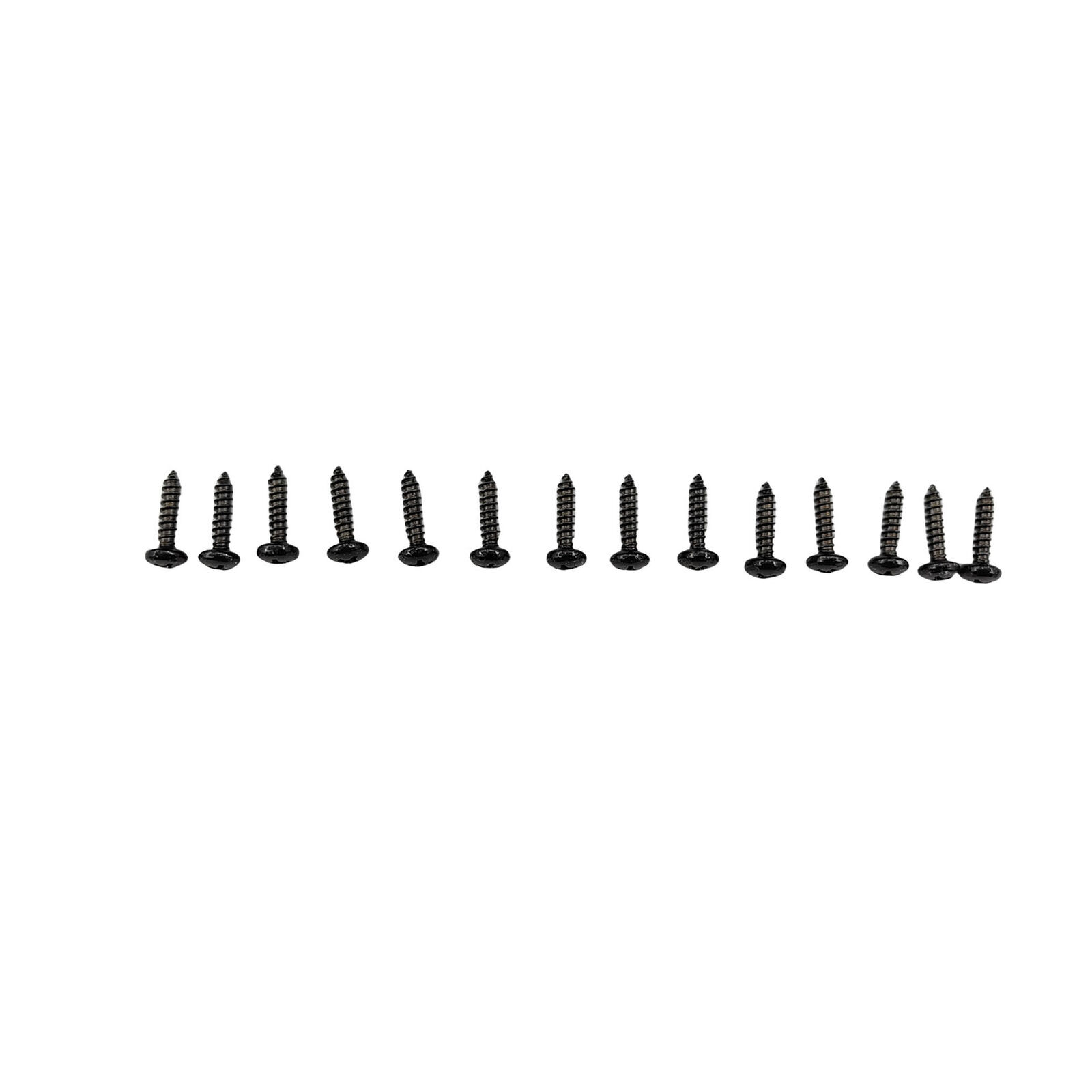

2.Glue the window to the surface, screw the alloy bracket to the window (through the canopy sheet), with quality sealant for water proof.

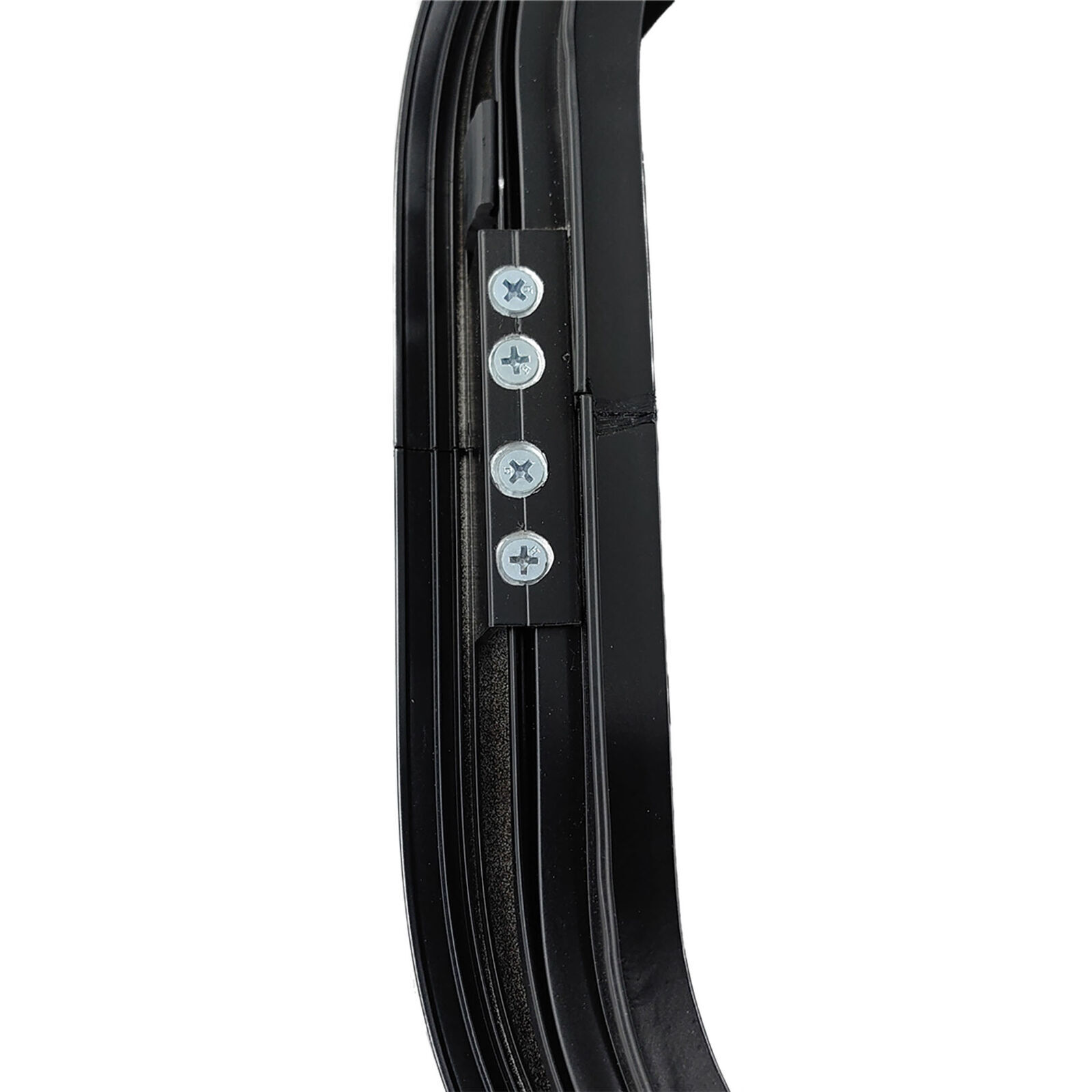

3.Please note that the back aluminium bracket is welded due to transport purposes, please cut it open on where the bottom welding seam is prior to screwing it into the channel of the window.

Note
1. Instruction is not included and professional installation is highly recommended.
2. If you have any questions about the window, please feel free to contact us.

SKU UTEW-001
Shipping Weight 6.0000kg
Shipping Width 0.800m
Shipping Height 0.080m
Shipping Length 0.420m
Shipping Cubic 0.026880000m3
