Fitment
For Fiat 500 2007-present
For Fiat 500 Abarth 2008-present
For Fiat Ecobasic concept car 1999
For Fiat Panda Mk2 2003-2012
For Fiat Panda Mk3 2011-present
For Fiat Panda Hydrogen 2006
For Ford Ka Mk2 2008-2016
For Lancia Ypsilon Mk3 2011-present
Note: The thread diameter of the front piston rod is 14mm.

Specification
Top mounts: Front and rear OE top mounts required
Damping: Non-adjustable

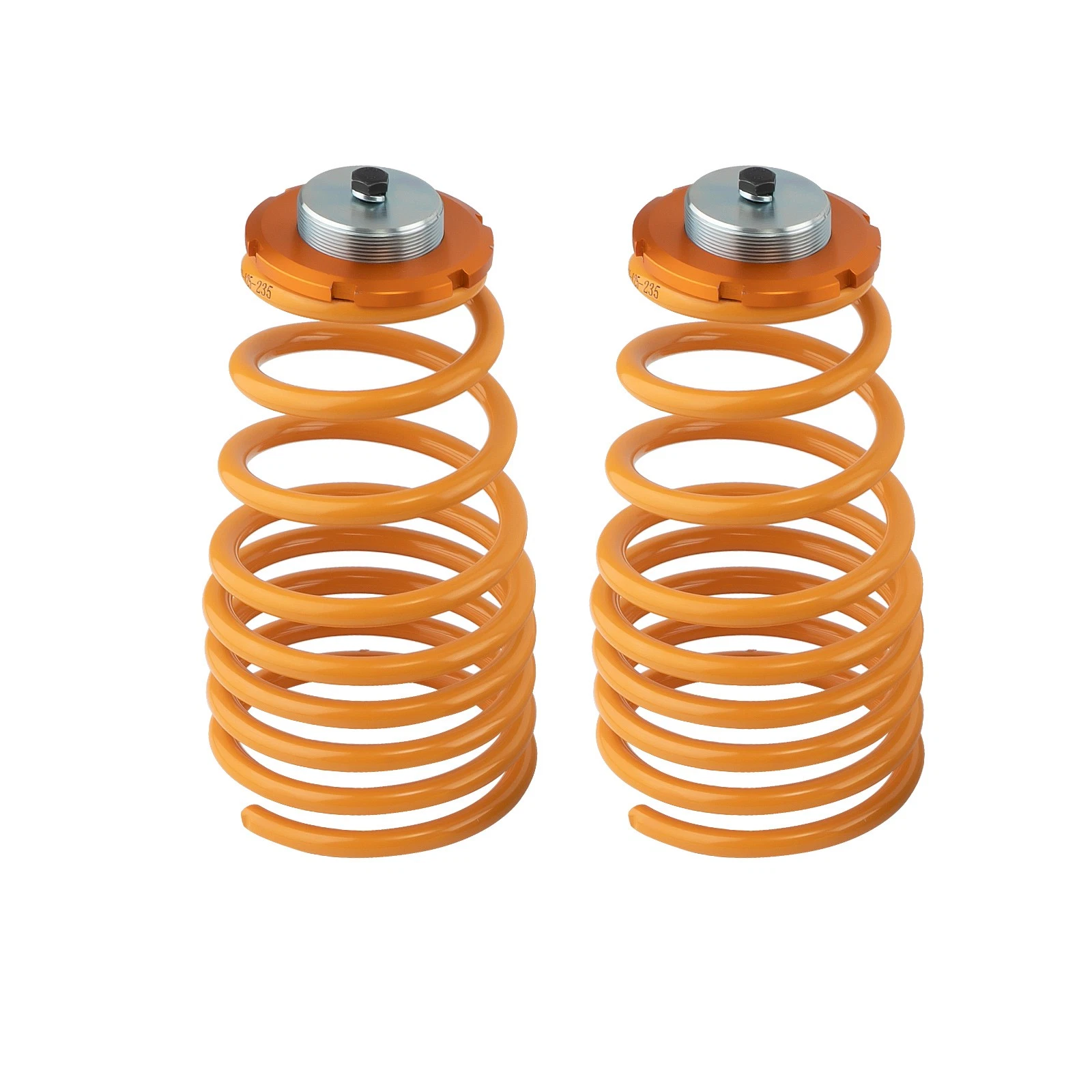

Spring rate Front: 7 kg/mm ( 392lbs/in)
Spring rate Rear: 2.5 kg/mm (140lbs/in)
Adjustable height: lowering 35mm-75mm
Coilover overall length Front: 360-530mm
Coilover overall length Rear: 265-365mm
Shock type: Twin tube
Spring Preload: No
Color: Golden spring

Package included

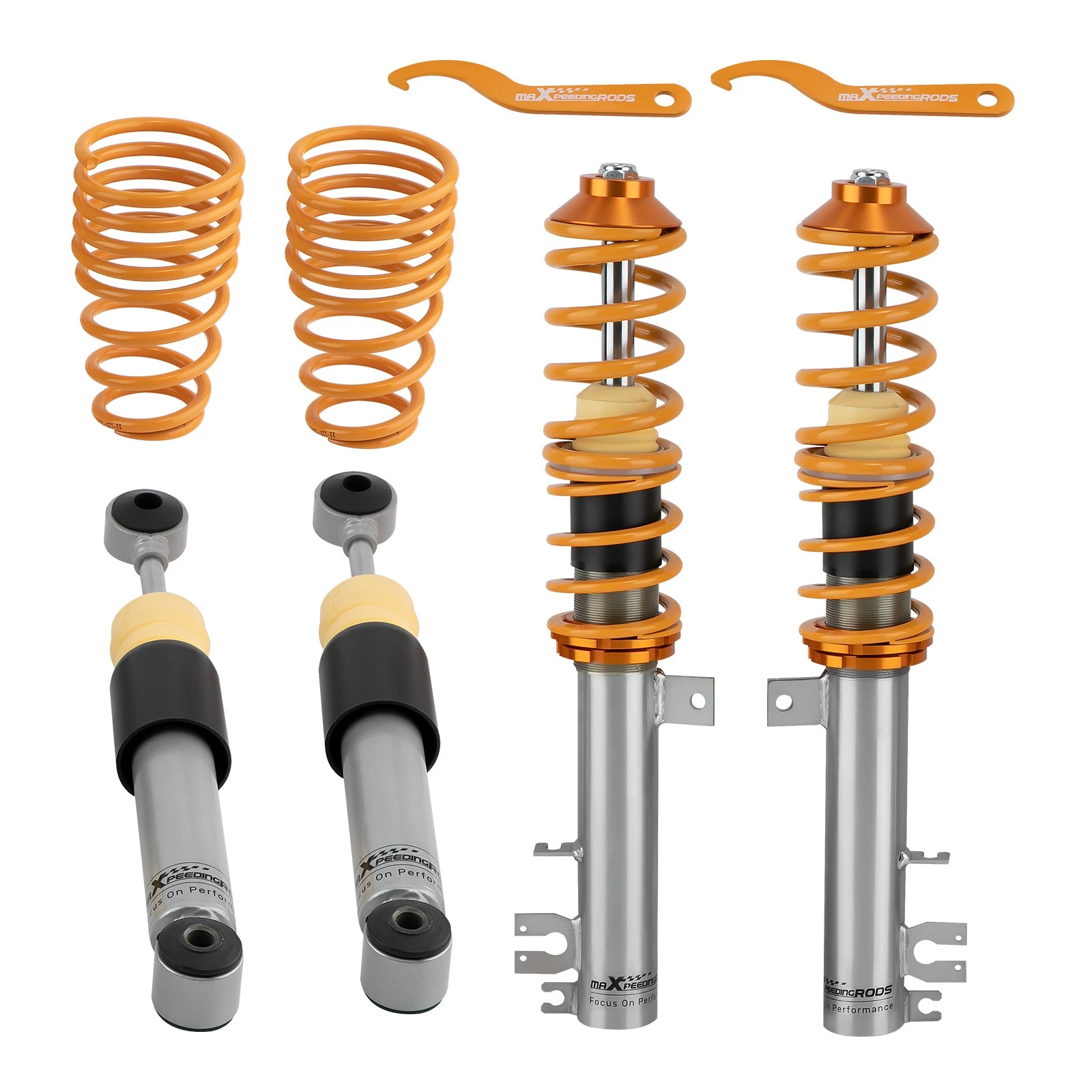

Springs and shocks for front and rear
No top mounts included

Dimension
Size: 71*51*21 cm
Weight: 19520g

Feature

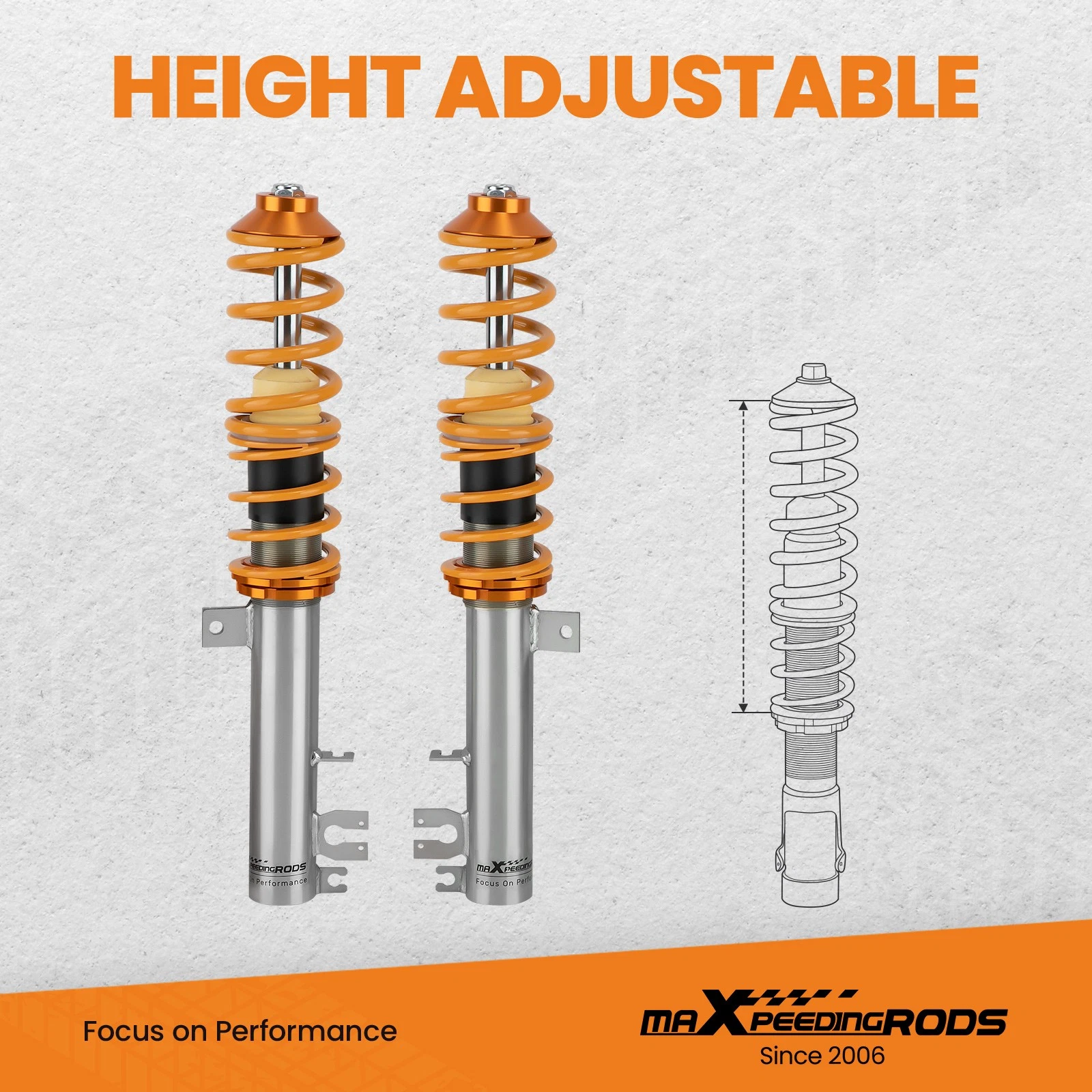

35mm-75mm lower height adjustable

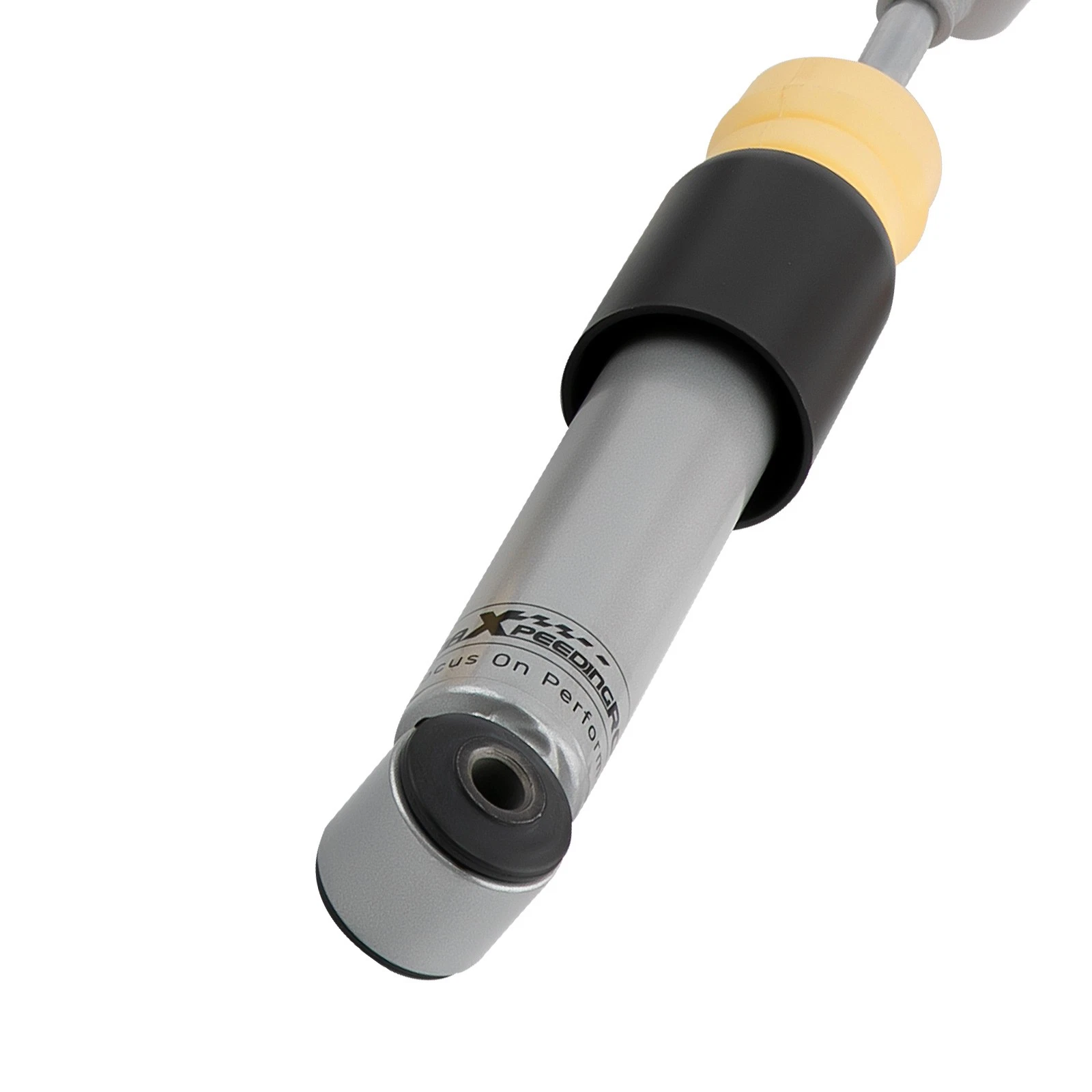

Dust boot, solid rubber bump stops

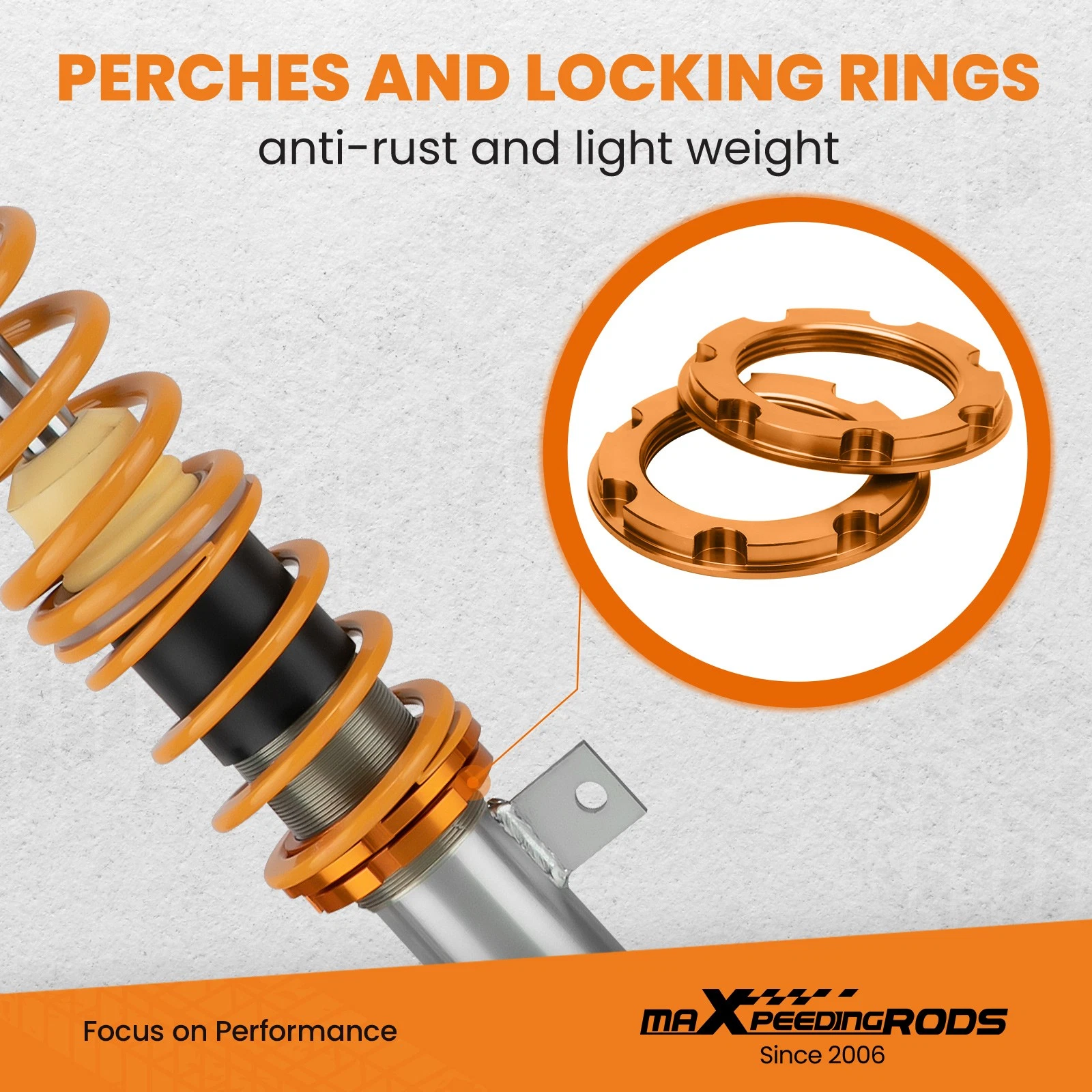

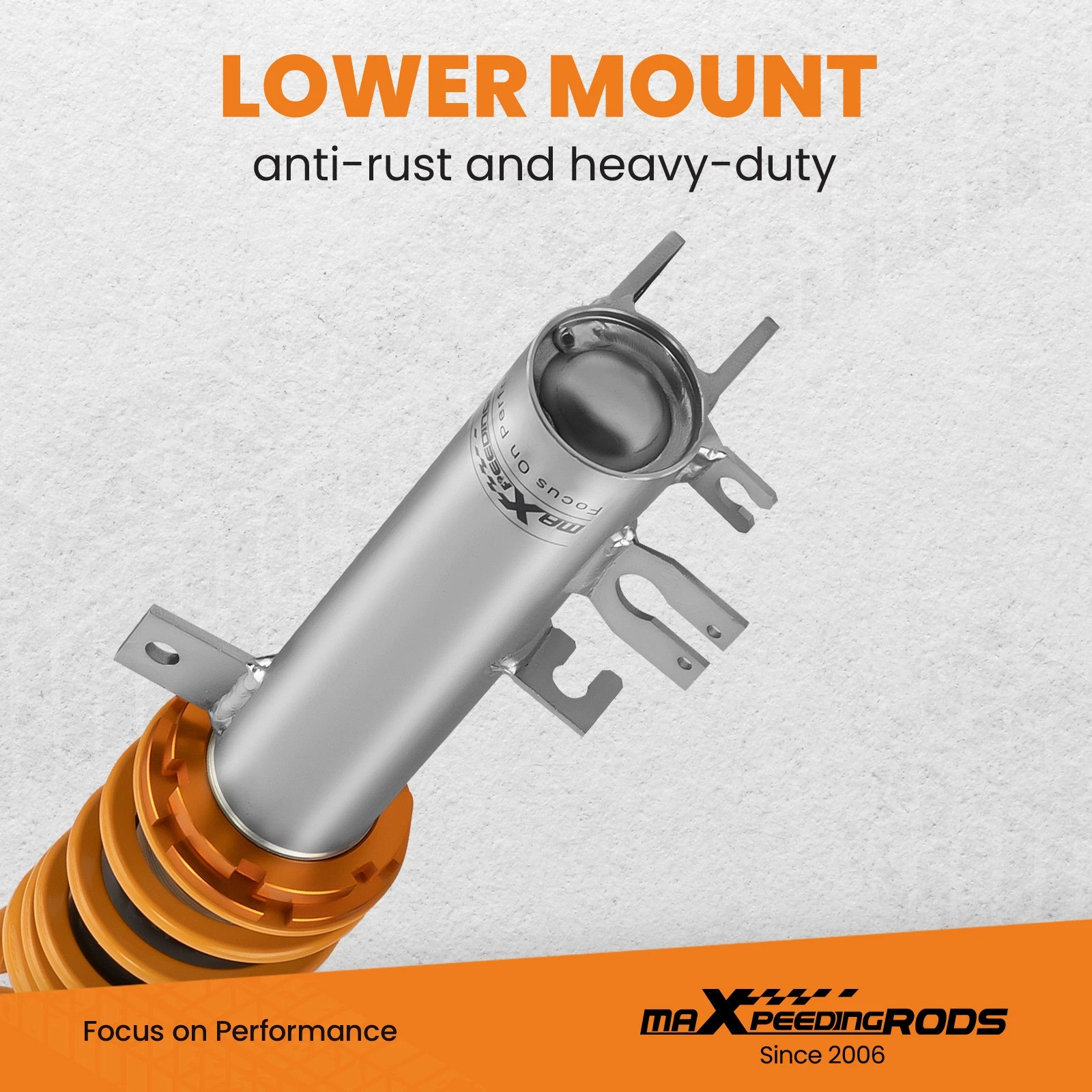

Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
Simple install, Easy to adjust.
Use the vehicle's original upper mounts (not included in our product kit).

Note
Professional installation & alignment suggested.

SKU MTV-maX-091
Brand MAX
Shipping Weight 19.5000kg
Shipping Width 0.710m
Shipping Height 0.210m
Shipping Length 0.510m
Shipping Cubic 0.076041000m3
