Fitment
For Holden Commodore VR VS Sedan 1993-1997
For Holden Commodore VR VS Wagon 1993-1997
For Holden Commodore VR VS Ute 1993-1997
Note: This model is compatible with IRS and is not a Solid Axle.

Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable: Available, 24 levels of rebound damping force
Top mounts: Front OE top mounts required
Camber adjustable: Not available
Spring Rate Front: 7 kg/mm (392 lbs/in)
Front spring inner diameter: 70.5 mm
Spring length Front: 200mm
Spring Preload advised: 7-10 mm
Shock type: Twin tube

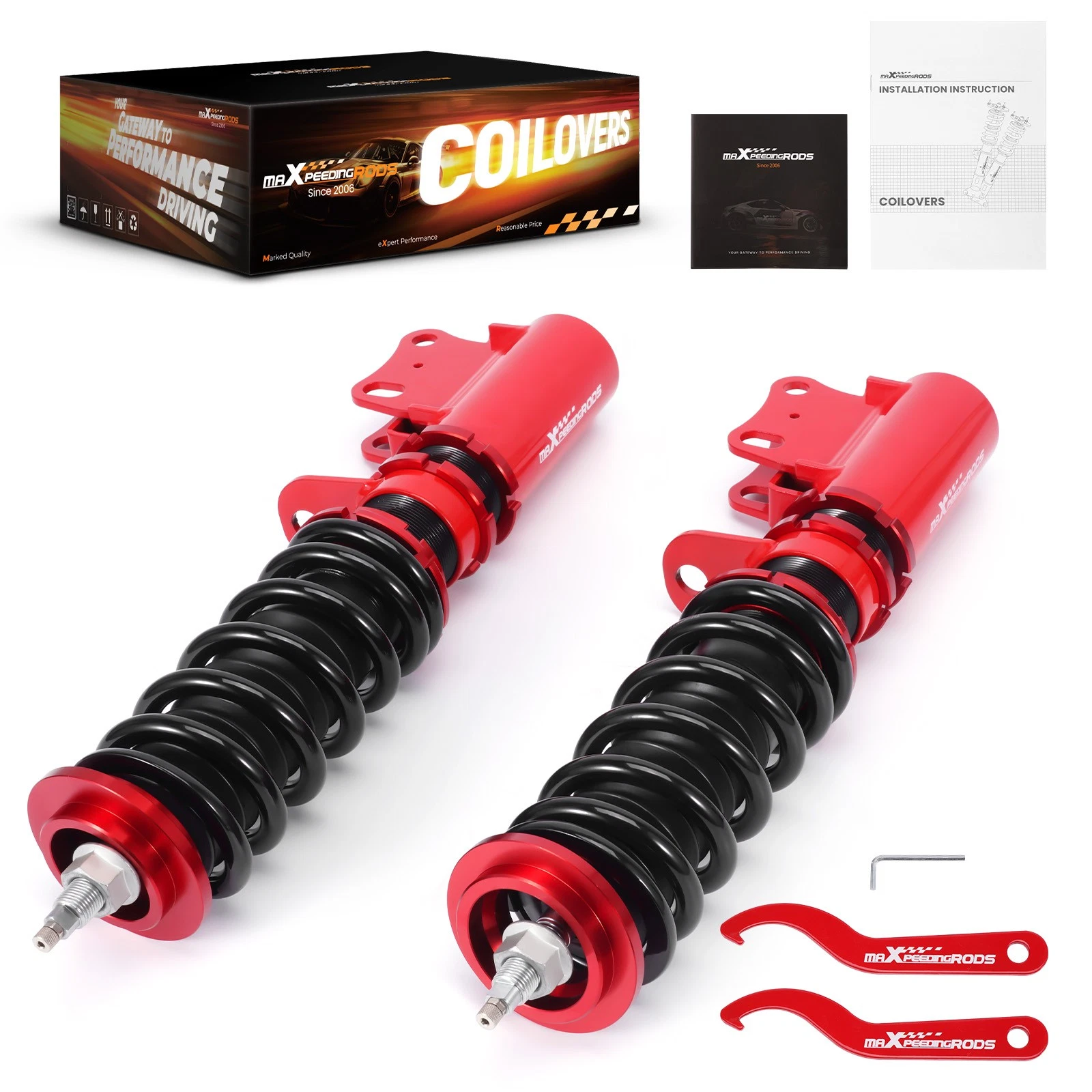

Package included

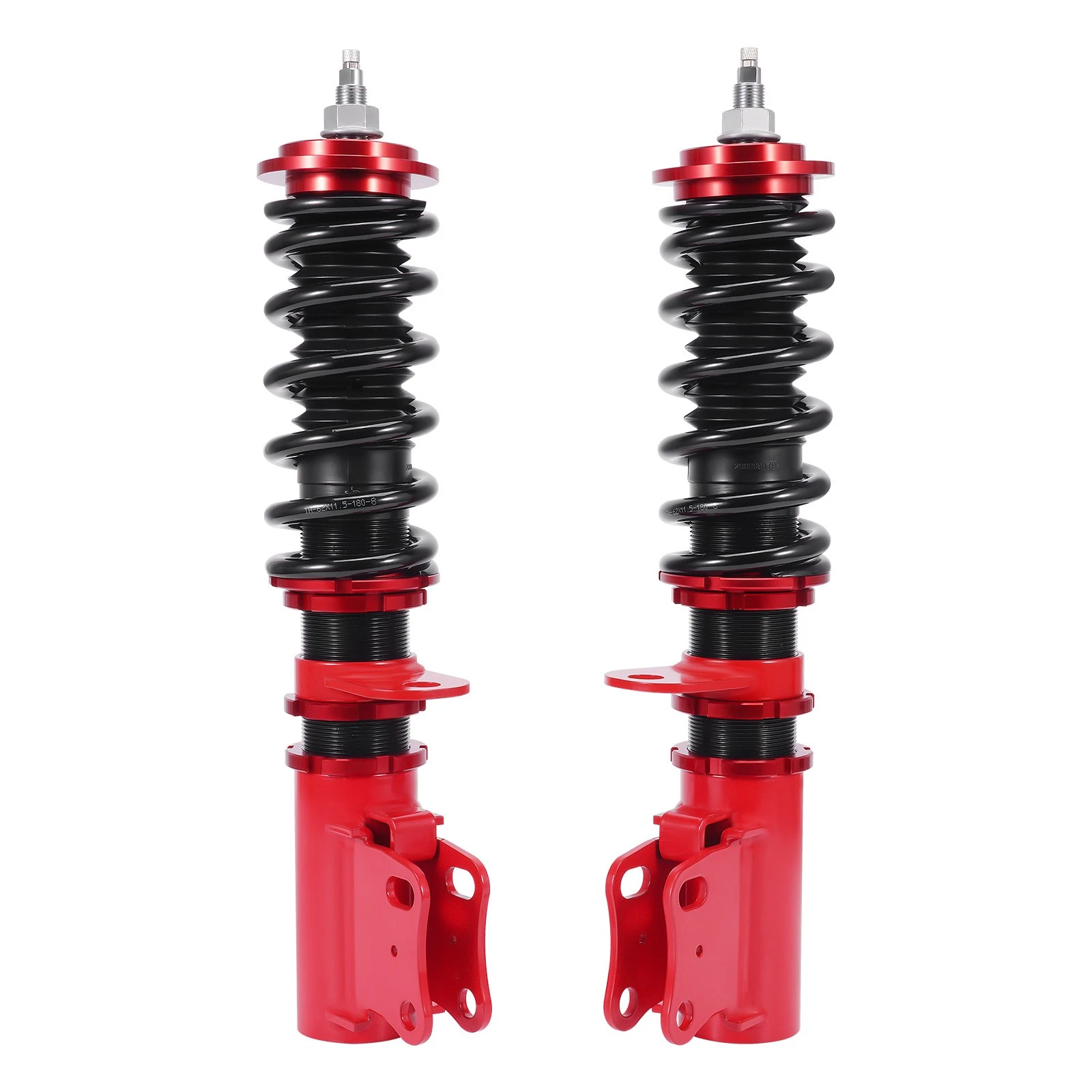

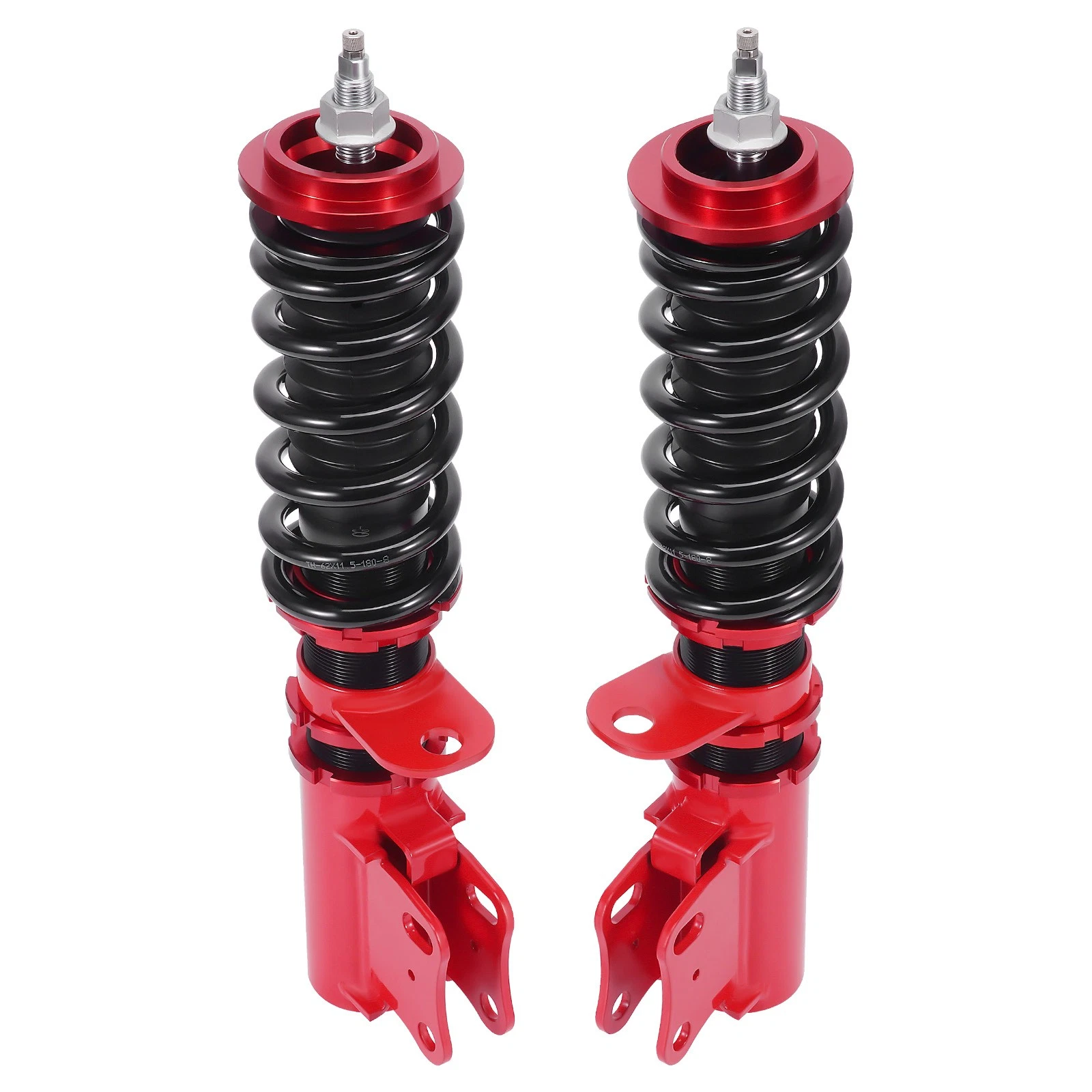

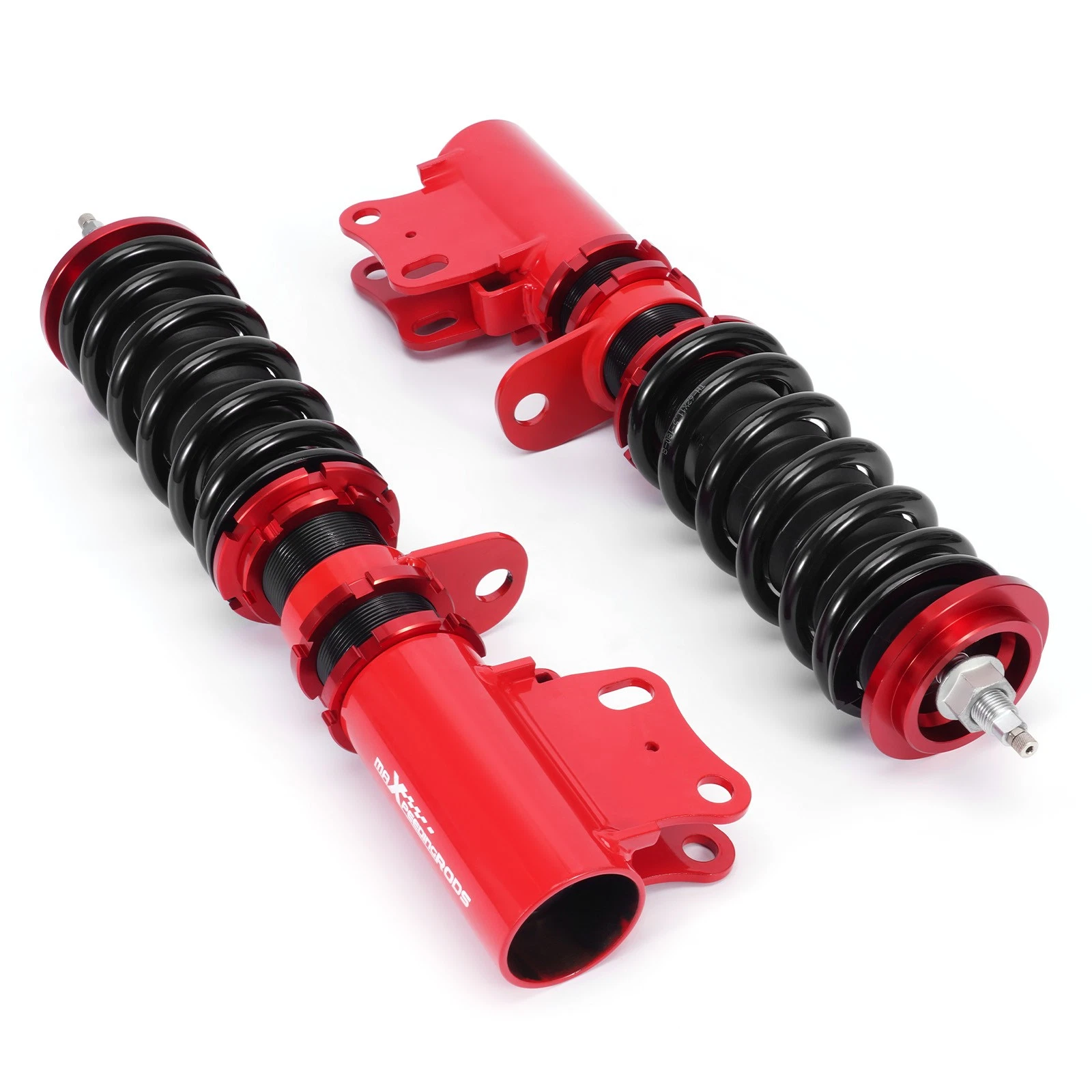

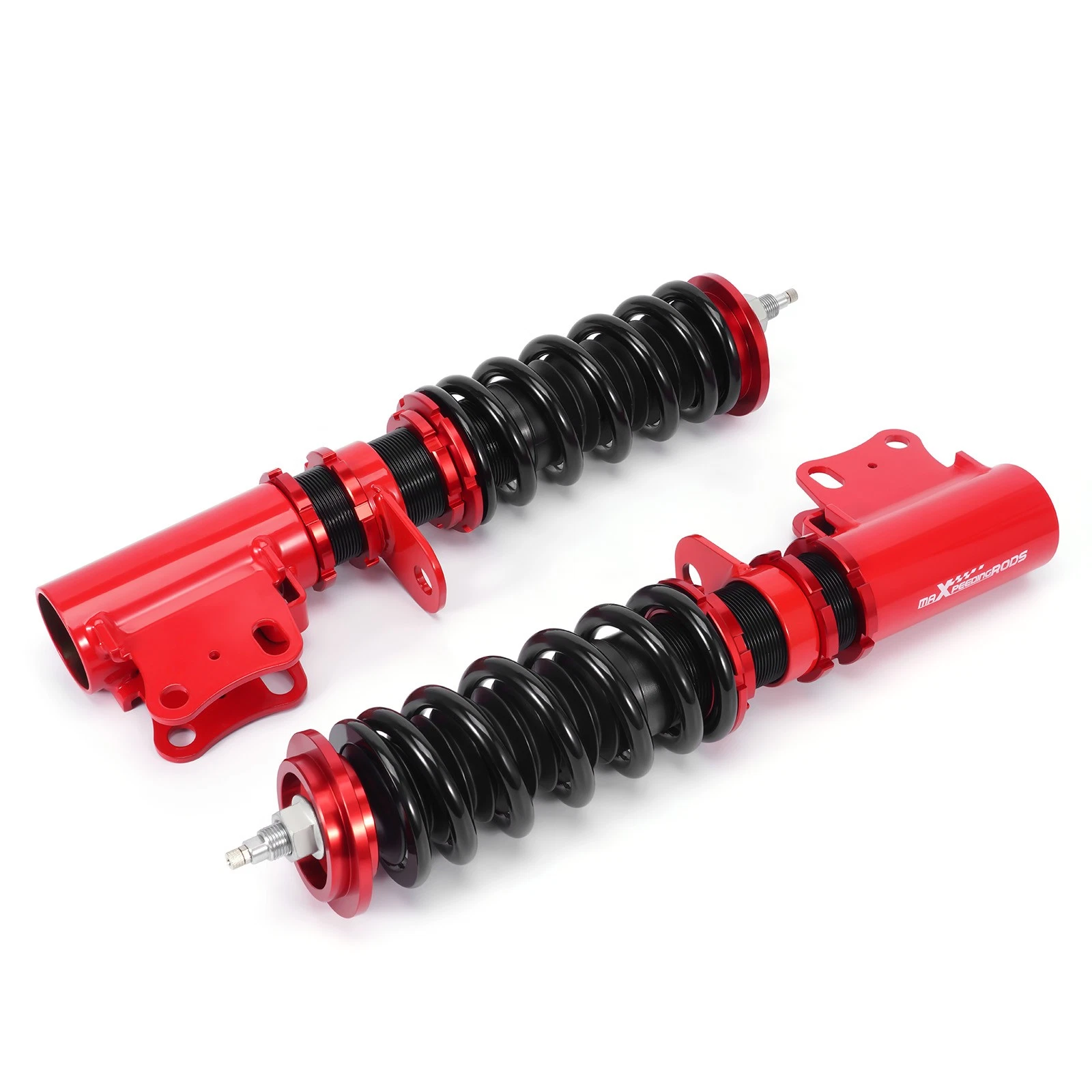

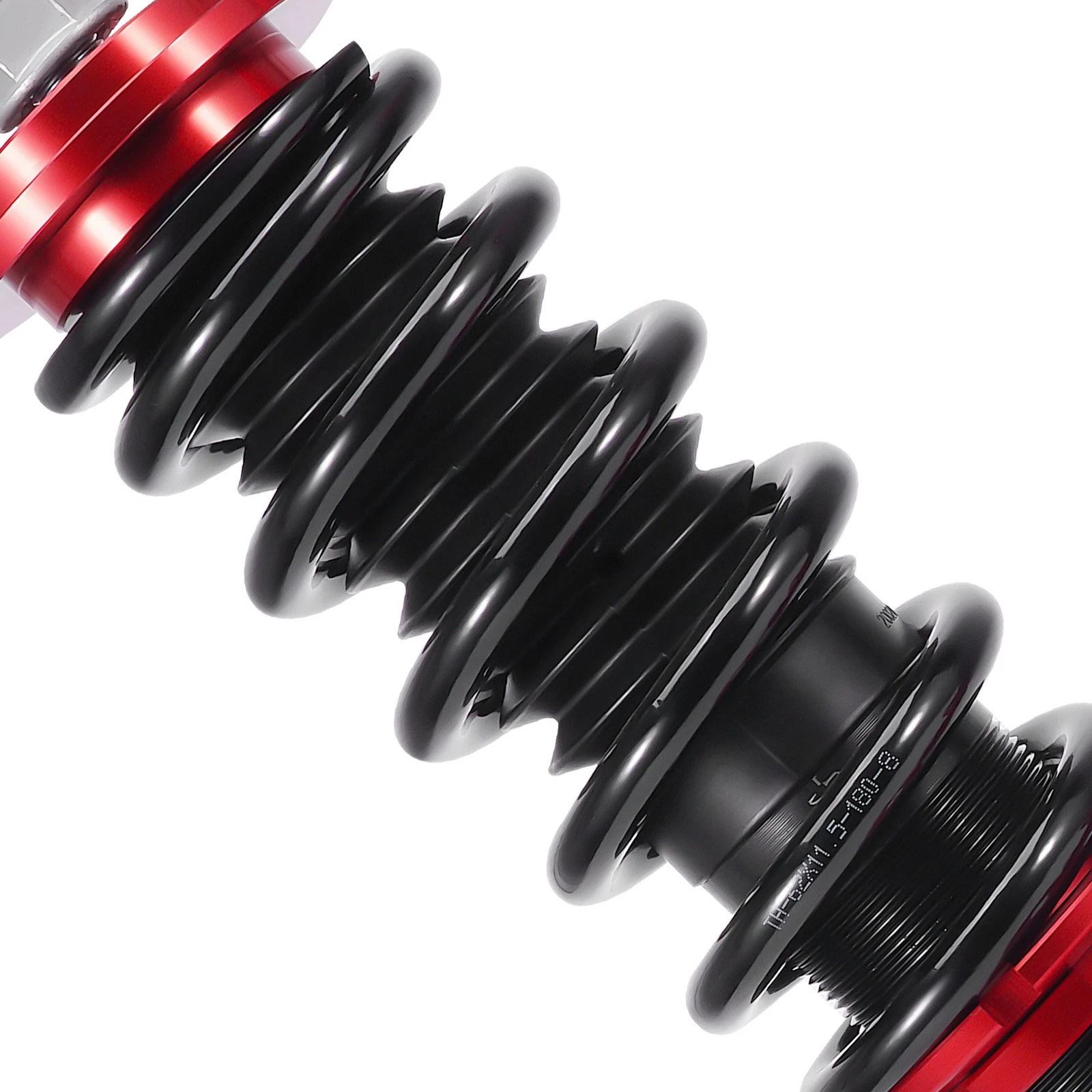

2x Front coil-overs
2x C spanners
1x Allen wrench

Note
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
