Fitment

Fit For Audi A4 B8 08/2010 - 05/2012

Fit For Audi SQ5 8R 09/2012-05/2016

Fit For Audi Q5 8R 08/2010-05/2016



Specification

Bushing size: 75MM

Ball Joint Taper Size: 17MM (Curved Style)

Position (A) — Tip Of The Ball Stud Taper (Connected To The Wheel Spindle):

8K0407693AD: The Tip Cone Diameter Is Thickened To 17 MM (The Standard Technical Value Is 16.9 MM)

Consequence: If The Horn Aperture Doesn't Match, It Either Won't Fit At All Or Will Wobble Badly.

Position (B) —Ball Pin Locking Thread (At The Fixed Nut):

8K0407693AD: Using M14 × 1.5 Threads, The Bolt Is Noticeably Thicker And Has Stronger Shear Resistance.

Position (C) — Rear Large Rubber Bushing/Hydraulic Bushing (Connecting Subframe End):

8K0407693AD: The Rubber Big Head's Total Diameter Has Increased To 75 MM, The Internal Hydraulic Oil Chamber Is Bigger, And The Corresponding Subframe Slot Is Noticeably Wider.



OEM Part Number

8K0407693AD



Note: Our This Type Is A Little Bit Different From Our FCA-AU011L, Pls Double Check The Size Before You Purchasing!!



Package

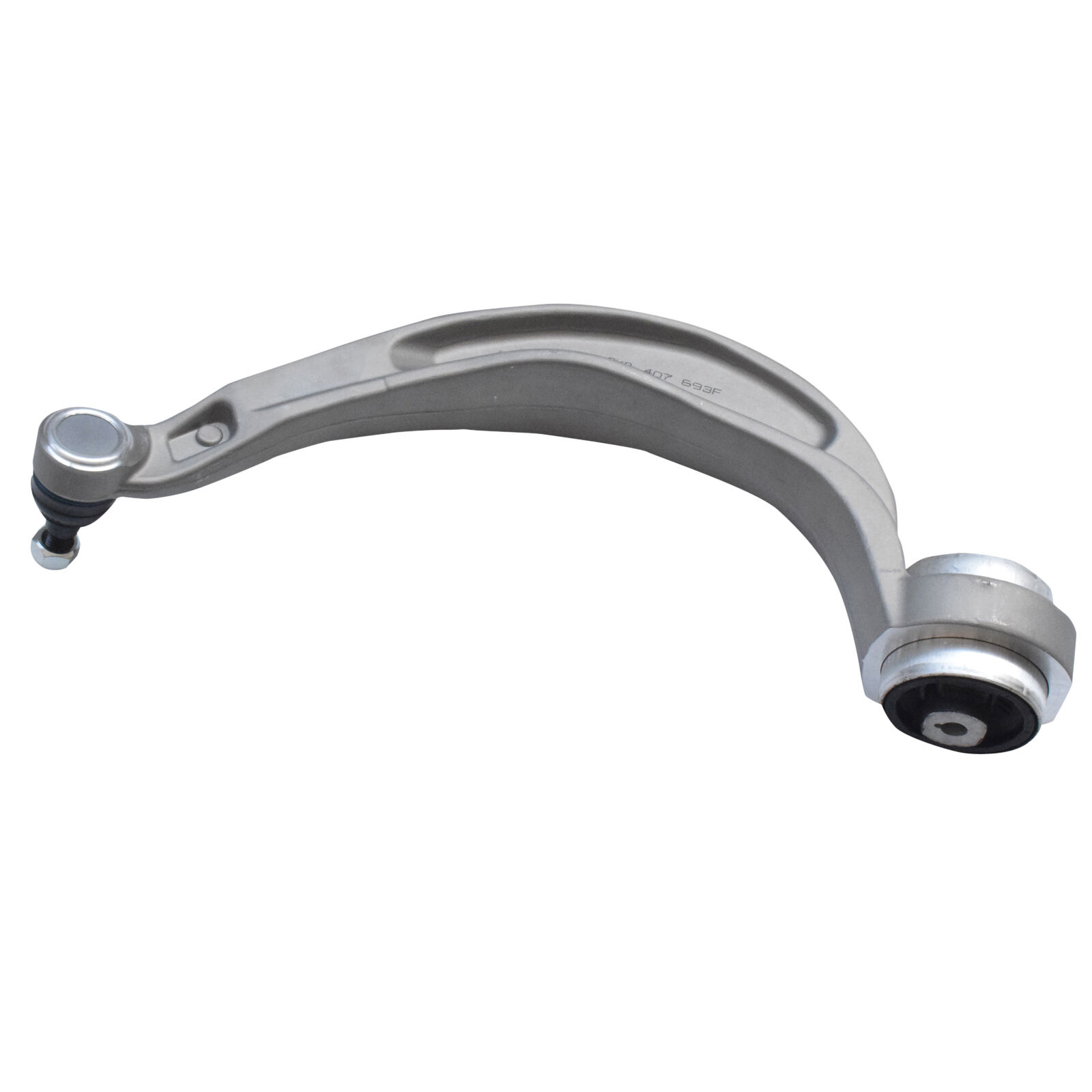

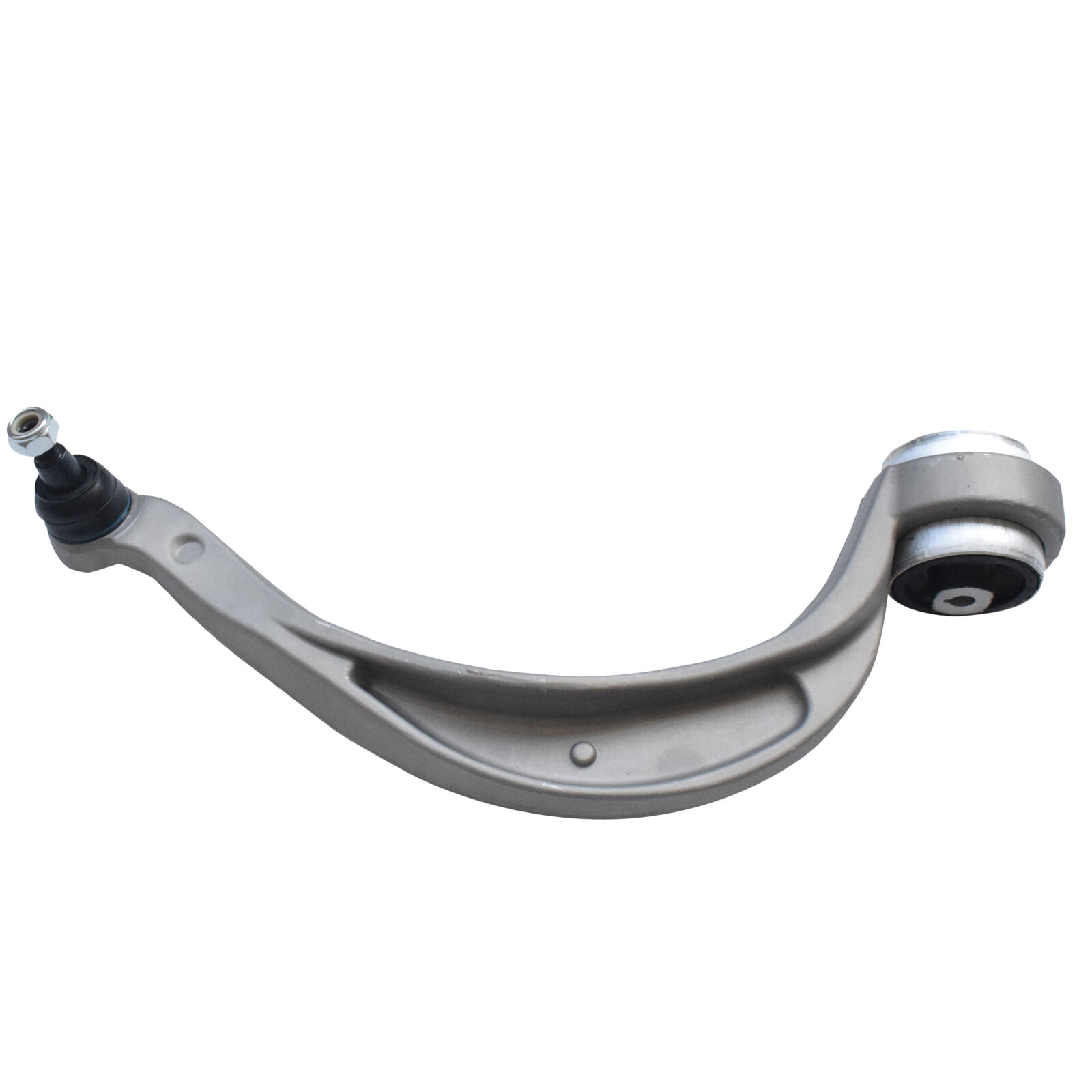

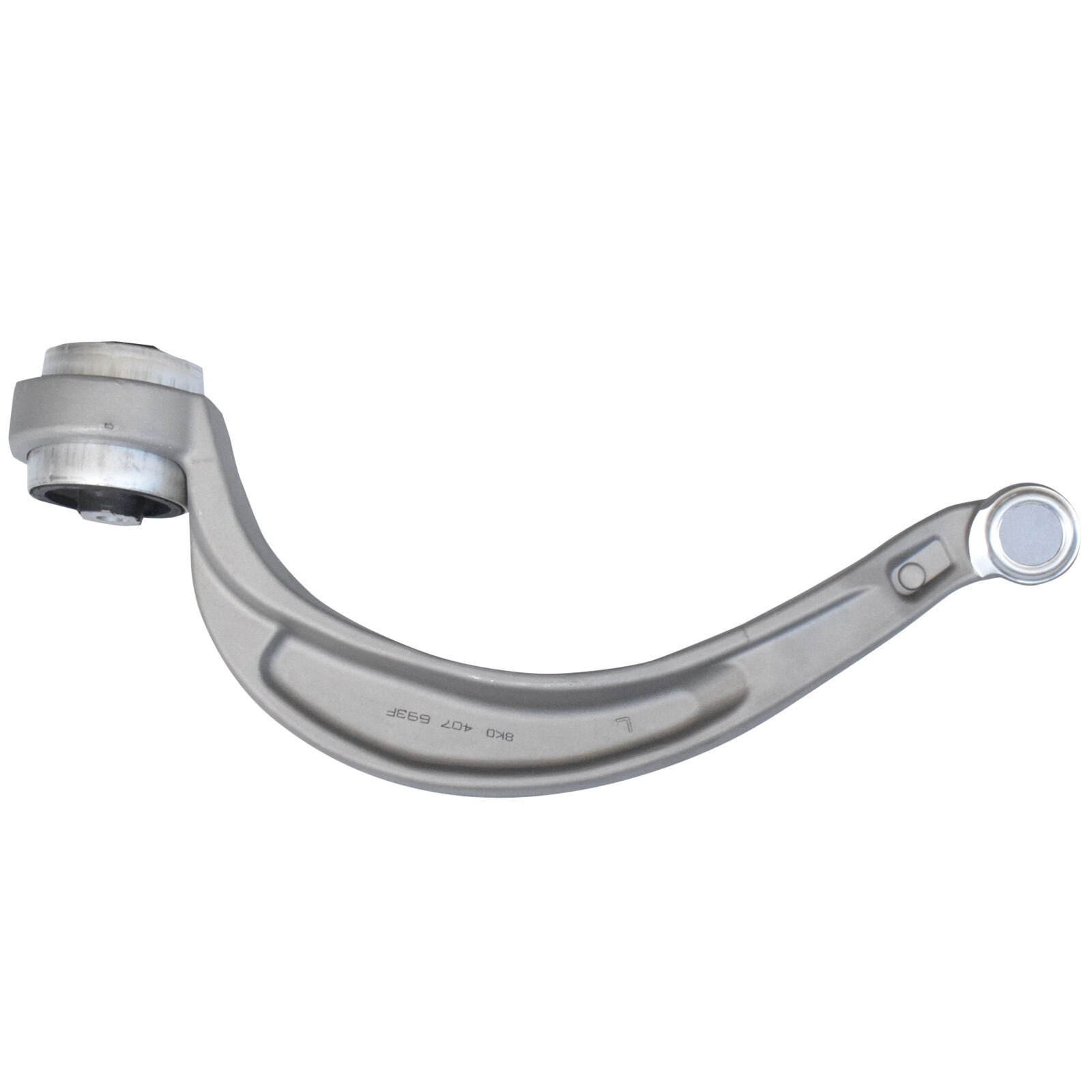

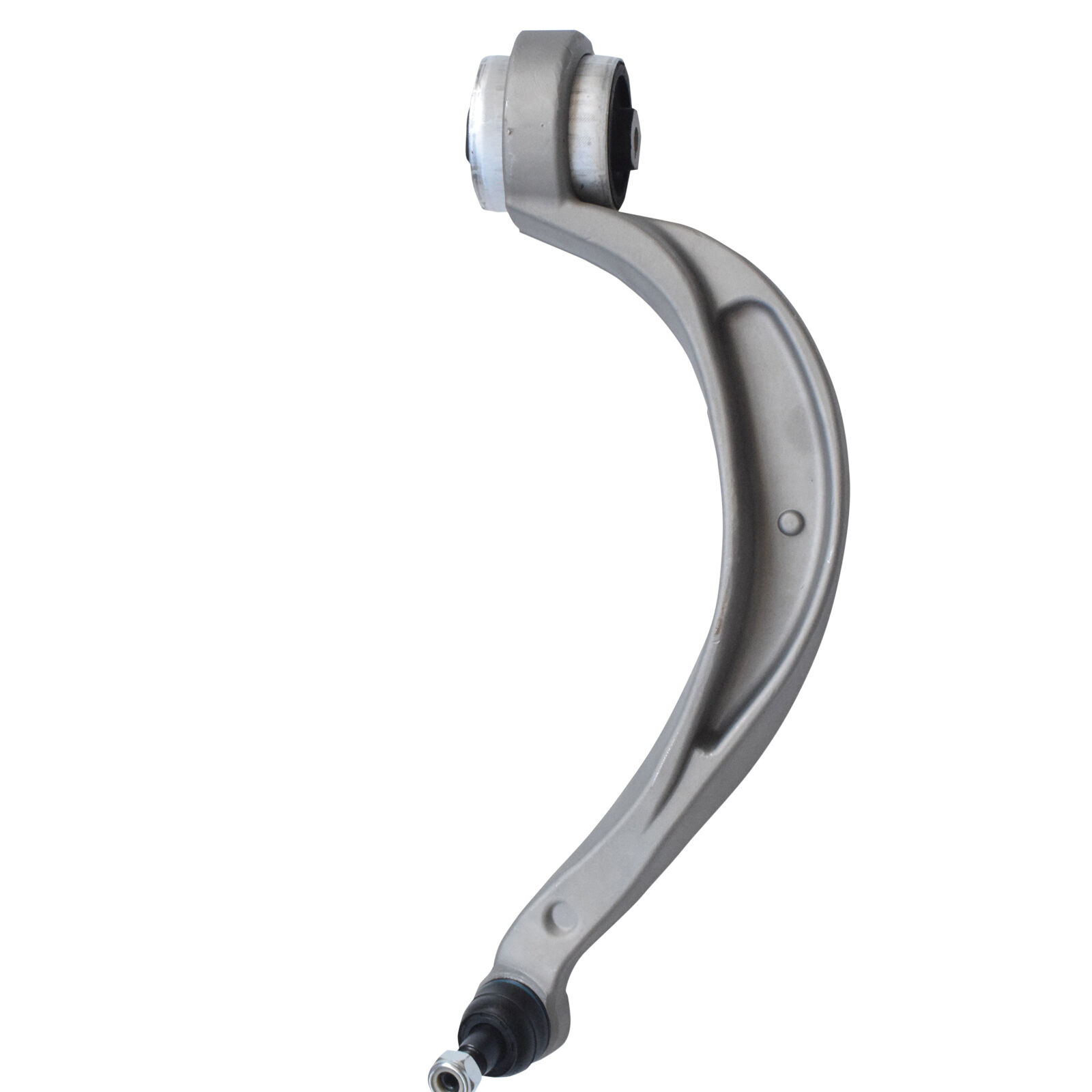

1 x Front Lower Rear Control Arm ( Left Side )

SKU METAV662
Brand POWEROY
Shipping Weight 3.0000kg
Shipping Width 0.220m
Shipping Height 0.120m
Shipping Length 0.500m
Shipping Cubic 0.013200000m3
Assembled Length 0.500m
