Fitment

For Toyota Celica All-Trac (ST165, 1988-1989) – For 3S-GTE (Gen 1) 2.0L Turbo engine
For Toyota Celica All-Trac (ST185, 1990-1993) – For 3S-GTE (Gen 2) 2.0L Turbo engine
For Toyota MR2 Turbo (SW20, 1991-1995) – For 3S-GTE (Gen 2) 2.0L Turbo engine

Pin Type: Floating Pin Piston



Specification

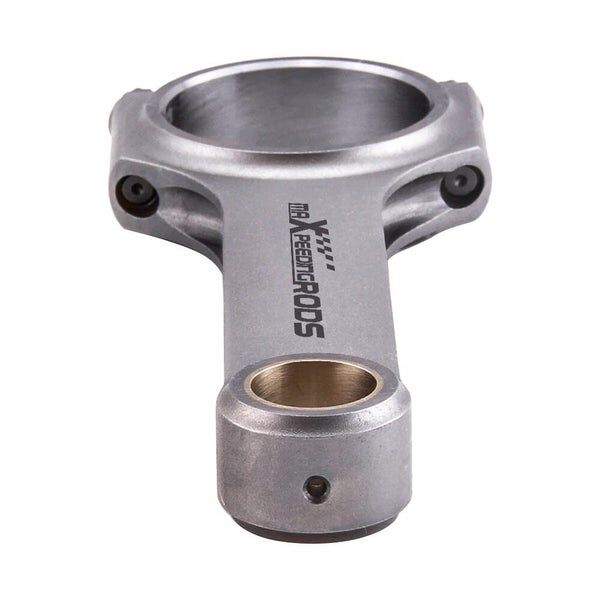

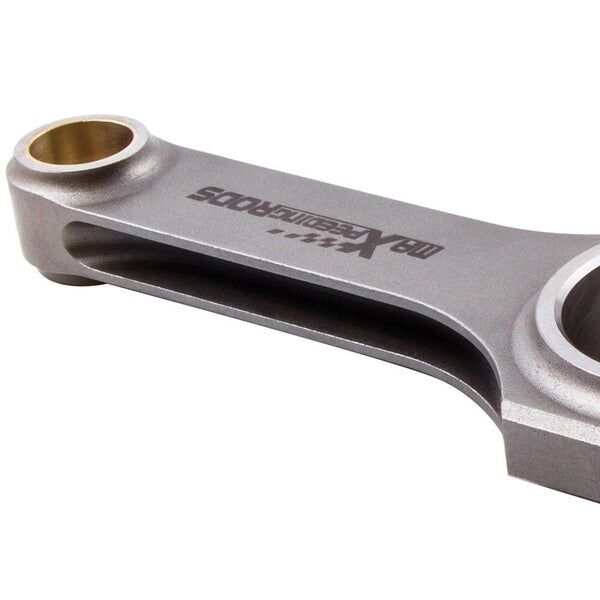

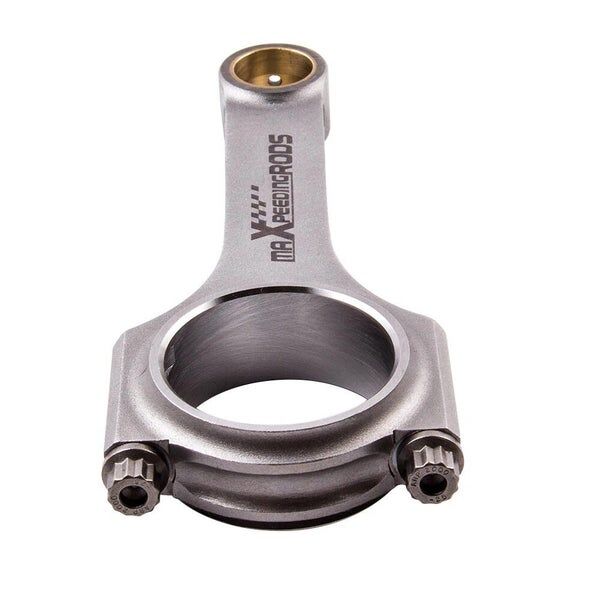

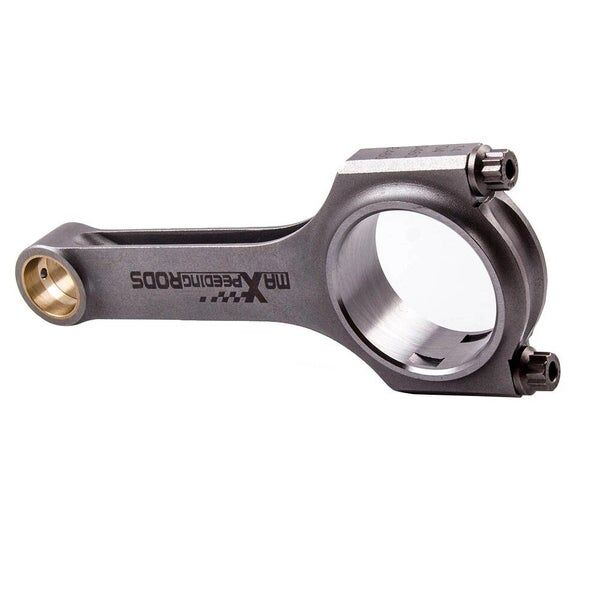

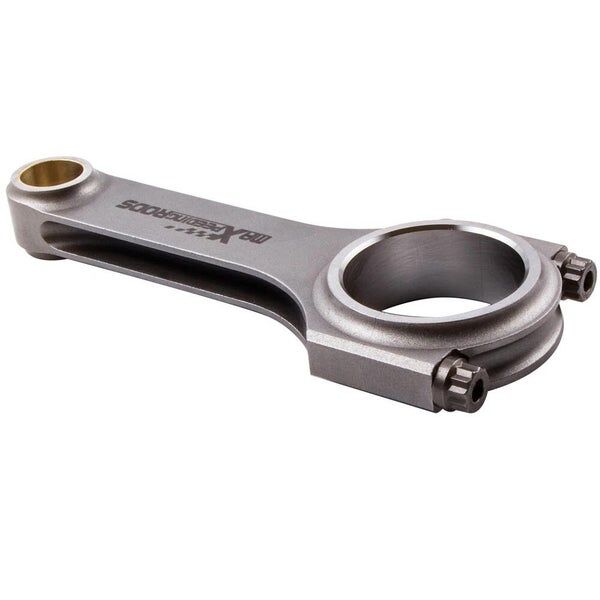

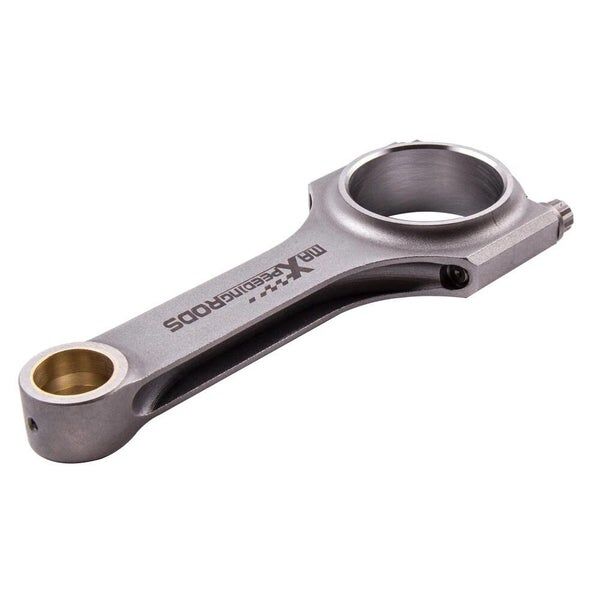

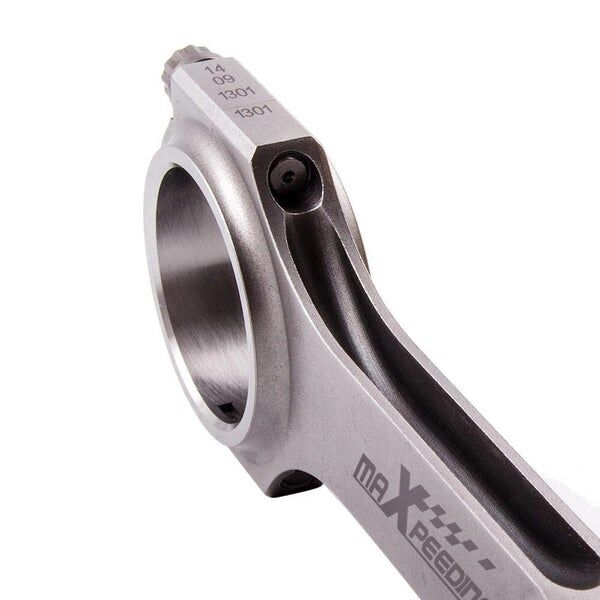

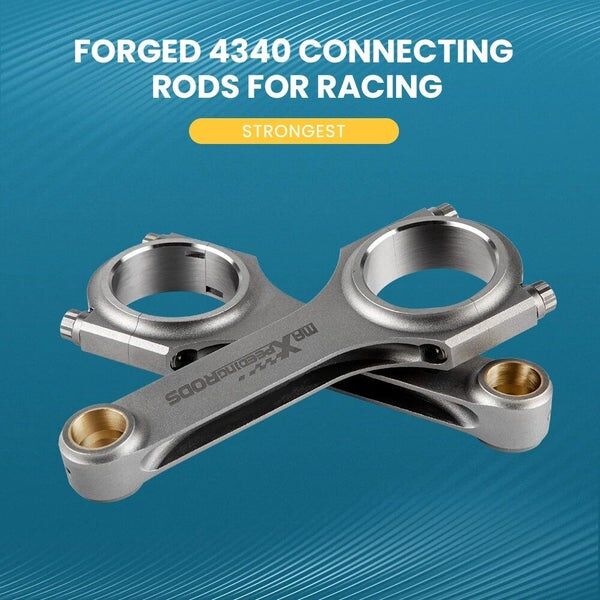

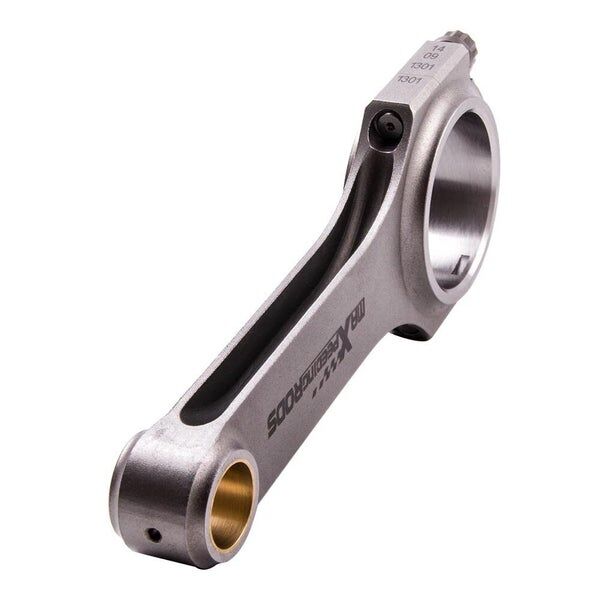

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt

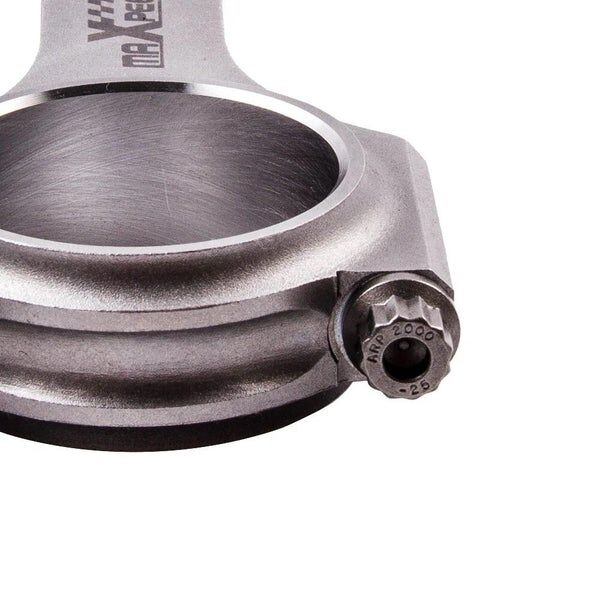

Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes



Dimension

Connecting Rod Length Center to Center: 138.00mm/5.433in
Approximate Connecting Rod Weight:581g
Big End Bore Diameter: 51.00mm/2.008in
Pin End Bore Diameter: 22.00mm/0.866in
Big End Width: 26.80mm/1.055in
Small End Width: 23.50mm/0.925in



Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm



Packaging

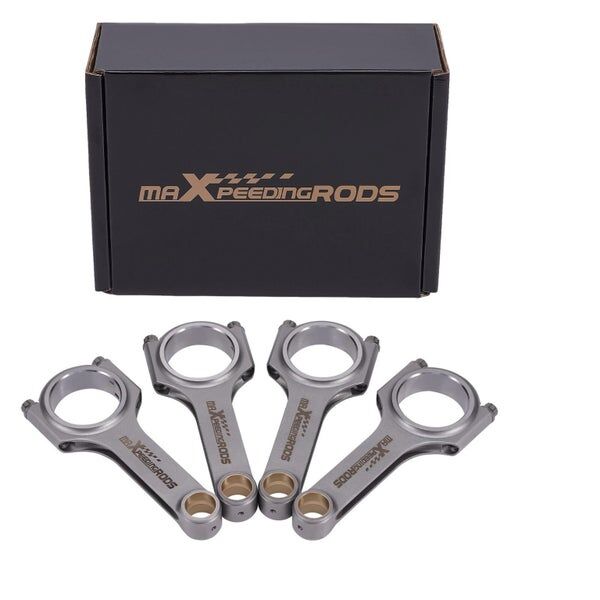

Quantity: Sold as a set of 4

SKU MTV-maX-2770
Brand MAX PEEDING RODS
Shipping Width 0.280m
Shipping Height 0.100m
Shipping Length 0.210m
Shipping Cubic 0.005880000m3
