Fitment
For Nissan S13 240SX 1989-1994 USA
For Nissan S13 200SX 1989-1993 Europe
For Nissan S13 Silvia 1988-1993 Japan
For Nissan S13 180SX 1989-1999 Japan
For Nissan S13 Sileighty 1998 Japan

Specification

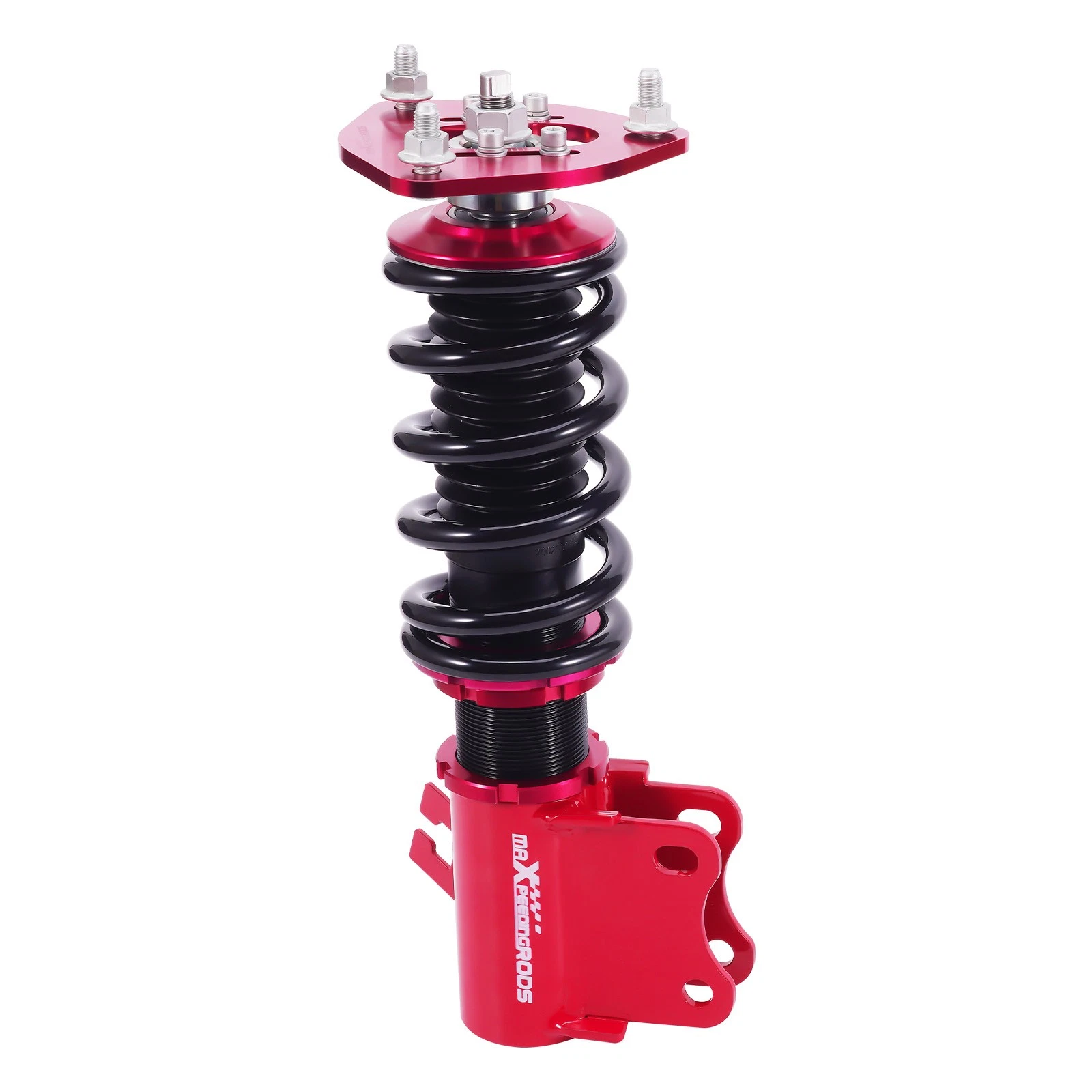

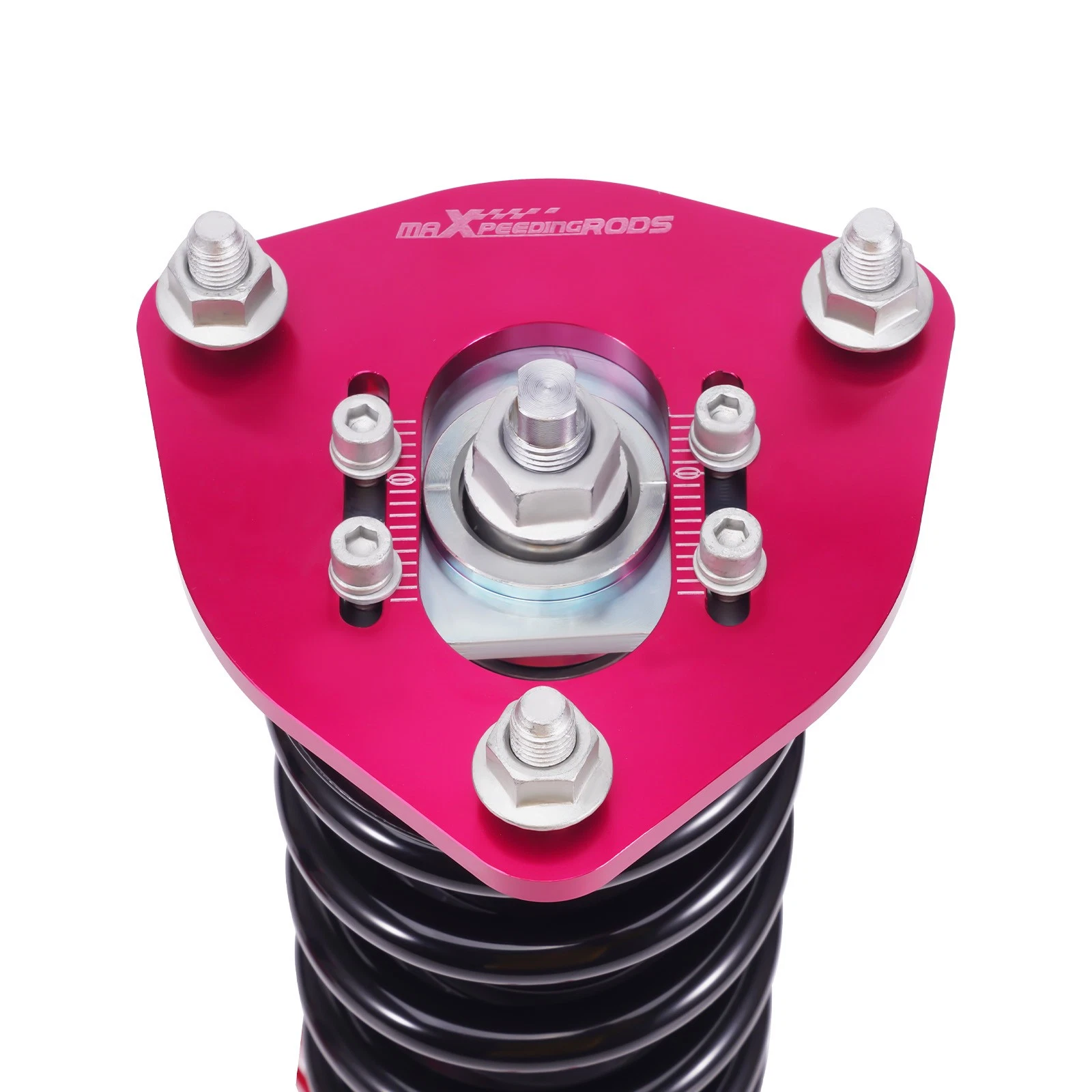

Front top mount: Pillow ball with camber plate
Rear top mount: Standard rubber
Damping adjustable: Not available
Camber adjustable: Available, front only
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 8 kg/mm(448lbs/in)
Spring Rate Rear: 7 kg/mm(392lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 180 mm
Spring length Rear: 220 mm
Spring Preload advised: 7-10 mm
Color: Red

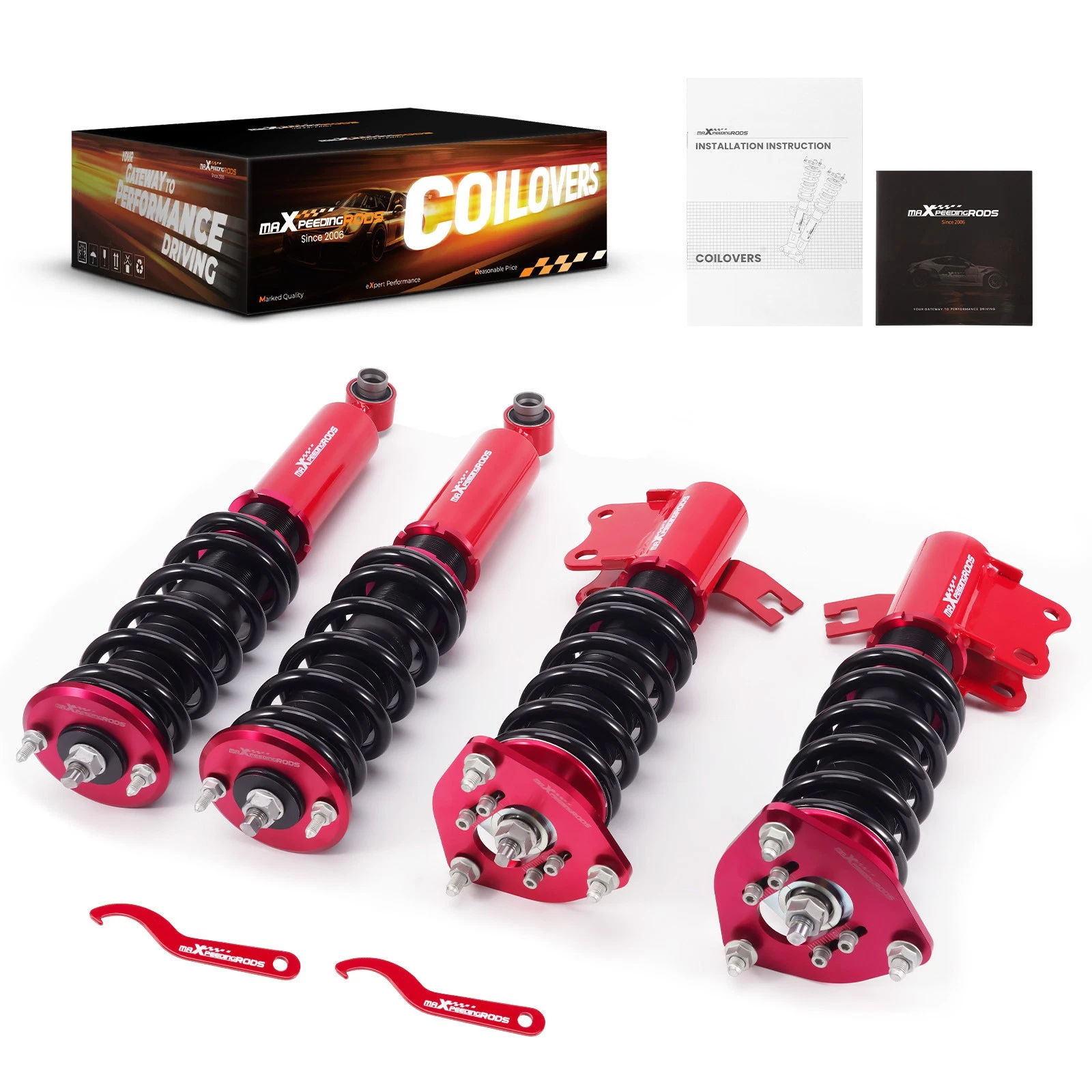

Package included

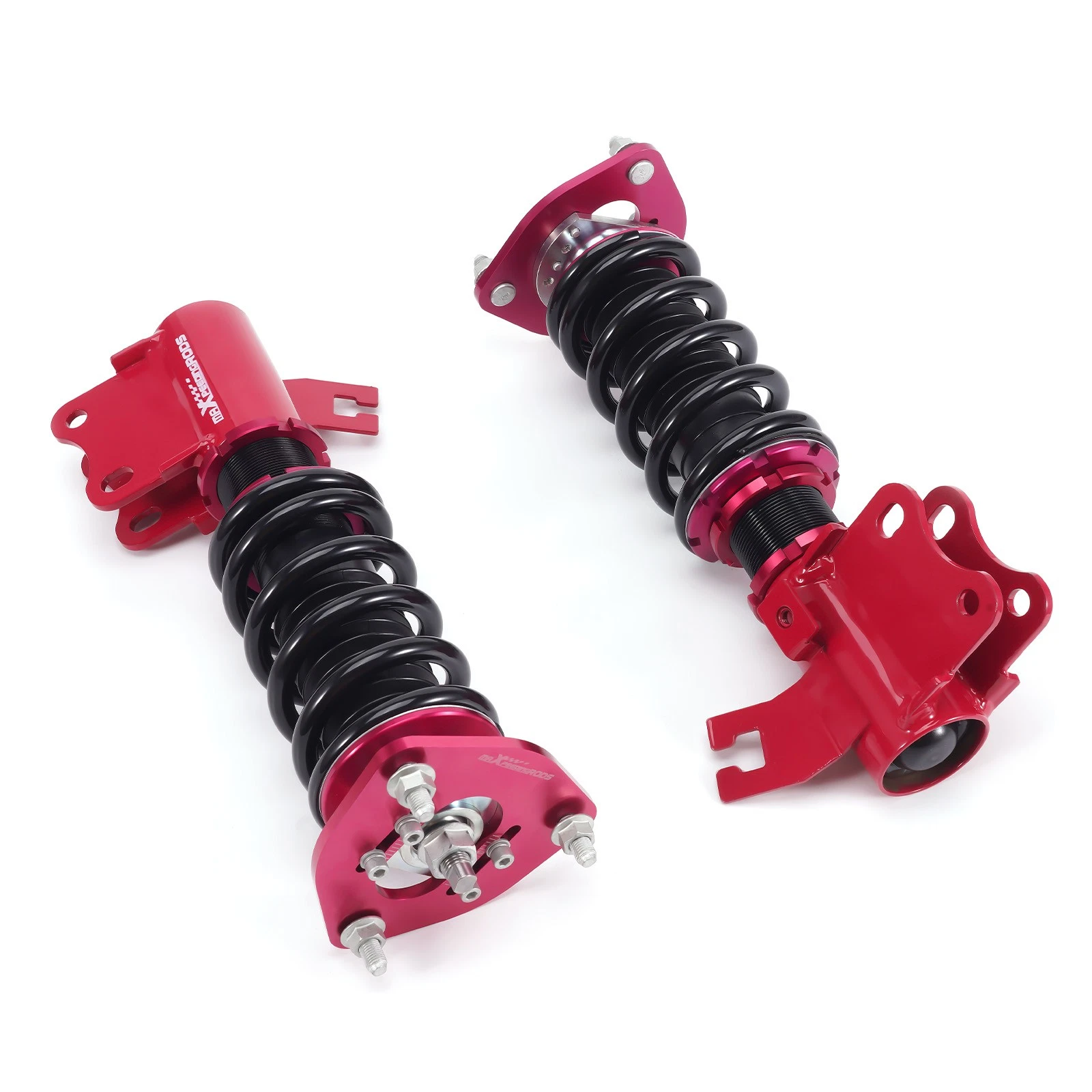

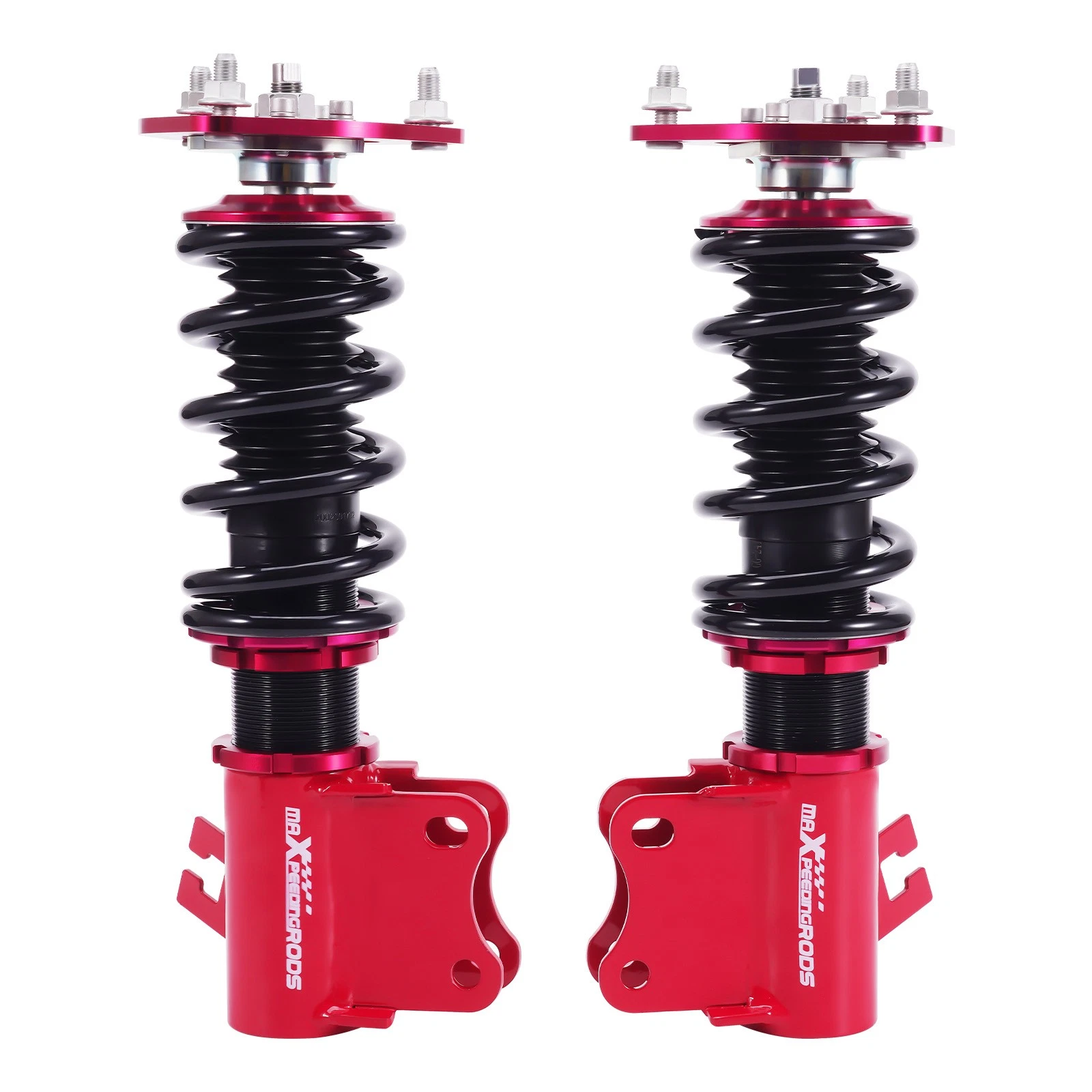

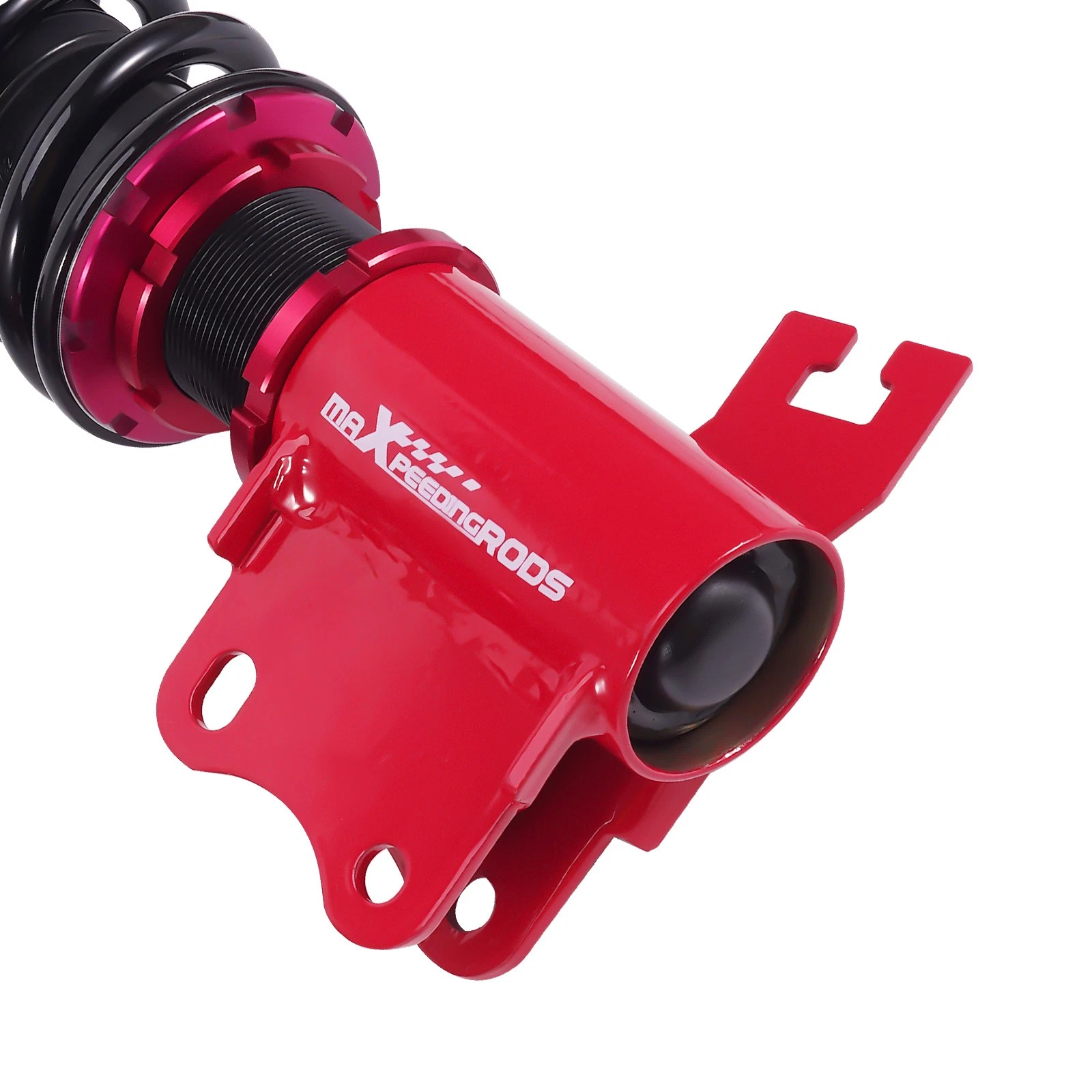

2x Front coil-overs

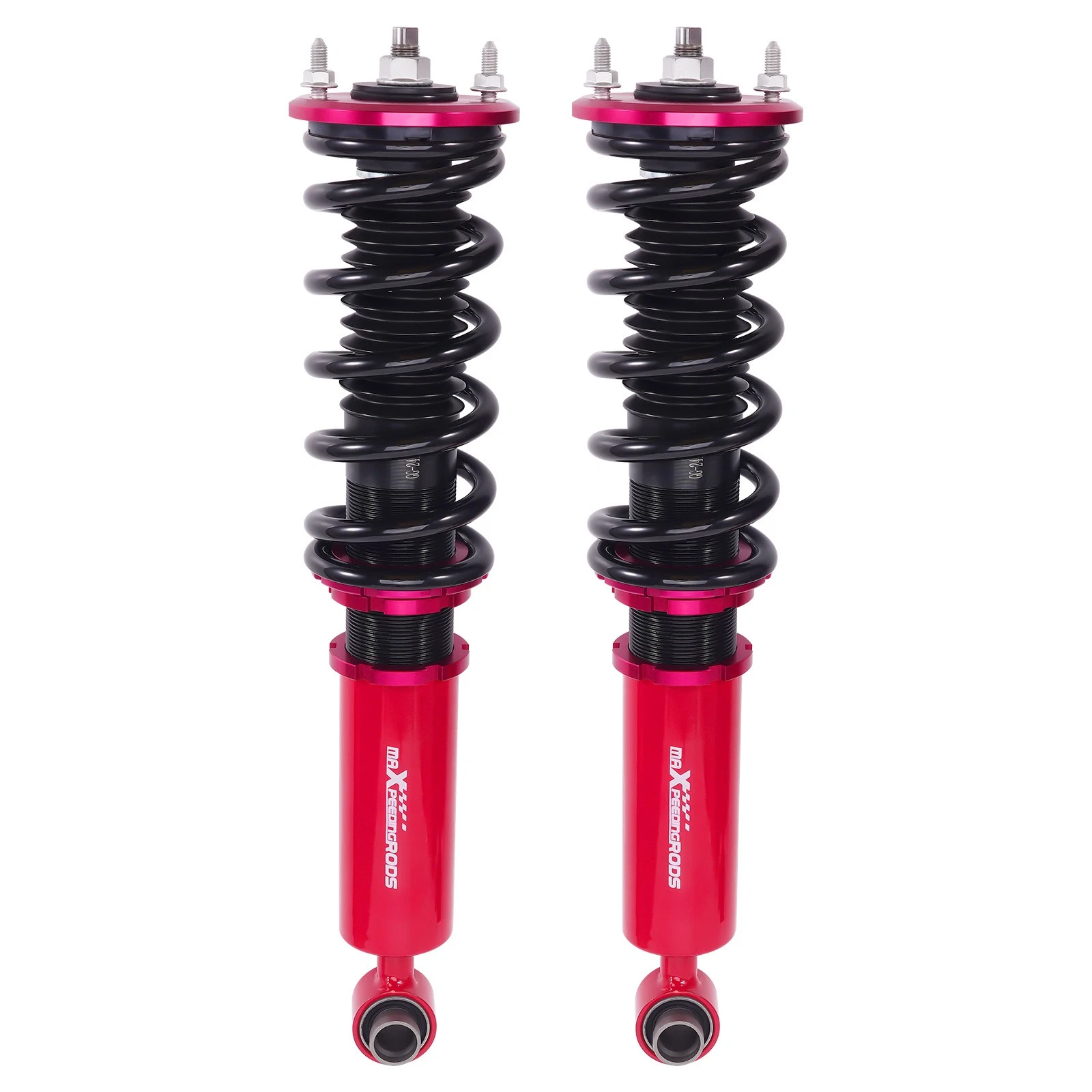

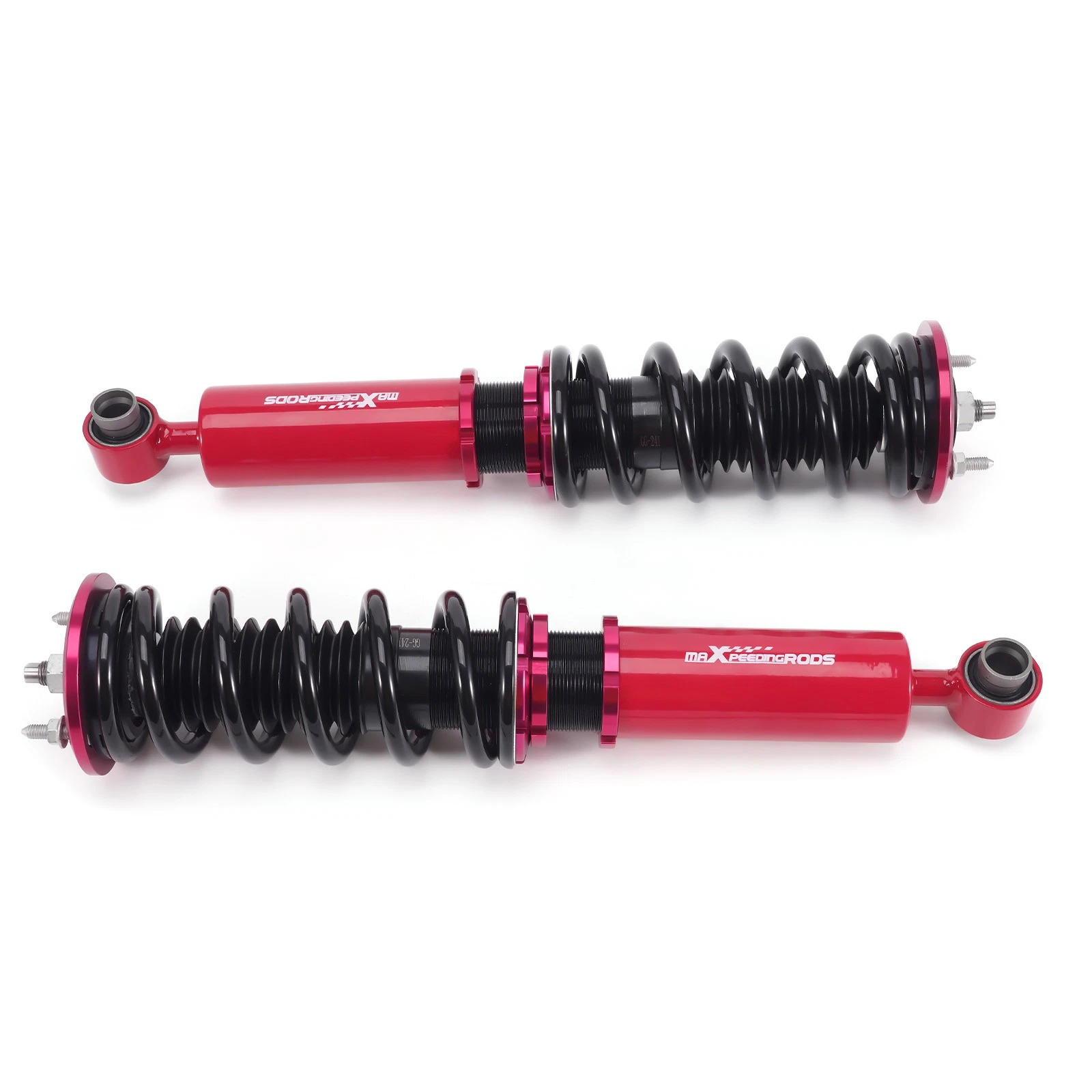

2x Rear coil-overs
2x C spanners

Notice
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
