Fitment

For Subaru Legacy Outback B4 BEE/BE5 1998.12-2003.05

For Subaru Legacy Outback TOURING WAGON BHE 1998.06-2003.05

For Subaru Legacy Outback TOURING WAGON BHE/BH5 1998.06-2003.05

Note: For Legacy is also known as Liberty.

Specification

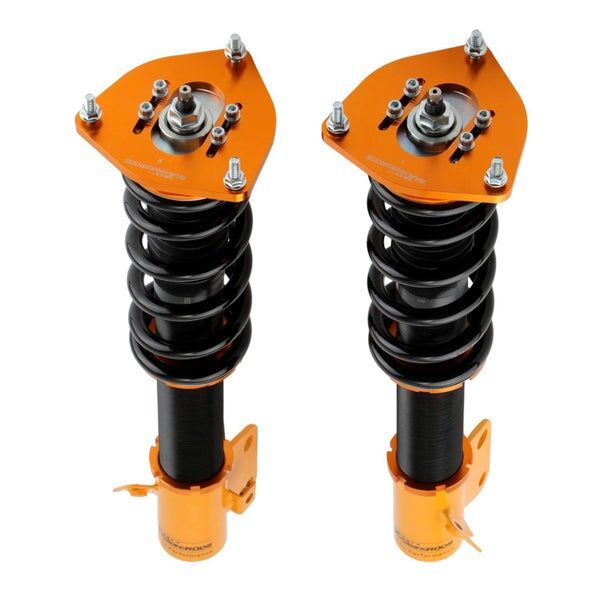

Front top mount: Pillow ball with camber plate

Rear top mount: Standard rubber

Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable: Available, front only

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Color: Golden body with black spring

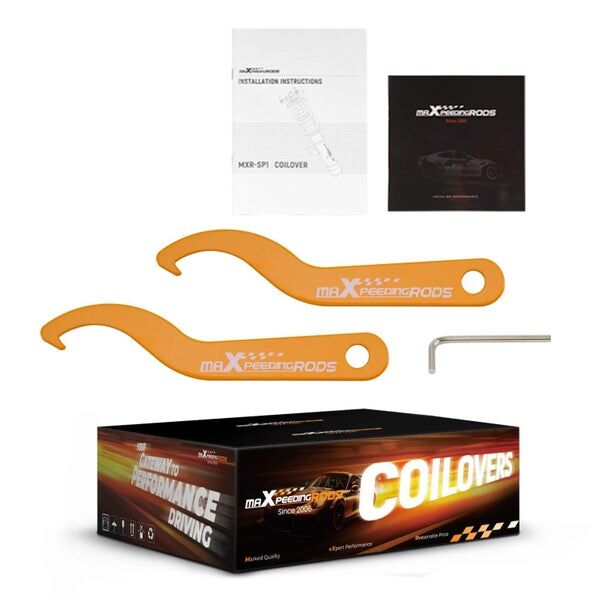

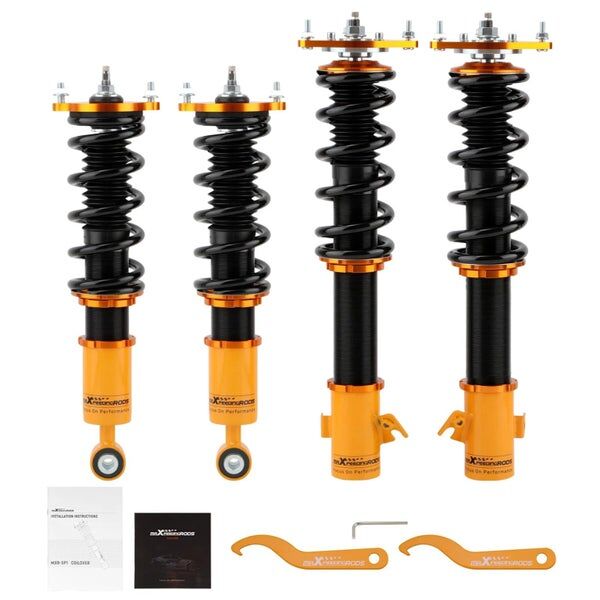

Package included

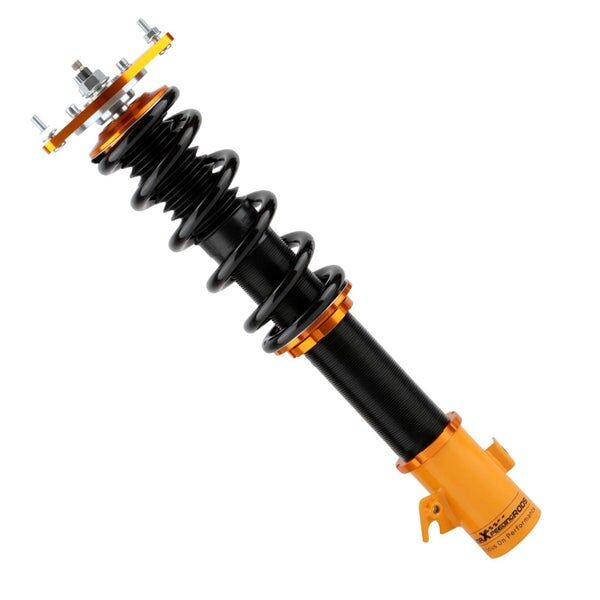

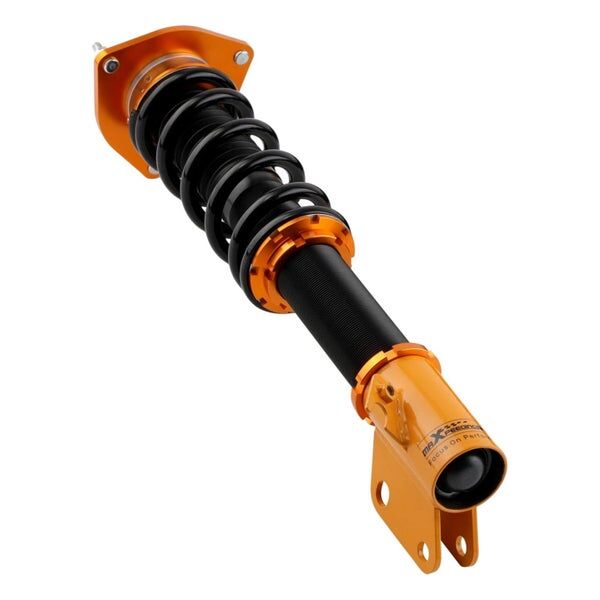

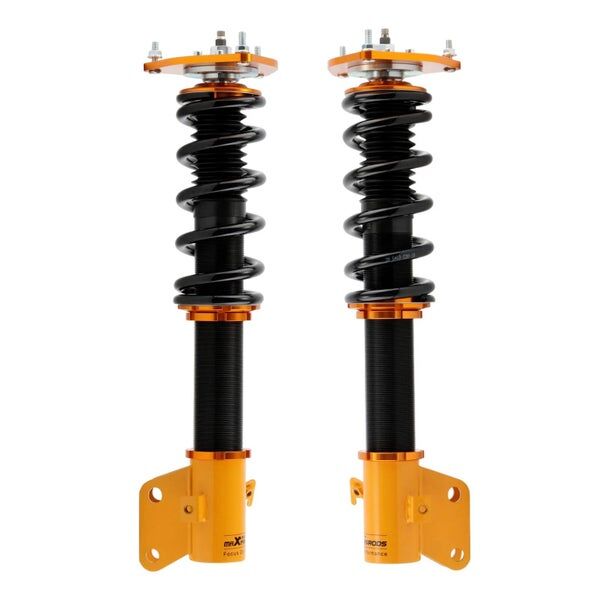

2x Front coil-overs

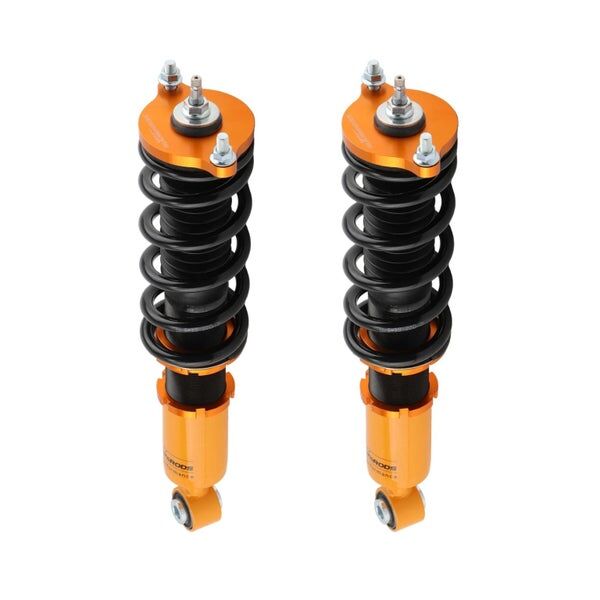

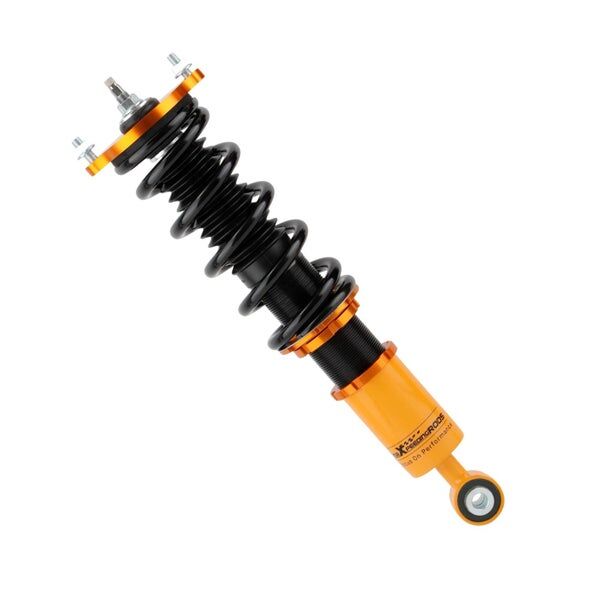

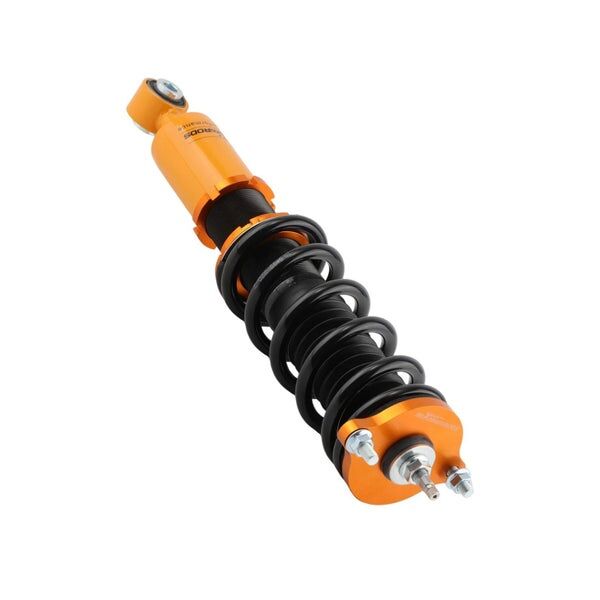

2x Rear coil-overs

2x C spanners

1x Allen wrench

Features

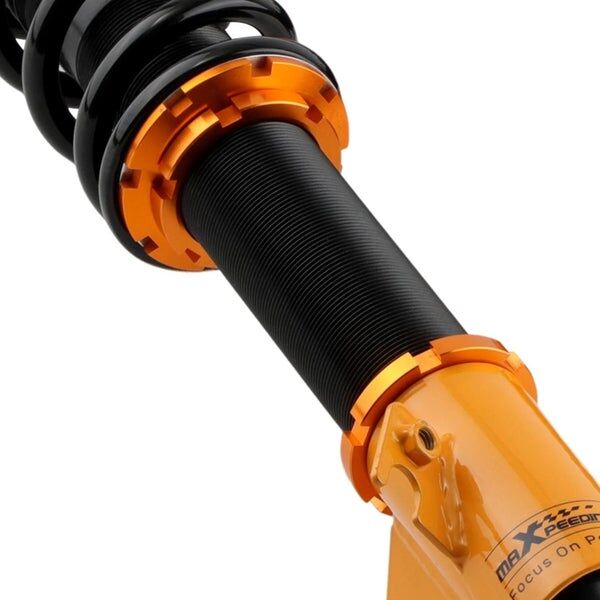

1. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

2. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

3.CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

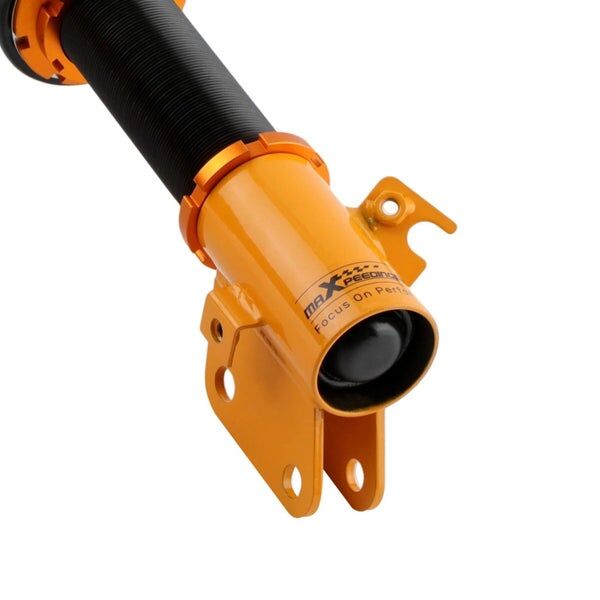

4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

5. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.

6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
