Application

For Toyota Corolla E90 1987-1992

For Toyota Corolla E100 1991-1998

For Toyota Corolla E110 1995-2002

For Toyota Corolla AE92 1987-1991

For Toyota Corolla AE101 1992-1998

For Toyota Corolla AE111 1988-2002

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

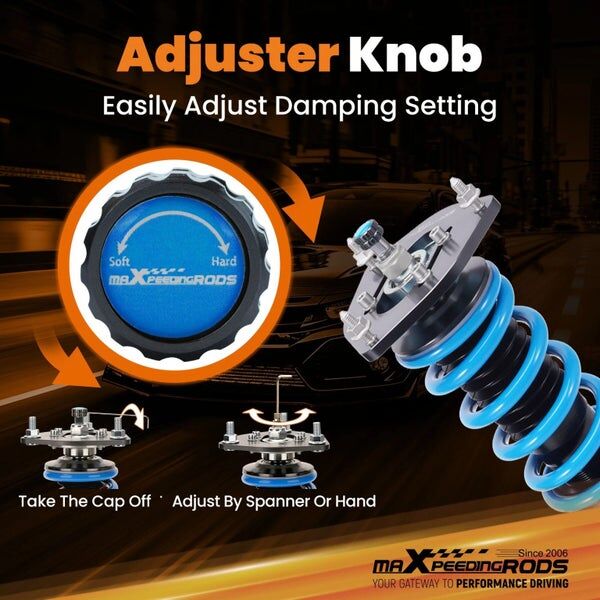

Damping adjustable: Available, 24 levels of rebound damping force

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 180 mm

Spring length Rear: 230 mm

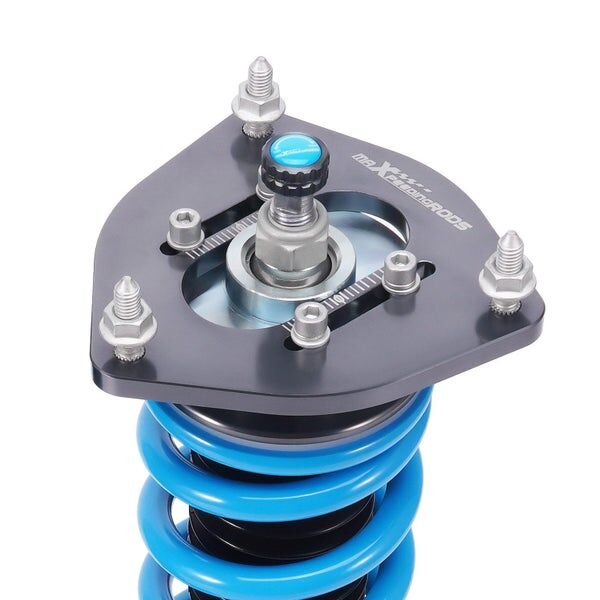

Front top mount structure: Pillow ball bearing camber plate

Rear top mount structure: Pillow ball

Camber adjustable: Available

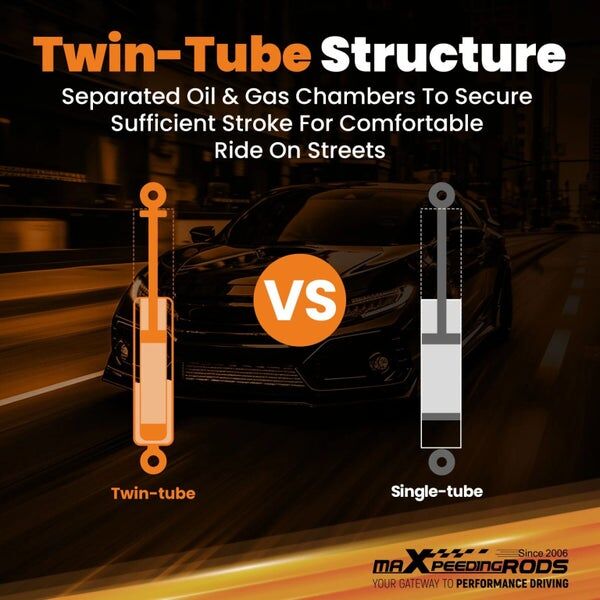

Shock type: Twin tube

Spring Preload: 7-10 mm

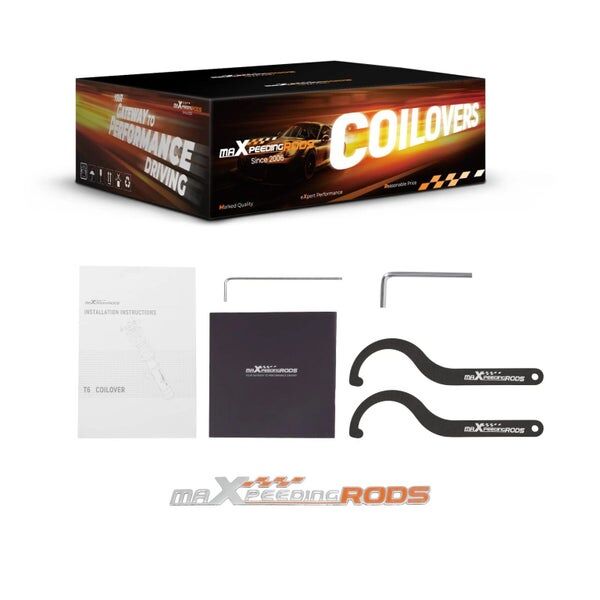

Package included

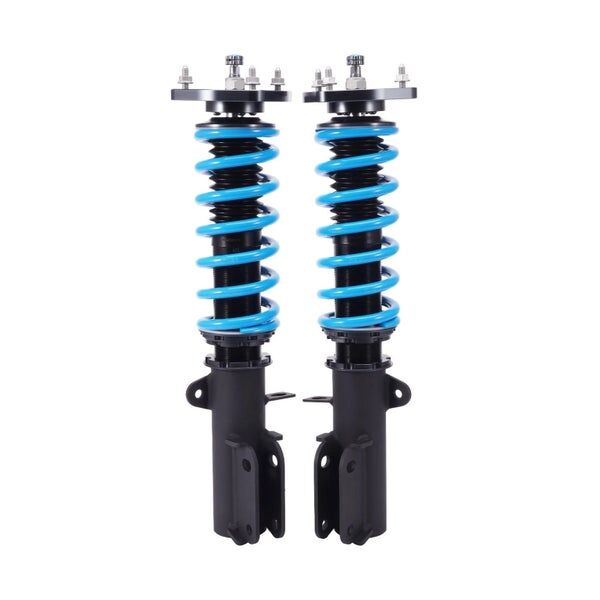

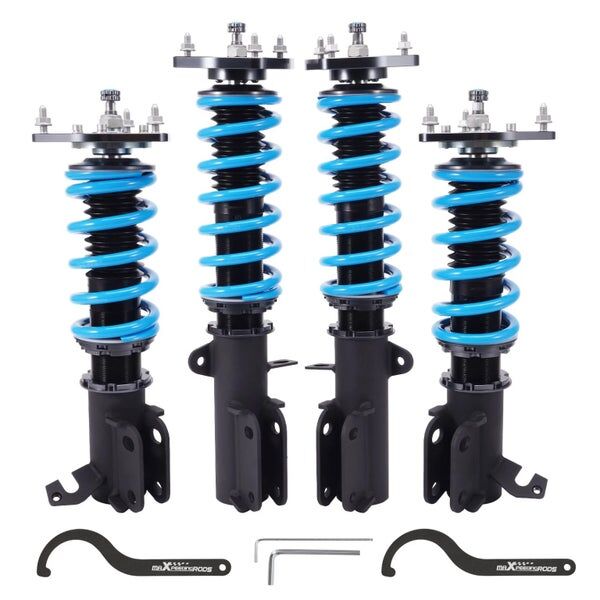

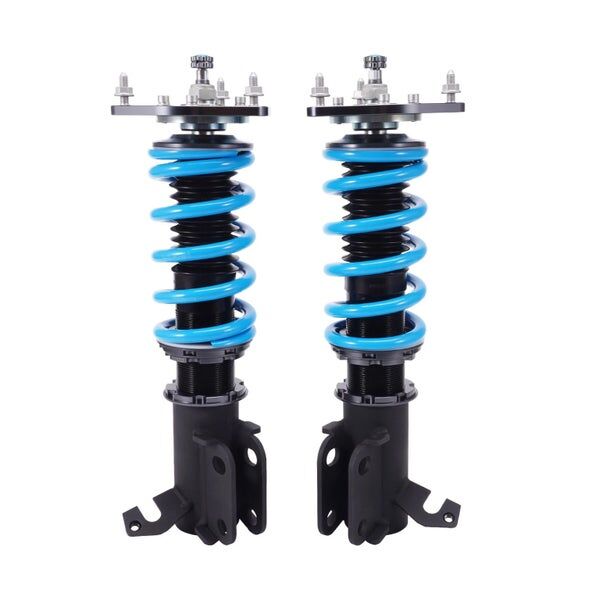

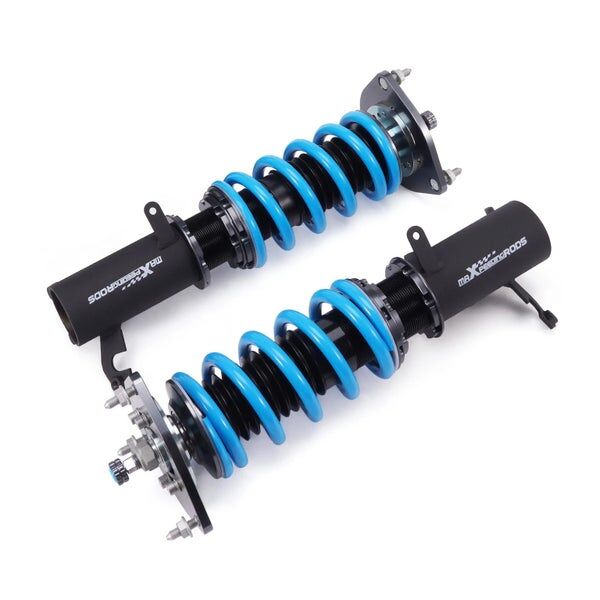

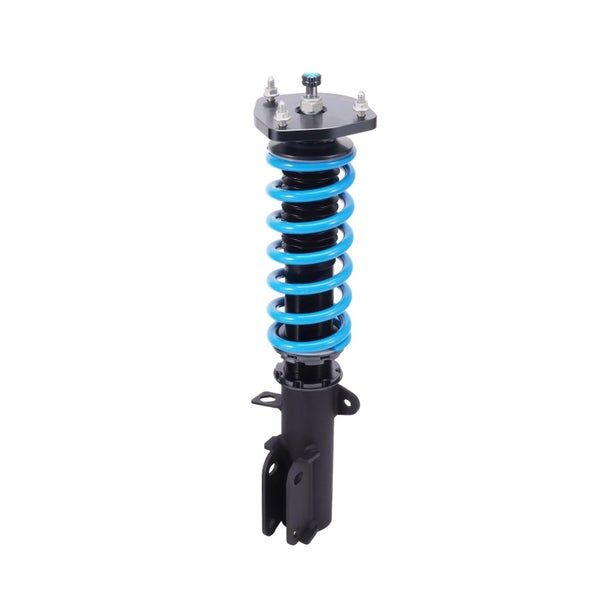

Complete coilover assembly kit for front and rear

A pair wrench for height adjustment

SKU MTV-maX-867
Brand MAX PEEDING RODS
