Fitment

For Austin Mini Cooper S (1964–1971) – Fits 1275cc A-Series engine
For Mini Marcos (1965–1974) – Fits 1275cc A-Series engine
For Austin-Healey Sprite MkIV (1966–1970) – Fits 1275cc A-Series engine
For MG Midget MkIII (1966–1974) – Fits 1275cc A-Series engine
For MG 1300 / Wolseley 1300 (1967–1968) – Fits 1275cc A-Series engine
For Riley Kestrel 1300 (1967–1968) – Fits 1275cc A-Series engine
For Vanden Plas Princess 1300 (1967–1968) – Fits 1275cc A-Series engine
For Morris 1300 (1967–1973) – Fits 1275cc A-Series engine
For Austin 1300 (1967–1974) – Fits 1275cc A-Series engine
For MG 1275 / Riley 1275 (1967) – Fits 1275cc A-Series engine
For Wolseley 1275 (1967) – Fits 1275cc A-Series engine
For Vanden Plas Princess 1275 (1967) – Fits 1275cc A-Series engine
For Riley Kestrel 1300 / Riley 1300 (1968–1969) – Fits 1275cc A-Series engine
For Austin America (automatic) (1968–1971) – Fits 1275cc A-Series engine
For Wolseley 1300 (manual) (1968–1973) – Fits 1275cc A-Series engine
For MG 1300 MkII (1968–1973) – Fits 1275cc A-Series engine
For Vanden Plas Princess 1300 (manual) (1968–1974) – Fits 1275cc A-Series engine
For MG 1300 / Riley Kestrel 1300 (1968) – Fits 1275cc A-Series engine
For Morris 1300GT (1969–1971) – Fits 1275cc A-Series engine
For Mini Moke Californian (Australian only) (1971–1982) – Fits 1275cc A-Series engine
For Mini 1275GT (1969–1974) – Fits 1275cc A-Series engine
For Austin 1300GT (1969–1974) – Fits 1275cc A-Series engine
For Morris Marina (1971–1980) – Fits 1275cc A-Series engine
For Austin Sprite (1971) – Fits 1275cc A-Series engine
For Austin Allegro (1973–1980) – Fits 1275cc A-Series engine
For Mini 1275GT (1974–1980) – Fits 1275cc A-Series engine
Notice: Big end diameter – 45mm / 1.772
Pin Type: Floating Pin Piston

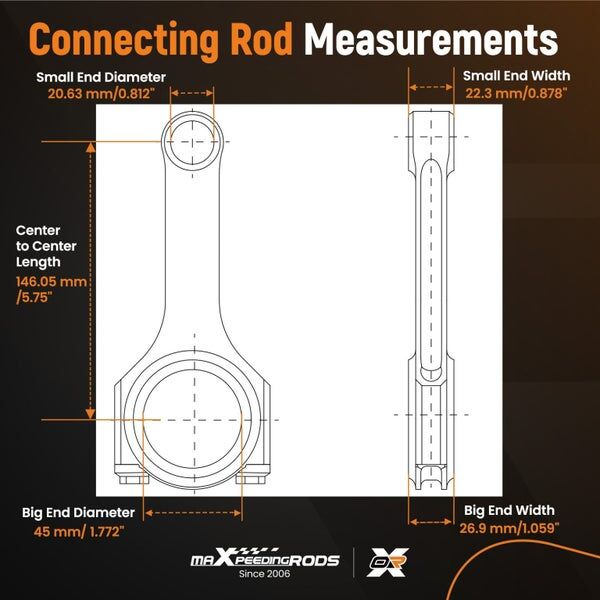

Dimension

Connecting Rod Length Center to Center: 146.05mm/5.750in
Approximate Connecting Rod Weight:540g
Big End Bore Diameter: 45.00mm/1.772in
Pin End Bore Diameter: 20.63mm/0.812in
Big End Width: 26.90mm/1.059in
Small End Width: 22.30mm/0.878in

Specification

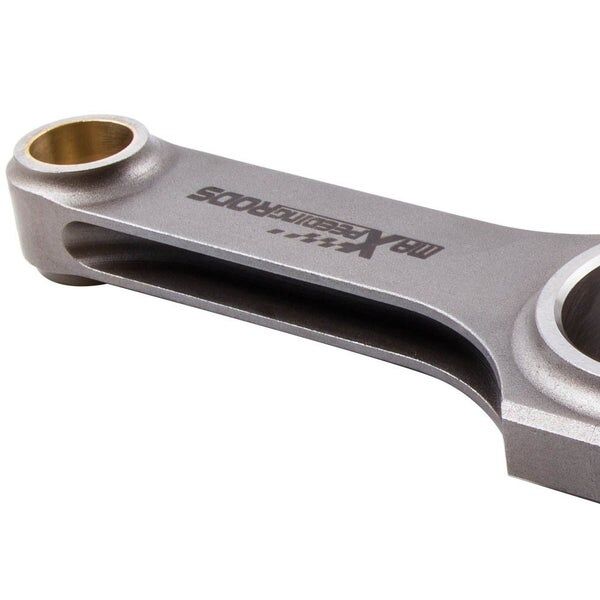

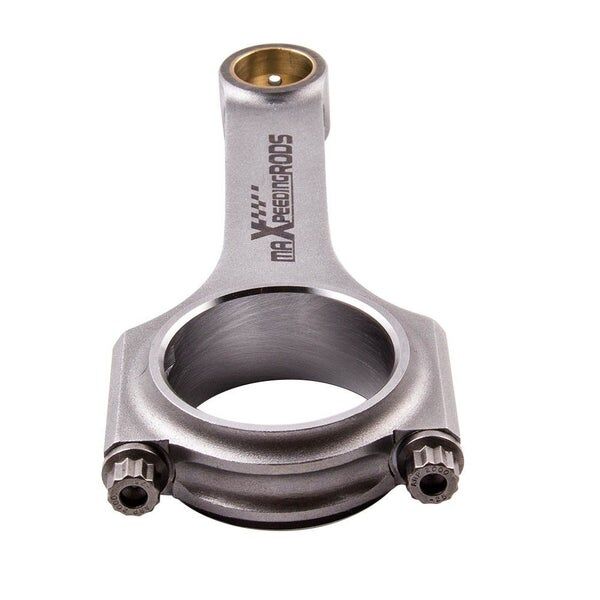

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt

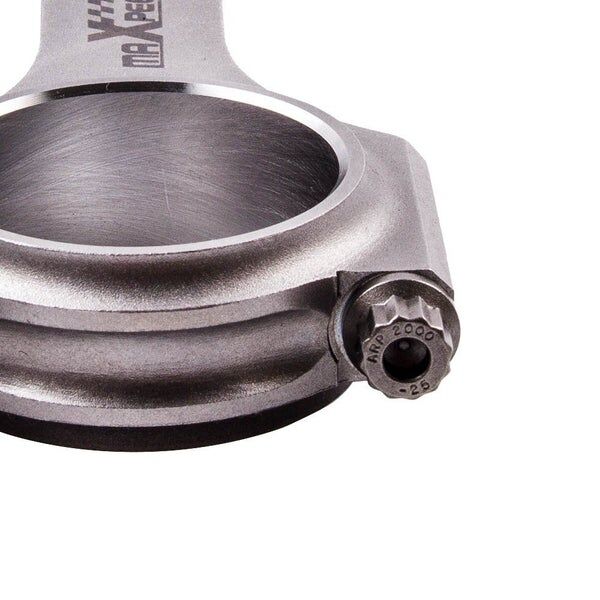

Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm

Packaging

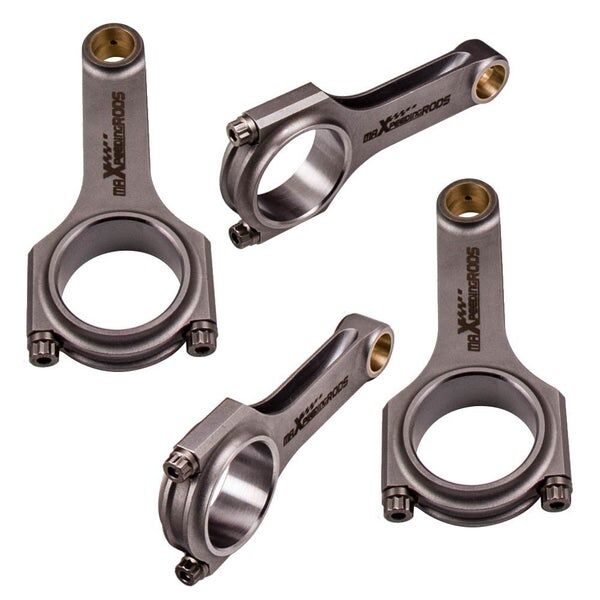

Quantity: Sold as a set of 4
