Application
For Toyota 4E-FE / 4E-FTE 1.3L Engine
For Toyota Starlet GT / Tercel / Corolla / Paseo / Cynos


Dimensions
Connecting Rod Length Centre to Centre: 118.00mm / 4.646in
Approximate Single Rod Weight: 463g
Big End Bore Diameter: 43.00mm / 1.693in
Small End Wrist Pin Bore Diameter: 18.00mm / 0.709in
Big End Width: 20.80mm / 0.819in
Small End Width: 20.80mm / 0.819in


Specifications

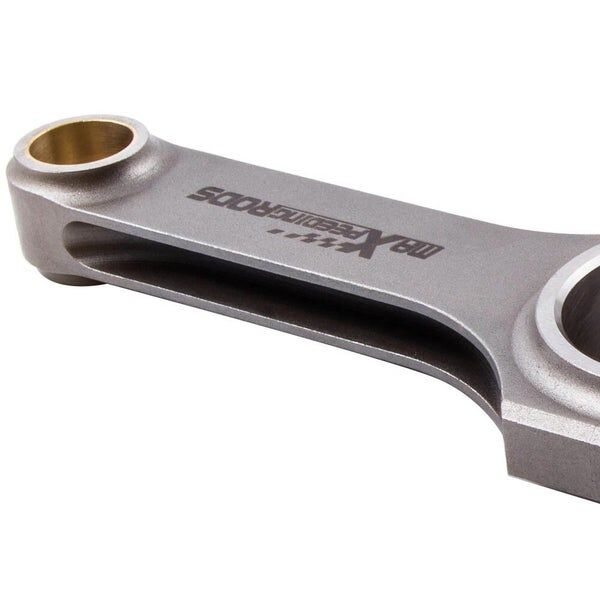

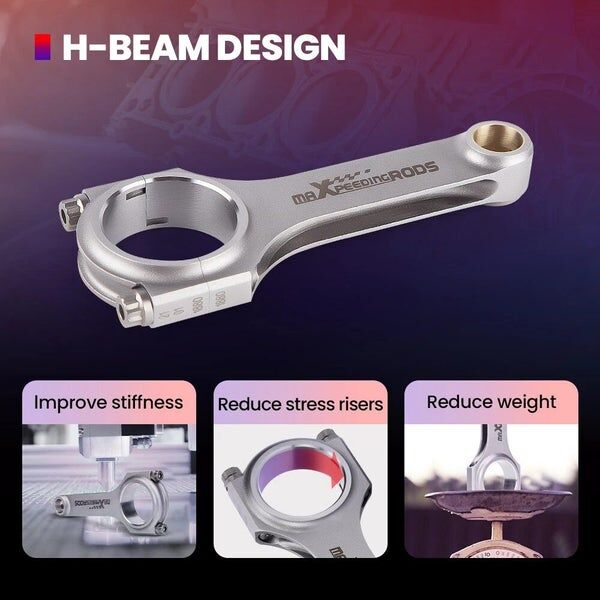

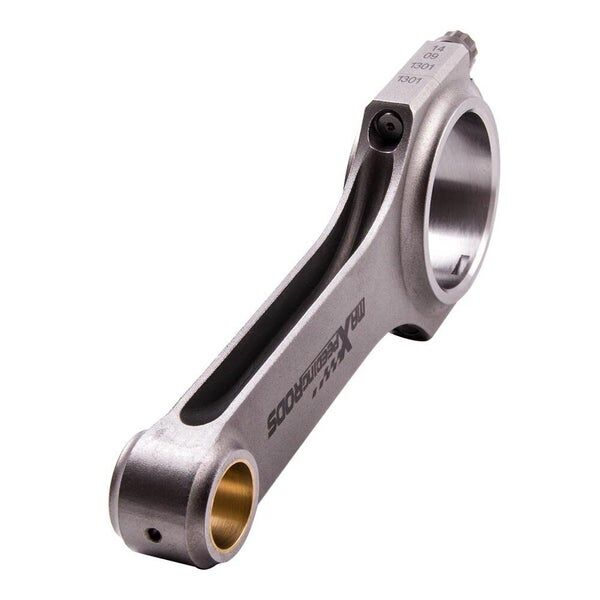

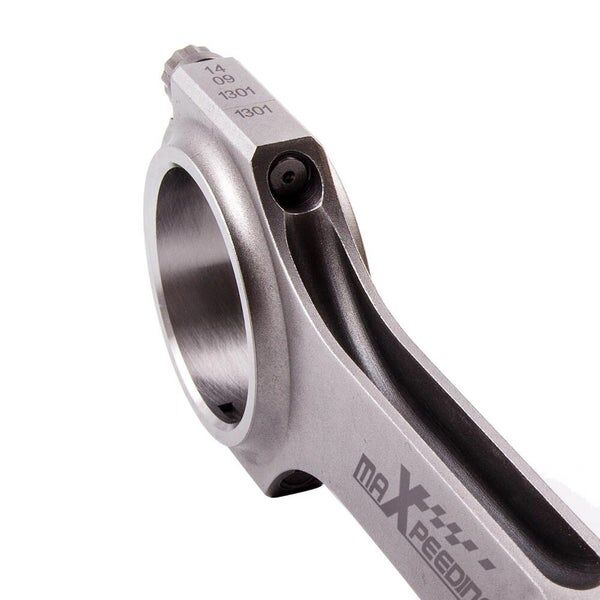

Beam Style: H-beam design built for daily street driving and strip performance builds
Material: Premium 4340 Chromoly Steel
Finish: Shot-peened surface treatment to eliminate internal stress and boost fatigue resistance
Wrist Pin Style: Floating wrist pin fitment
Clearanced to suit stroker crankshaft kits: Yes

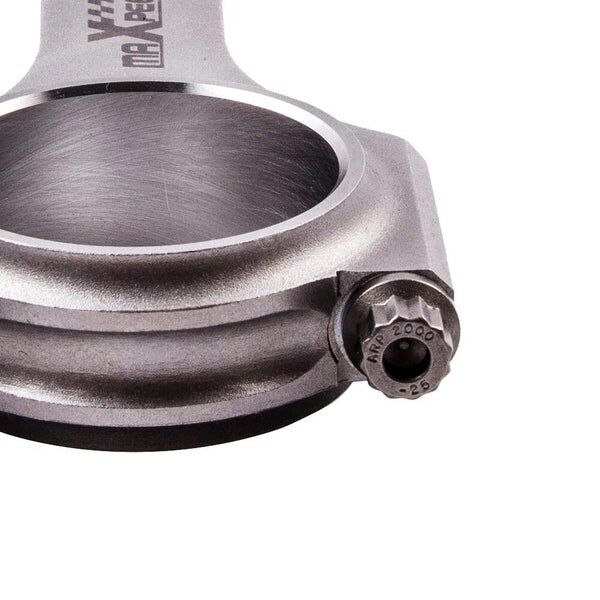

Cap Retention Style: Heavy duty through-bolt construction
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: High tensile Alloy Steel
Standard Fastener Yield Strength: 220,000 psi (ARP 2000 Series)
Optional Upgrade Fasteners: ARP L19 Rod Bolts (260,000 psi)
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High precision CNC machining for tight, consistent tolerances
Rod Cap Alignment: Precision locating dowels for perfect cap seating and alignment
Bore Tolerance: ±0.005 mm
Balancing Standard: ±1 gram tolerance for each individual connecting rod
Weight Matched Complete Set: Yes, factory balanced matched set
Remanufactured: Brand new units, no second-hand or reconditioned components
Quality Testing: Magnaflux crack detection, full X-ray inspection, ultrasonic material flaw scanning
Heat Treated: Fully heat treated during production for maximum tensile strength & service life


Performance Ratings
Rated Horsepower Capacity Per Individual Rod: 200HP
Safe Maximum Operating RPM Rating: 7,000rpm


Packaging

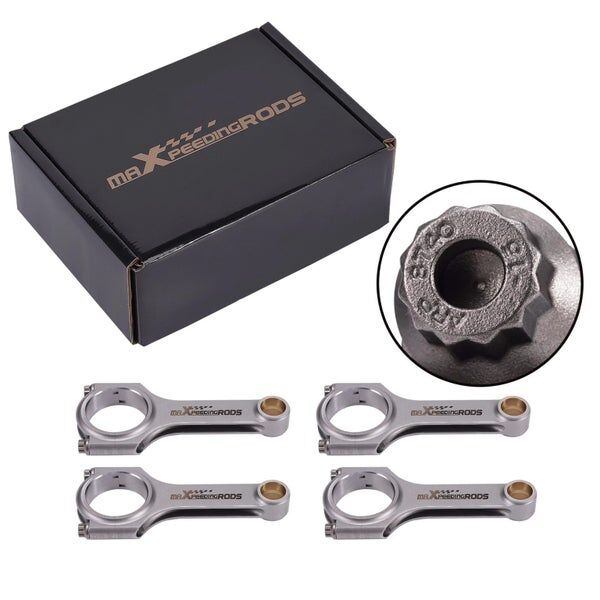

Quantity Supplied: Sold as a full complete set of 4 connecting rods

SKU MTV-maX-930
Brand MAX PEEDING RODS
Shipping Width 0.280m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.005600000m3
