Fitment

For Yamaha YZ85 2002-2018
For Yamaha YZ80 1993 - 2001



Part Number

Cylinder(YZ80): 4ES-11311-20-00, 4ES-11311-30-00
Cylinder(YZ85): 5PA-11311-20-00, 5PA-11311-30-00
Cylinder base gasket: 4ES-11351-00-00
Piston: 4ES-11631-01-A0, 5PA-11631-00-D0
Pin, piston: 4ES-11633-00-00
Piston ring: 43K-11611-00-00
Circlips, piston(2): 93450-16115-00
O-ring seal: 93210-56459-00, 93210-84724-00
Needle bearing(14 x 18 x 16.5 mm): 93310-21417-00



Features
Material: Aluminum
Displacement: 85ccm
Bore Type: Standard Bore
Bore Size: 47.5mm
Stroke: 47.8mm
Compression 8.2:1

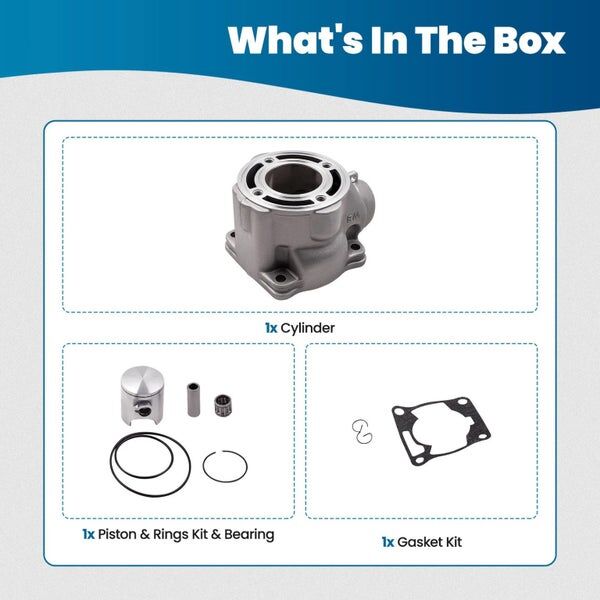

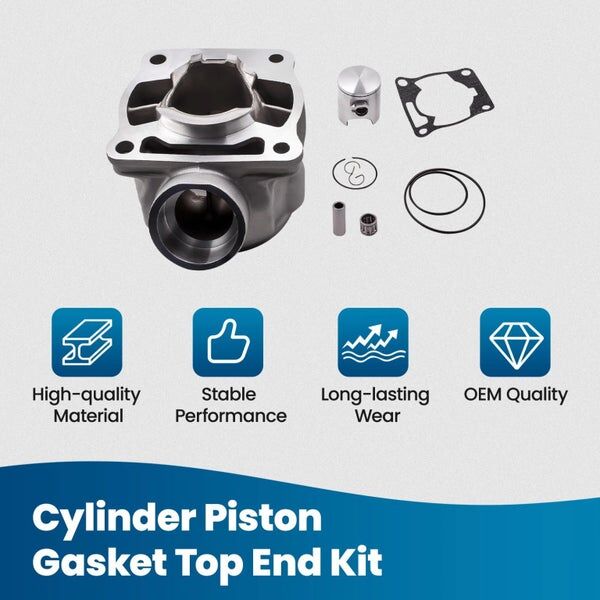

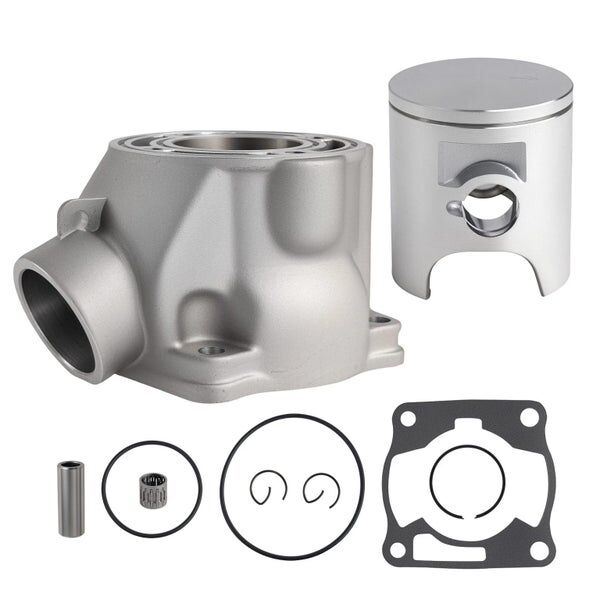

Package Includes(Just as the picture shown

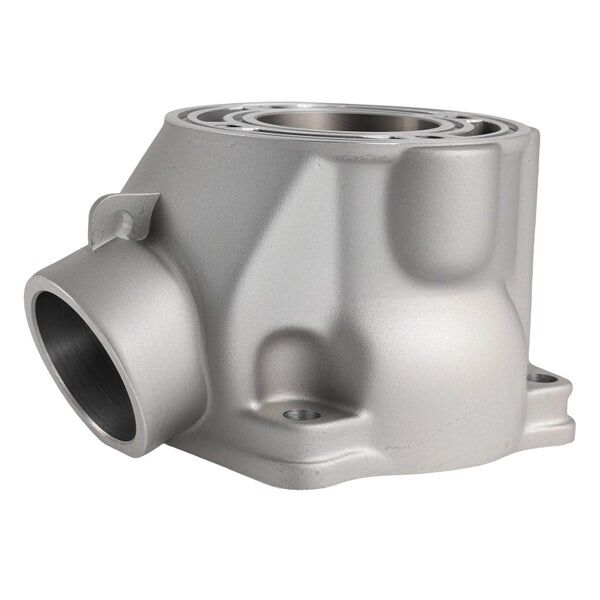

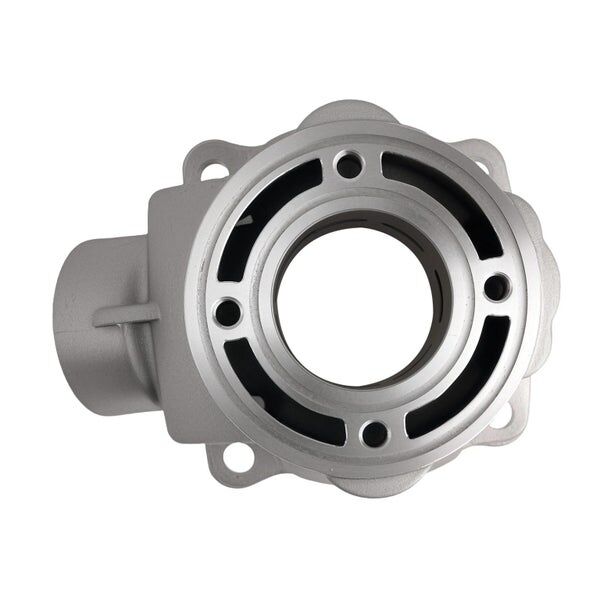

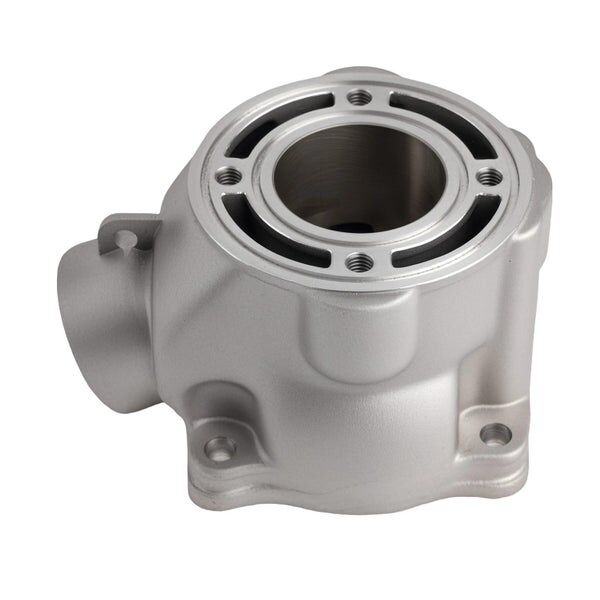

Cylinder,

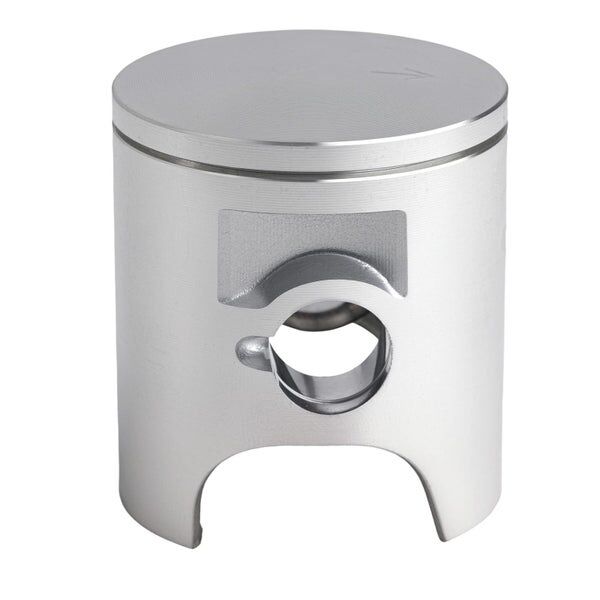

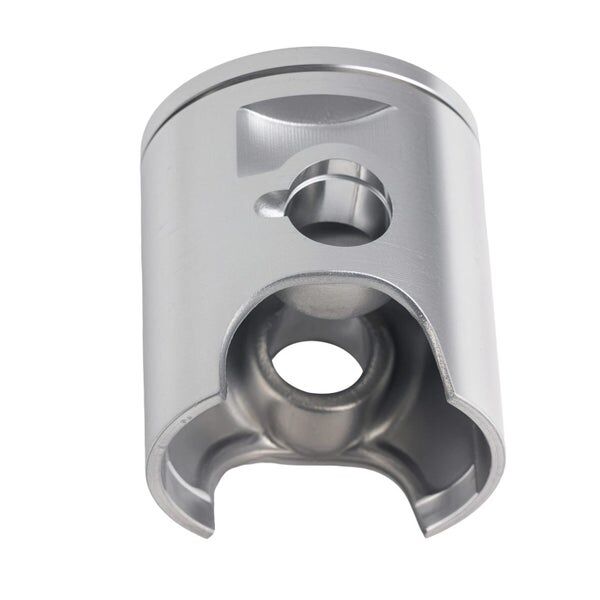

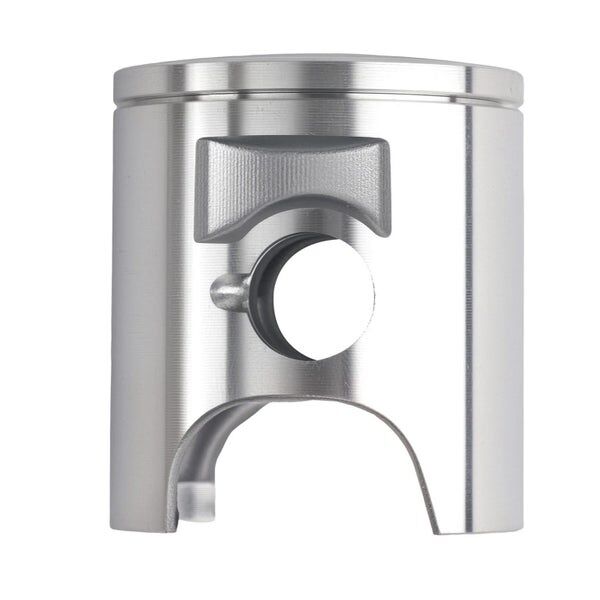

Piston,

Piston Ring,

Wristpin,

Circlips (2),

Needle Bearing,

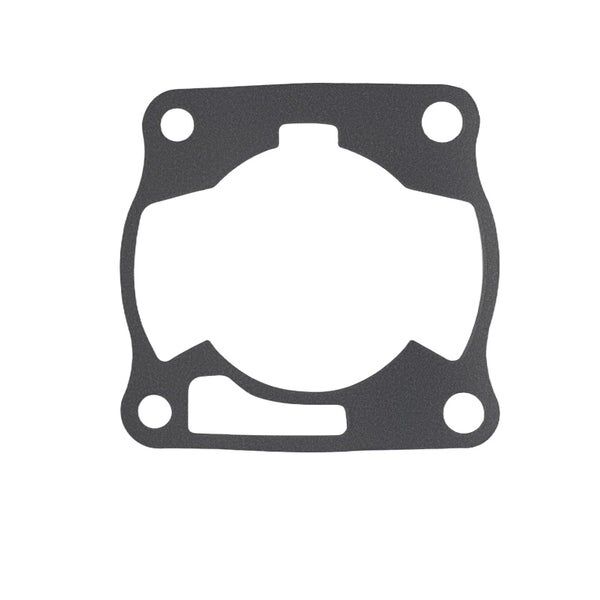

Base Gasket,

O-Ring #1,

O-Ring #2,


Notice
No instruction included, professional installation suggested.

SKU MTV-maX-289
Brand MAX PEEDING RODS
