Fitment
For Yamaha YZ85 2002 - 2018
For Yamaha YZ80 1993 - 2001

Specification
Type: Engine Rebuild Kit
Bore Size: STD 47.5mm
Stroke: 47.8mm

Replace OEM Number
Cylinder(YZ80): 4ES-11311-20-00, 4ES-11311-30-00
Cylinder(YZ85): 5PA-11311-20-00, 5PA-11311-30-00
Cylinder Base Gasket: 4ES-11351-00-00
Piston: 4ES-11631-01-A0, 5PA-11631-00-D0
Pin, piston: 4ES-11633-00-00
Piston ring: 43K-11611-00-00
Circlips, piston: 93450-16115-00
O-ring seal: 93210-56459-00, 93210-84724-00
Needle bearing(14 x 18 x 16.5 mm): 93310-21417-00

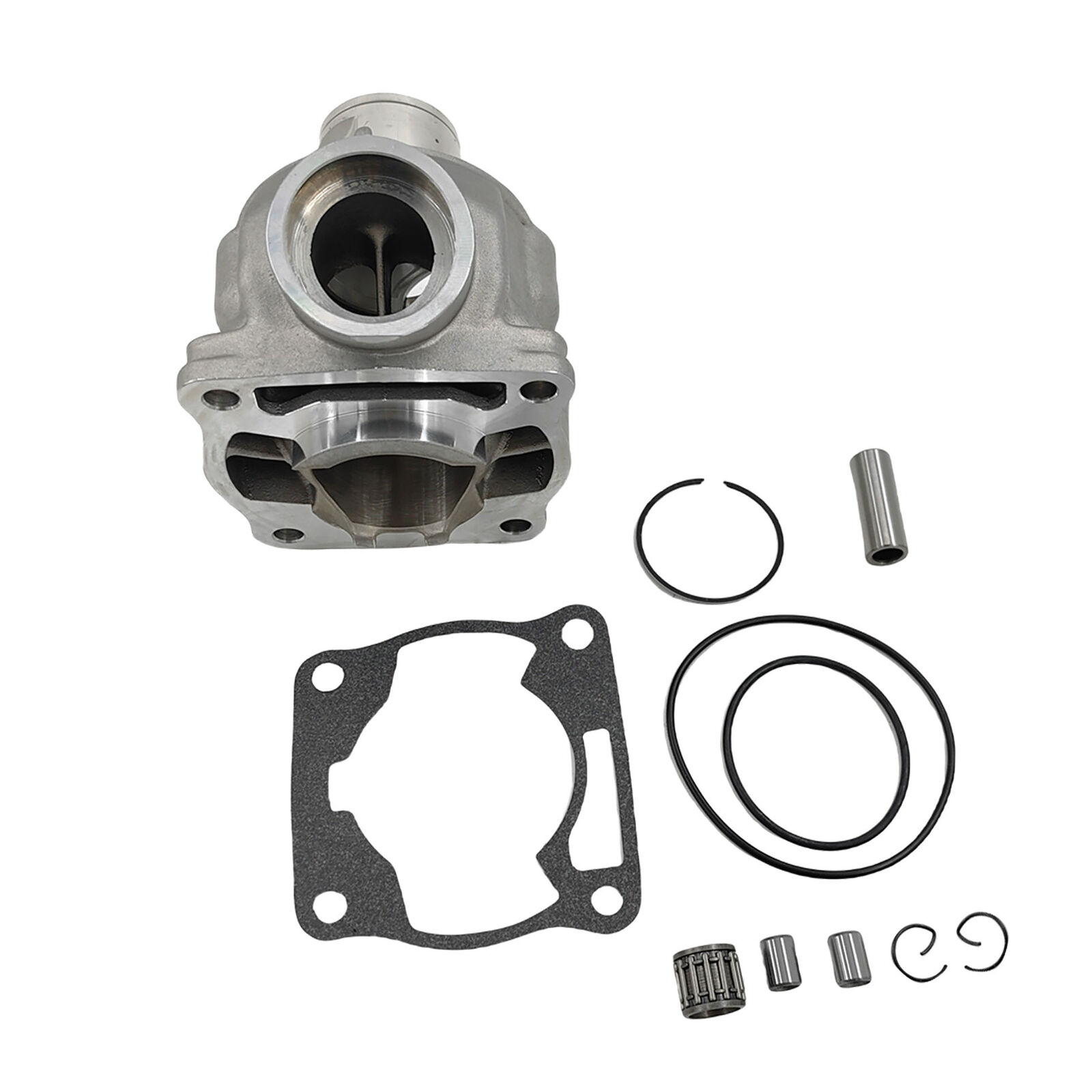

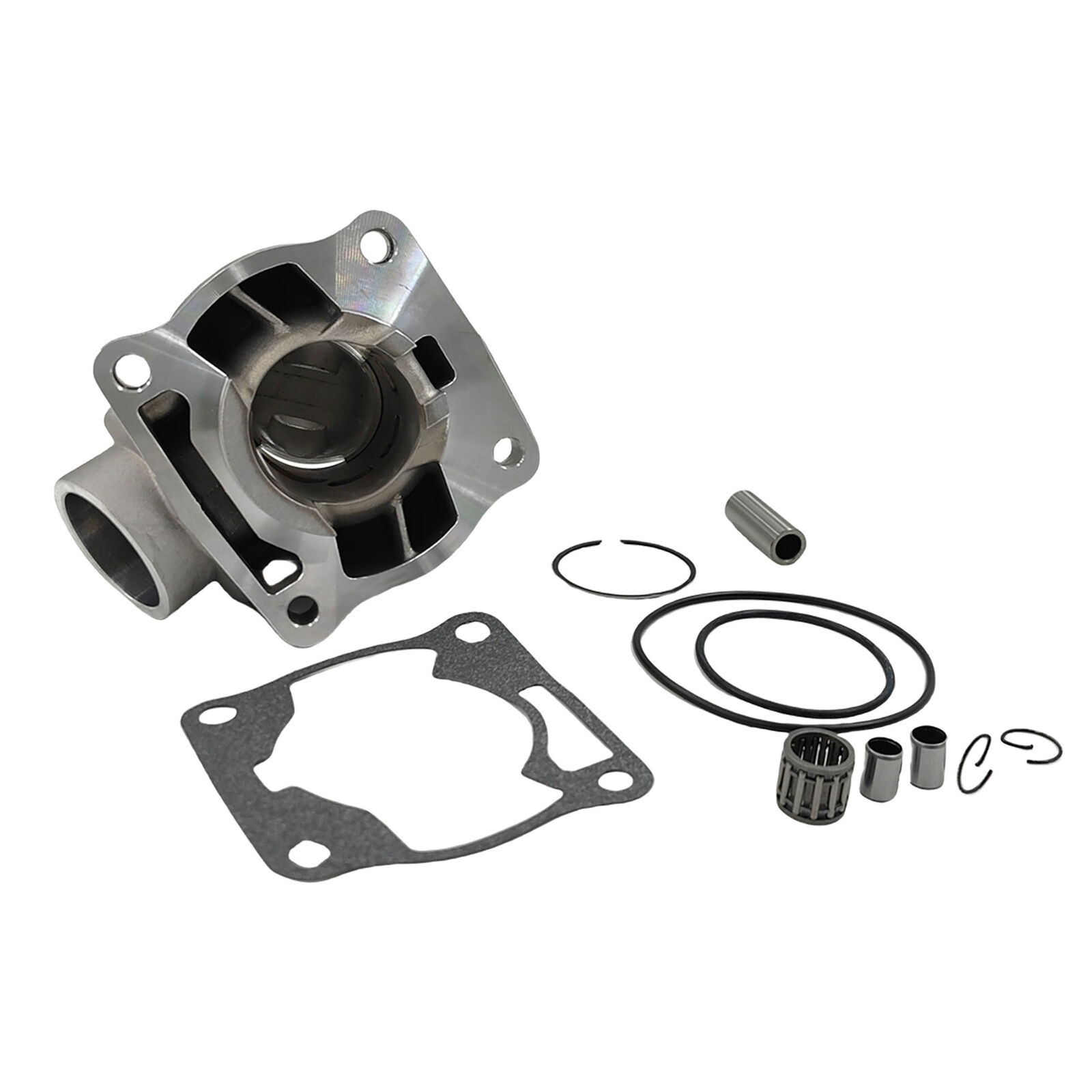

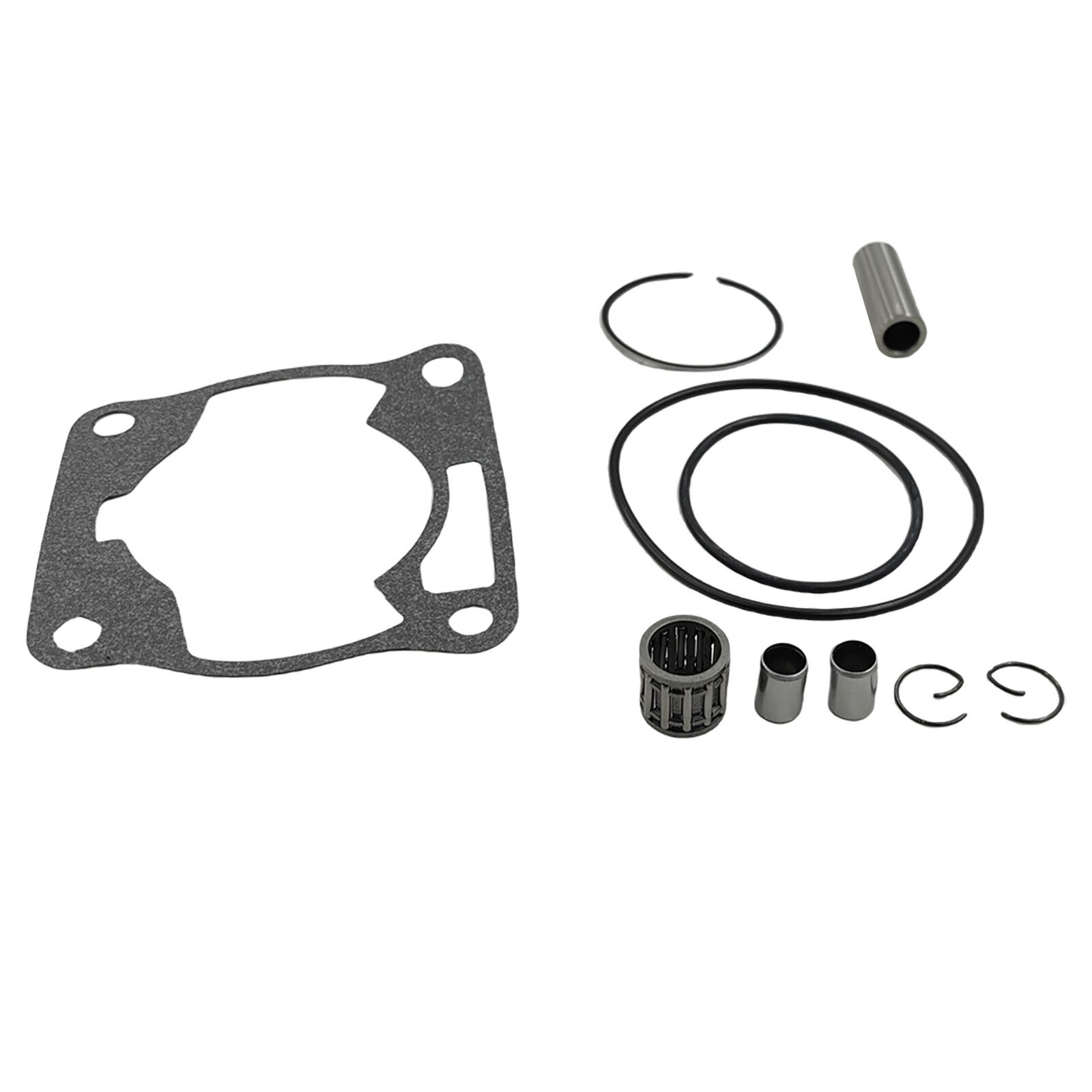

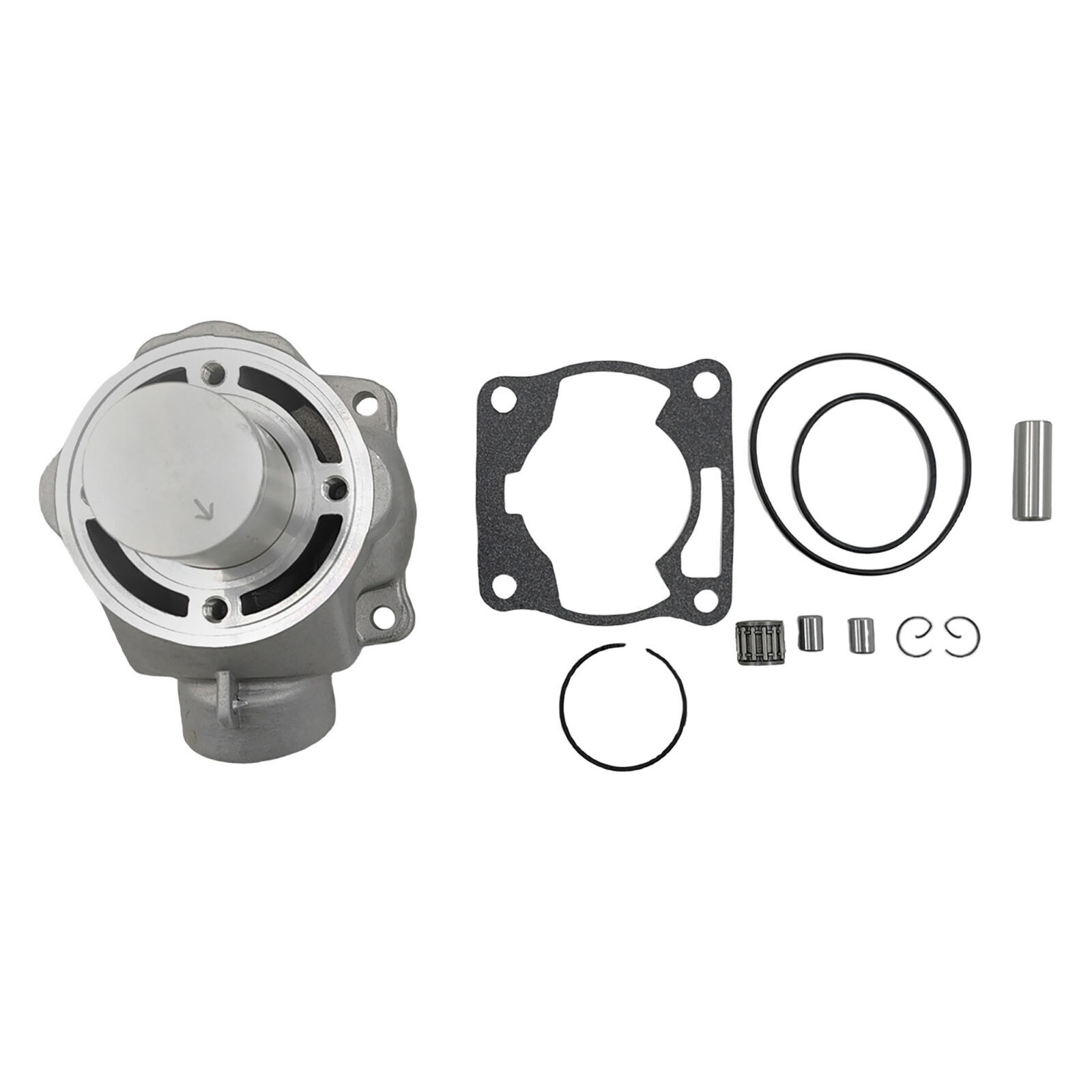

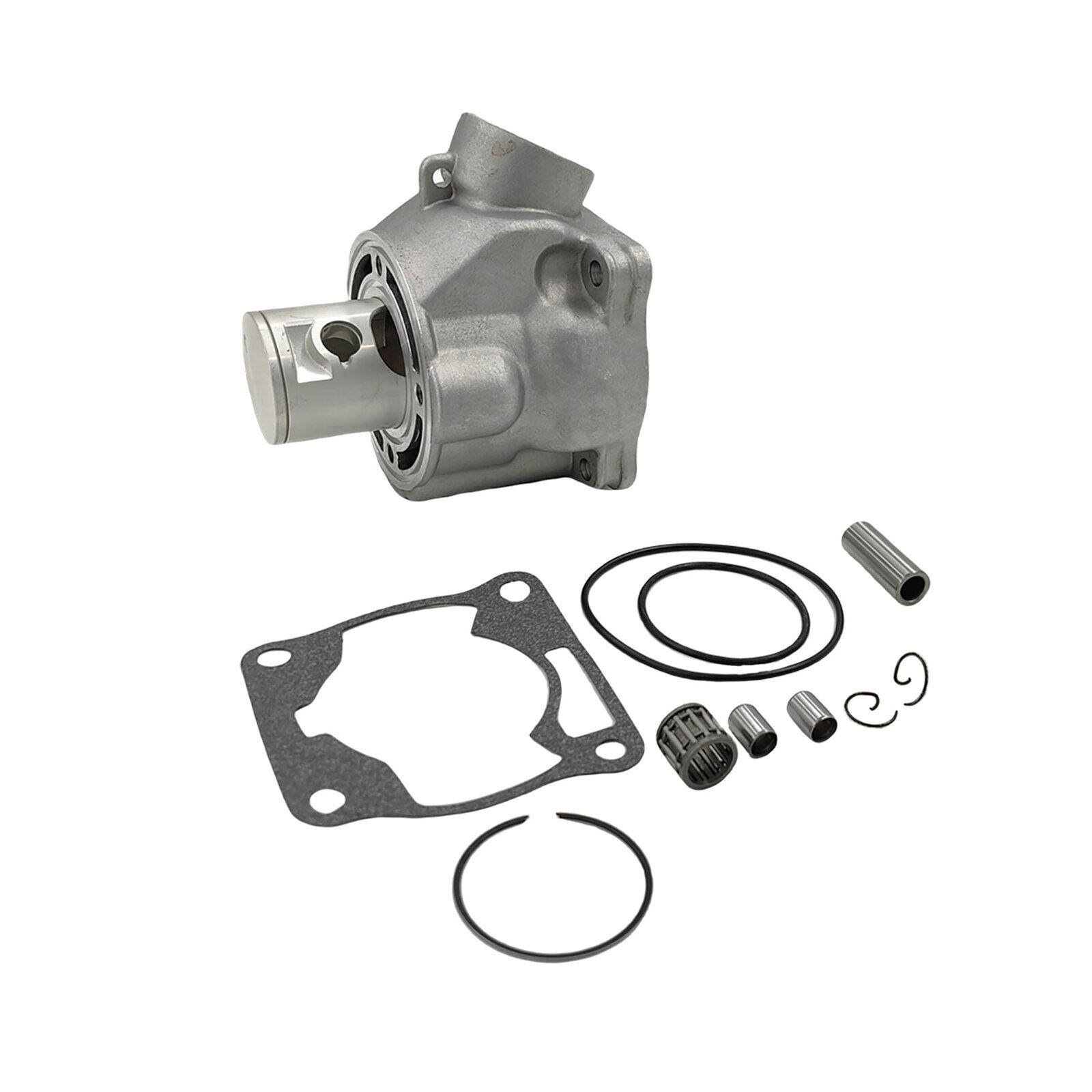

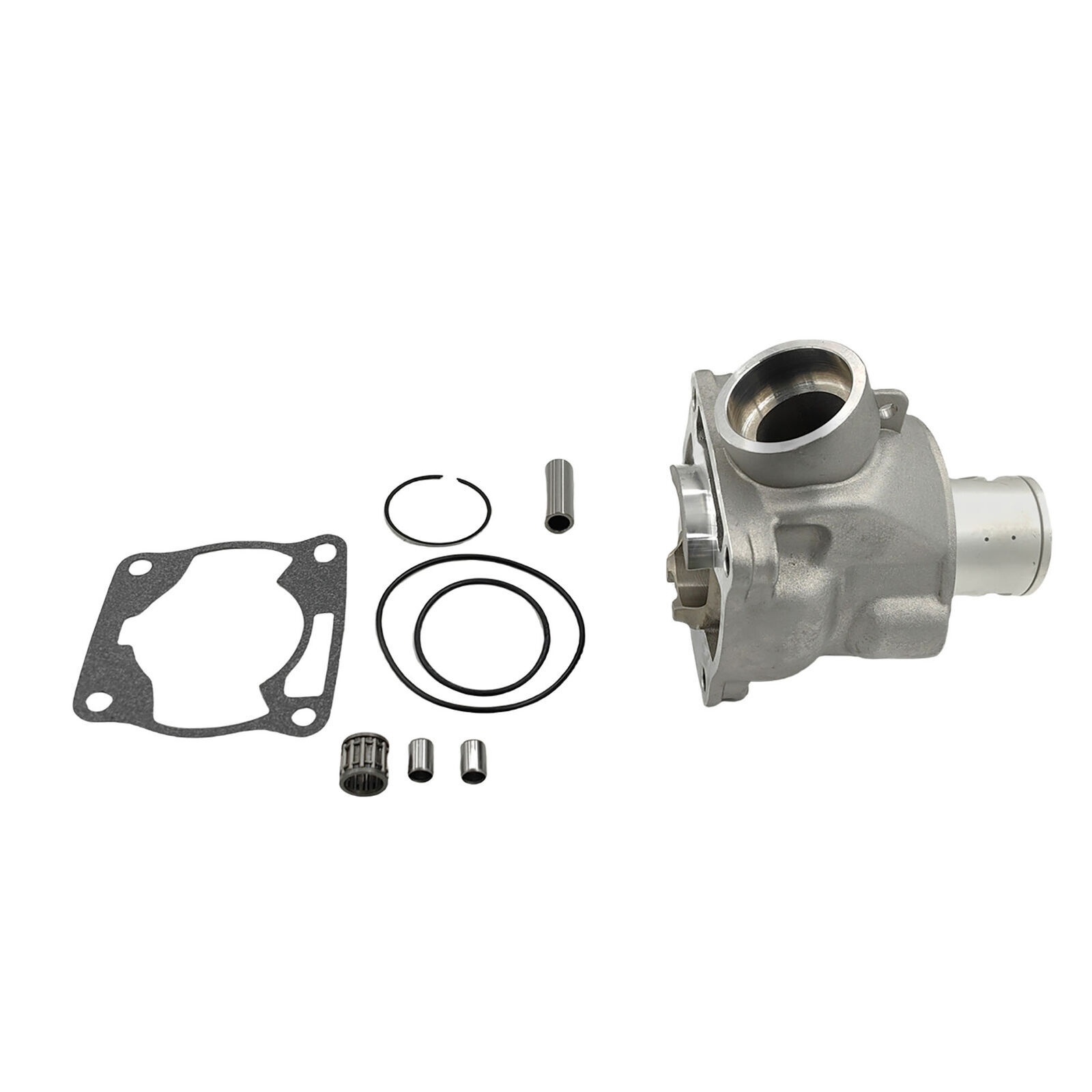

Package
1x 47.5mm Cylinder
1x Piston(STD)
1x Piston Ring
1x Wristpin
1x Cylinder Base Gasket
1x Needle bearing
2x O-Ring Seals
2x Circlips

Note
1.Please check OEM#, size & pictures before purchase.
2.Professional installation is recommended.

SKU CHEAD-YAM001
Shipping Weight 1.3000kg
Shipping Width 0.170m
Shipping Height 0.130m
Shipping Length 0.150m
Shipping Cubic 0.003315000m3
