Fitment
For Holden Commodore VE Sedan 2006-2013
For Holden Commodore VE Wagon 2008-2013
For Holden Commodore VE  Ute   2007-2013

Note: Don't Fit For VE SSV Commodore 6.0 model 2007

Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable: Available, 24 levels of rebound damping force
Rear Top mount: OE top mounts required
Camber adjustable: Not available
Spring Rate Rear: 8 kg/mm (448 lbs/in)
Rear spring inner diameter: 70-111 mm
Spring length Rear: 185mm
Shock Type: Twin tube

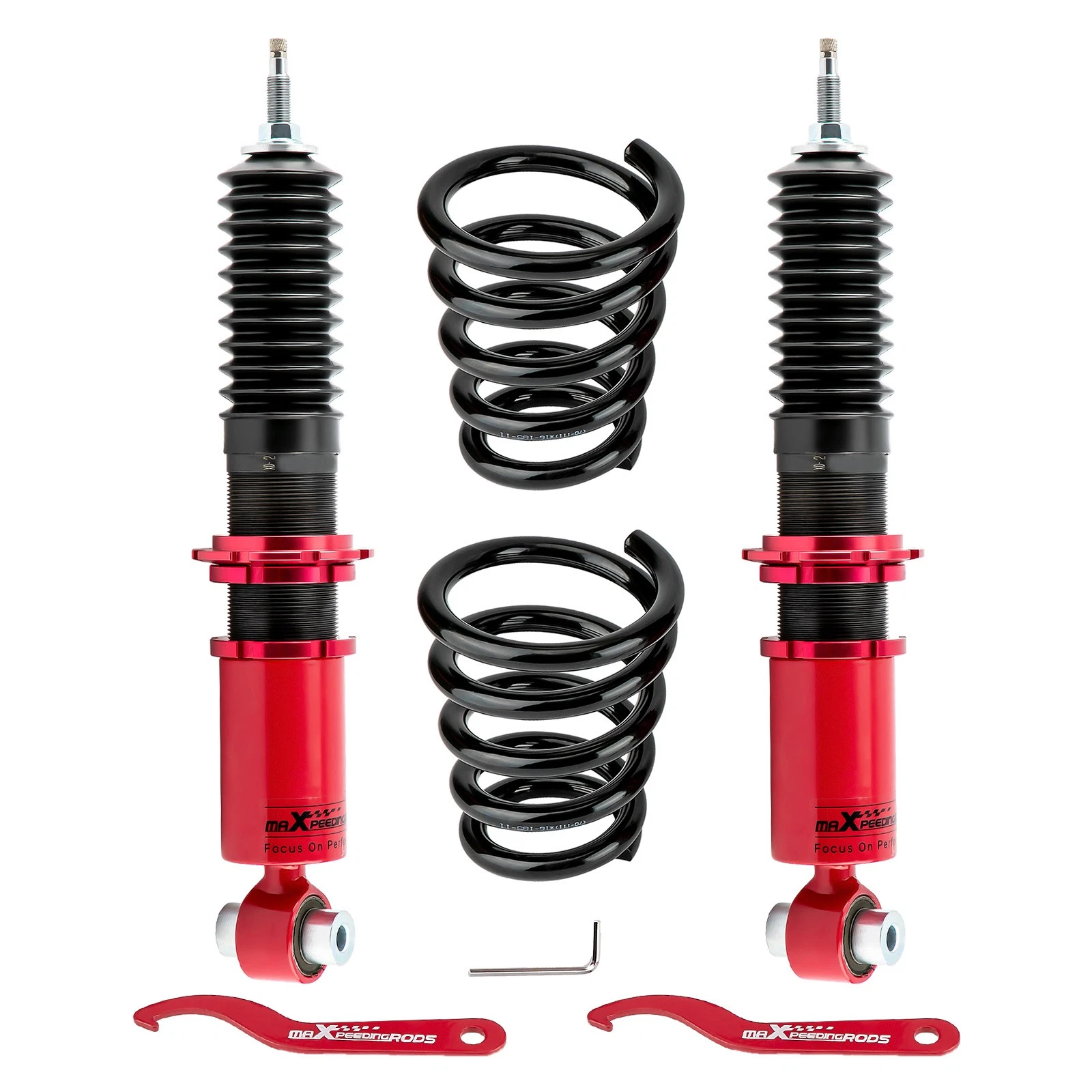

Package included
2x Rear coil-overs
2x C spanners
1x Allen wrench

Dimension
Package size : 73*26*19 cm
Weight: 11200 g

Note
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
Impact wrench is prohibited during the installation, it will loosen or damage the product.
Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.

SKU MTV-maX-005
Brand MAX
Shipping Weight 12.0000kg
Shipping Width 0.730m
Shipping Height 0.190m
Shipping Length 0.260m
Shipping Cubic 0.036062000m3
