Application

For Toyota Corolla 9th Gen. (E130) 2003-2008 USA

For Toyota Corolla 9th Gen (_E12_) (01/2001-12/2007) other markets

For Toyota Matrix XRS (E130) 2003-2008

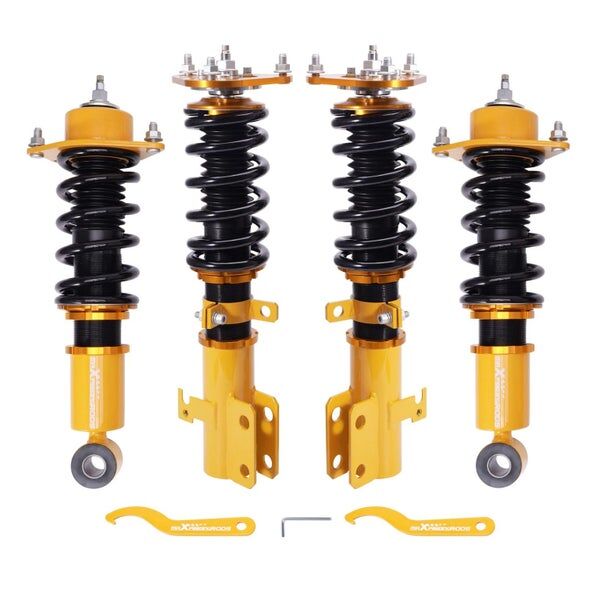

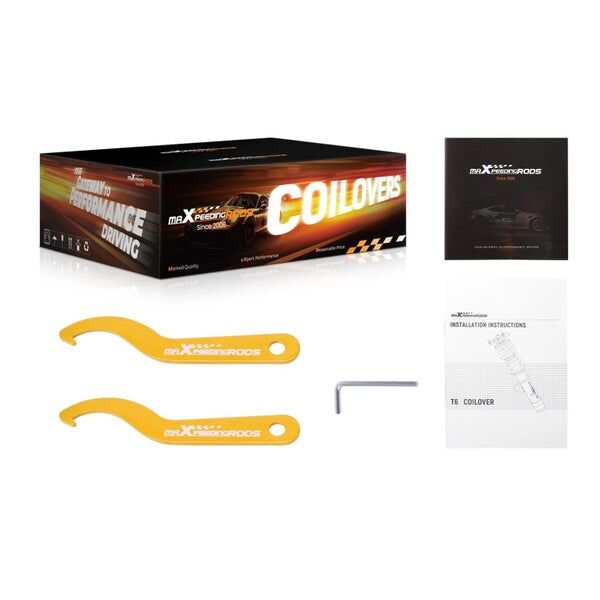

Package

2x Front coil-overs

2x Rear coil-overs

1x Allen wrench

Specification

Height adjustable Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable Available, 24 levels of rebound damping force

Front top mounts Pillow ball with camber plate

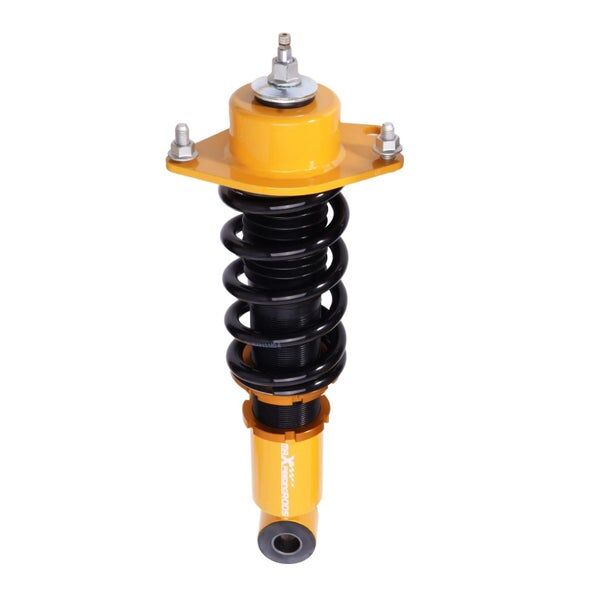

Rear top mounts Standard rubber

Camber adjustable Available

Spring rate Front 12 kg/mm (672 lbs/in)

Spring rate Rear 8 kg/mm (448 lbs/in)

Front spring inner diameter 70.5 mm

Rear spring inner diameter 70.5 mm

Spring length Front 190 mm

Spring length Rear 180 mm

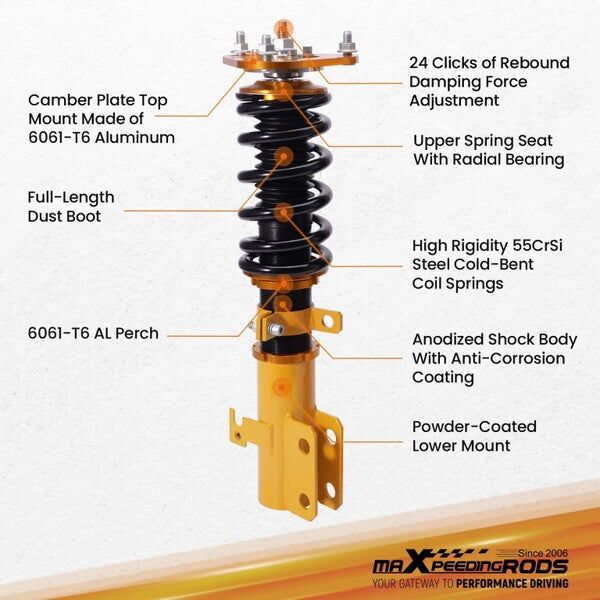

Features

Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

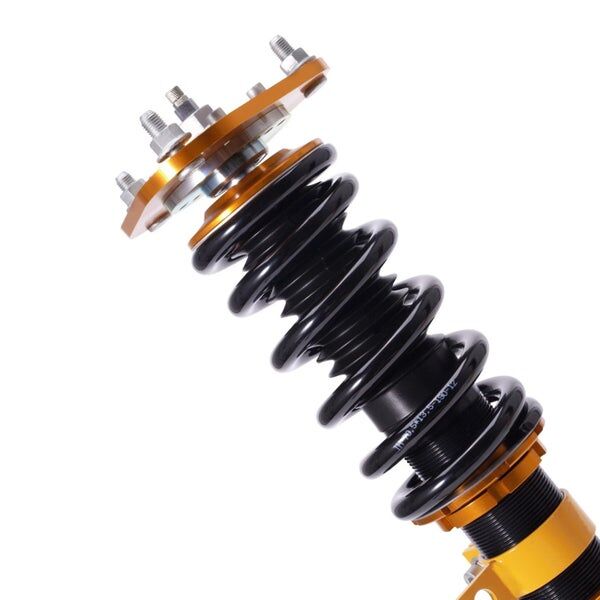

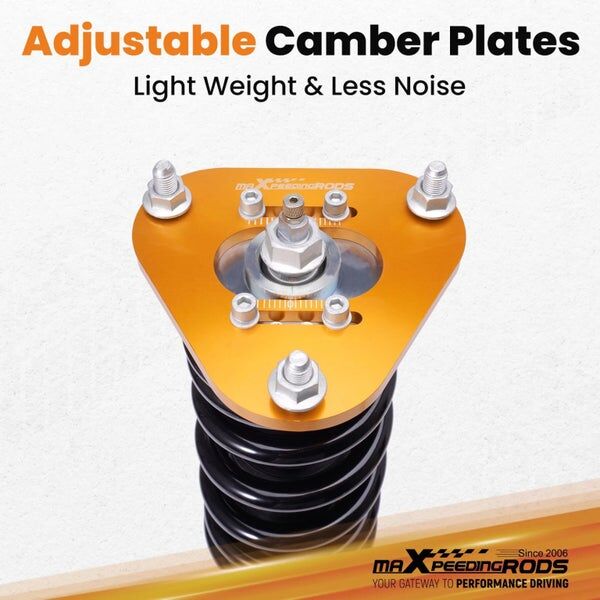

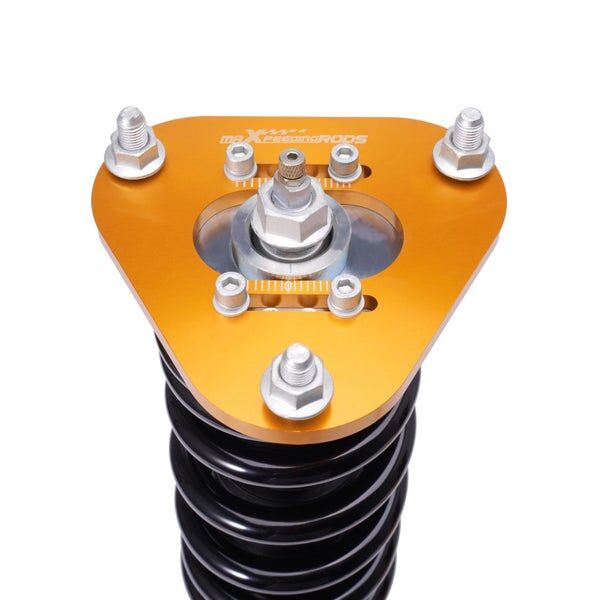

Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

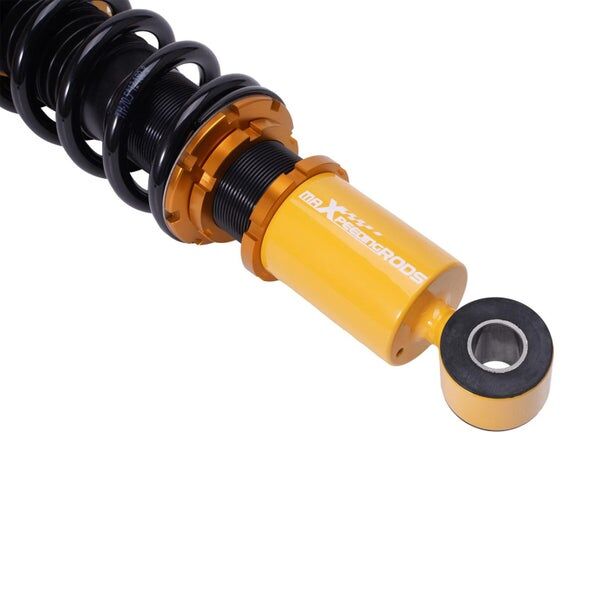

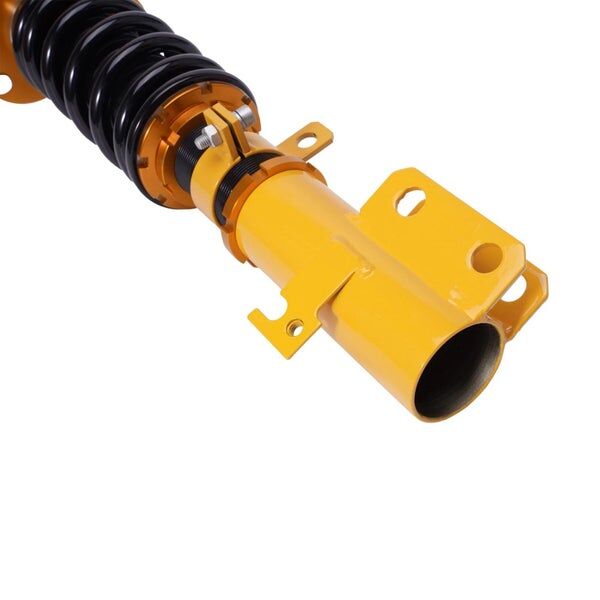

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

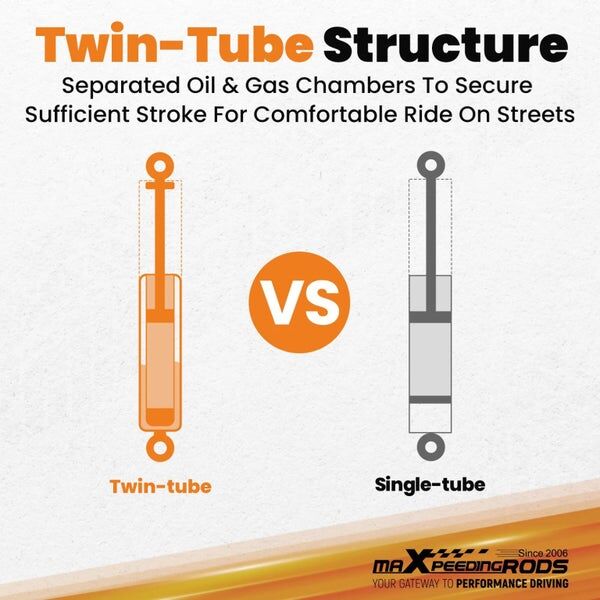

Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
