Feature

Used For Connecting Plastic Pipe, Copper Pipe, Stainless Steel Pipe

The Crimping Part Can Rotate 360 Degrees Freely

The Mold Can Be Easily Replaced.

The Same Tool Can Use Different Specifications Of Pipe Fittings

All Stressing Parts Made Of Special Steel Treatment Wit

Small Size, Lightweight

The Product Is A Manual Tool, High Efficiency, Reliable Quality, Easy To Operate

Can Be Transposed Mold, The Same Tools Can Be Crimped Into 16-32mm From The Different Specifications Of Pipe Fittings.

Specification

Crimping Force：6 Ton

Stroke：45mm

Crimping Die：

1. U Type: Φ16mm, Φ20mm, Φ25mm, Φ32m (For Aluminum-Plastic Tube) (Including)

2. VAU Type：Φ12mm, Φ19mm, Φ25mm (3 Copper Pipes Dies) (Including)

3. DNI Type：DNI15, DN20, DNI25（Not Including)

Fitting Range：12-32mm

Length：580mm

Weight：Appox.6.48kg

Fitment

Widely Used In Power, Communications, Transportation, Petroleum, Chemical, Mining, Metallurgy, Shipbuilding, And    Other Fields

Fit For Plastic Pipes, PEX Pipes, Lead Pipes, And Other Brass, Copper Header, Stainless Steel Compression Sleeve, Aluminum, And Copper Jacket Cover

Plumbing Tool, Household Tool Set

Attention

We Strongly Recommend You Should Be Familiar With How To Repair The Car Before Purchasing The Tools.

It Is Strictly Prohibited Not To Install The Air Pressure Of The Die, So As Not To Damage The Pliers Head

Correct And Proper Operation Of The Tools Is Very Important To Prevent Any Unnecessary Injuries.

Package

1 x Crimping Tool

7 x Dies:

     4 U Type Dies: U16mm, U20mm, U25mm, U32m (For Aluminum-Plastic Pipes)

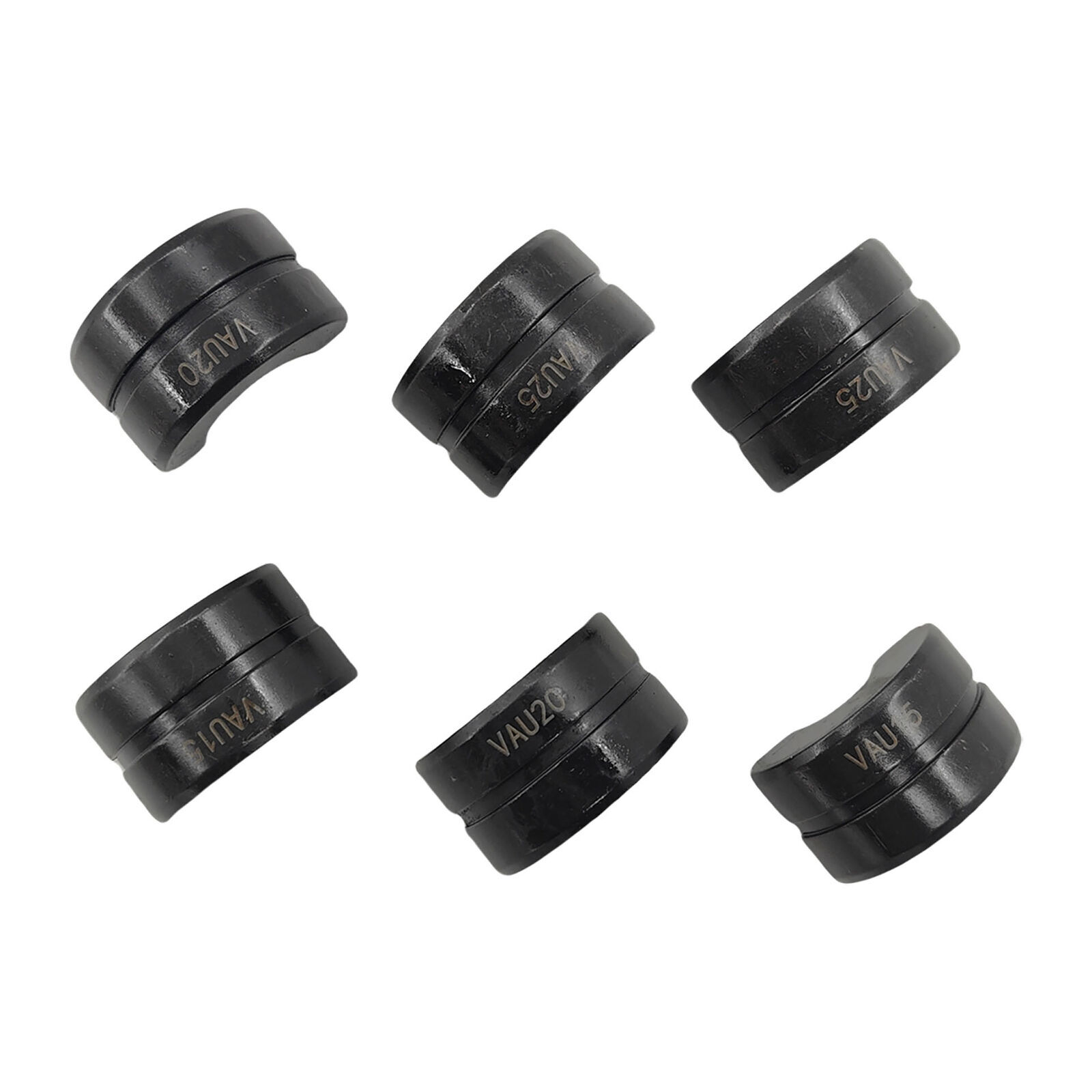

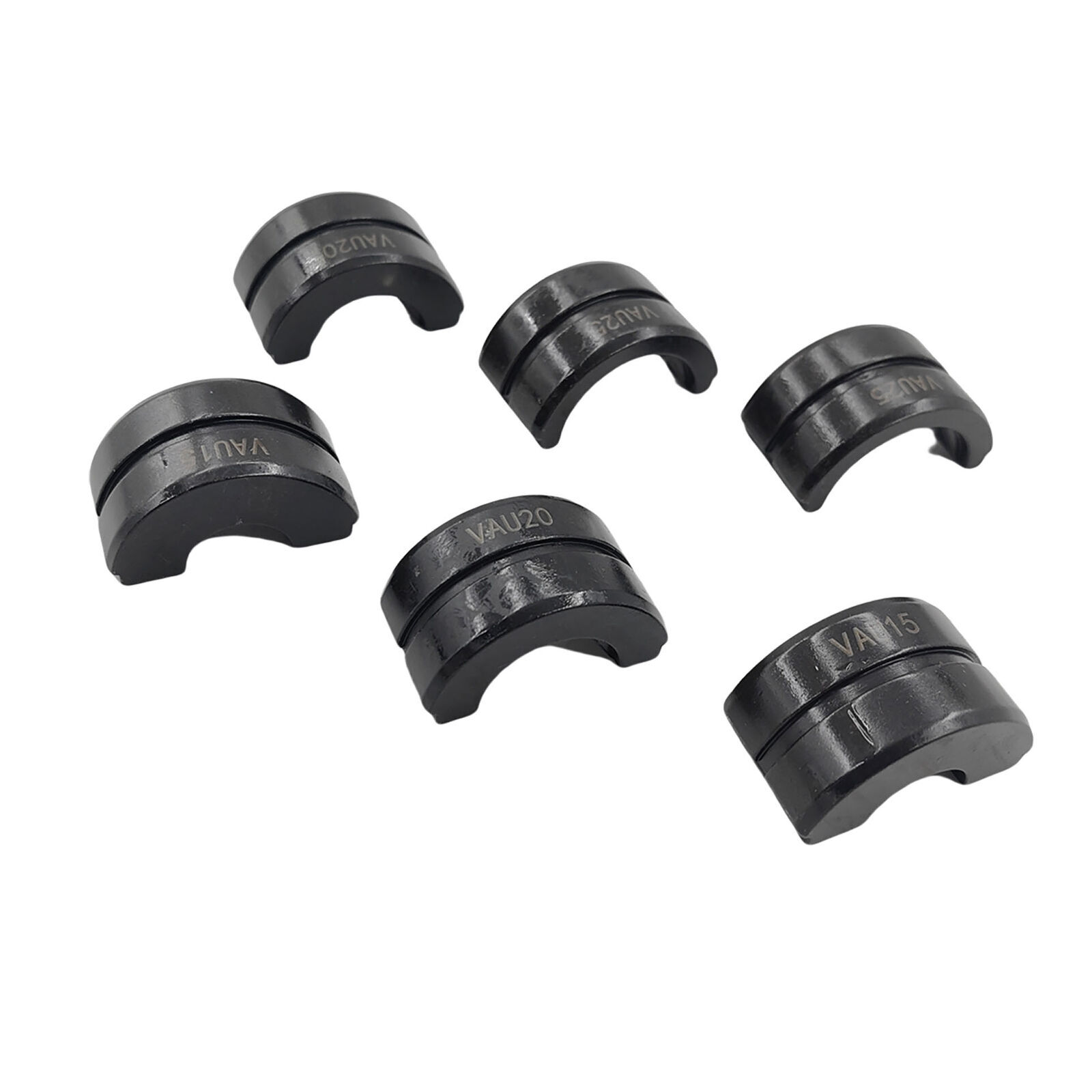

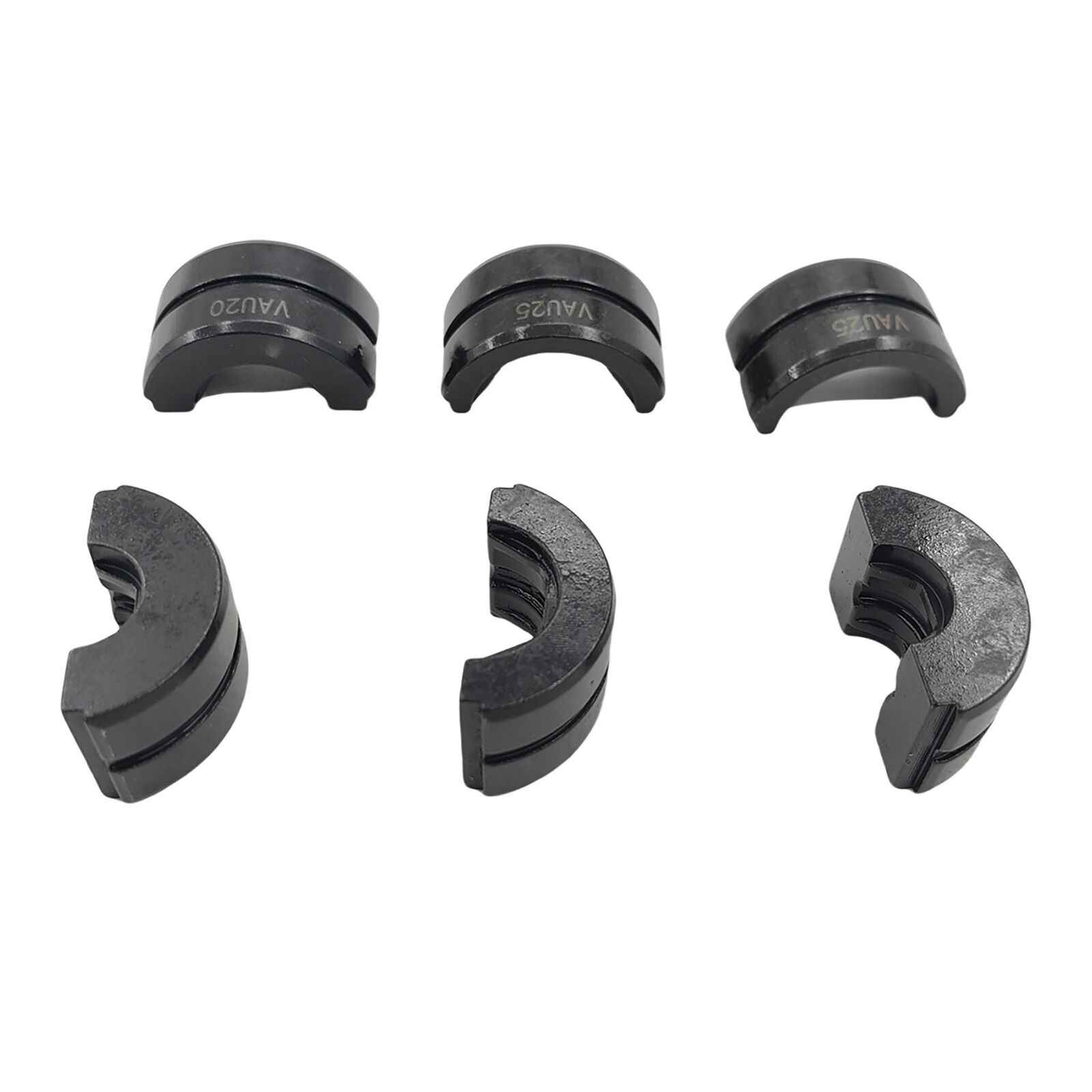

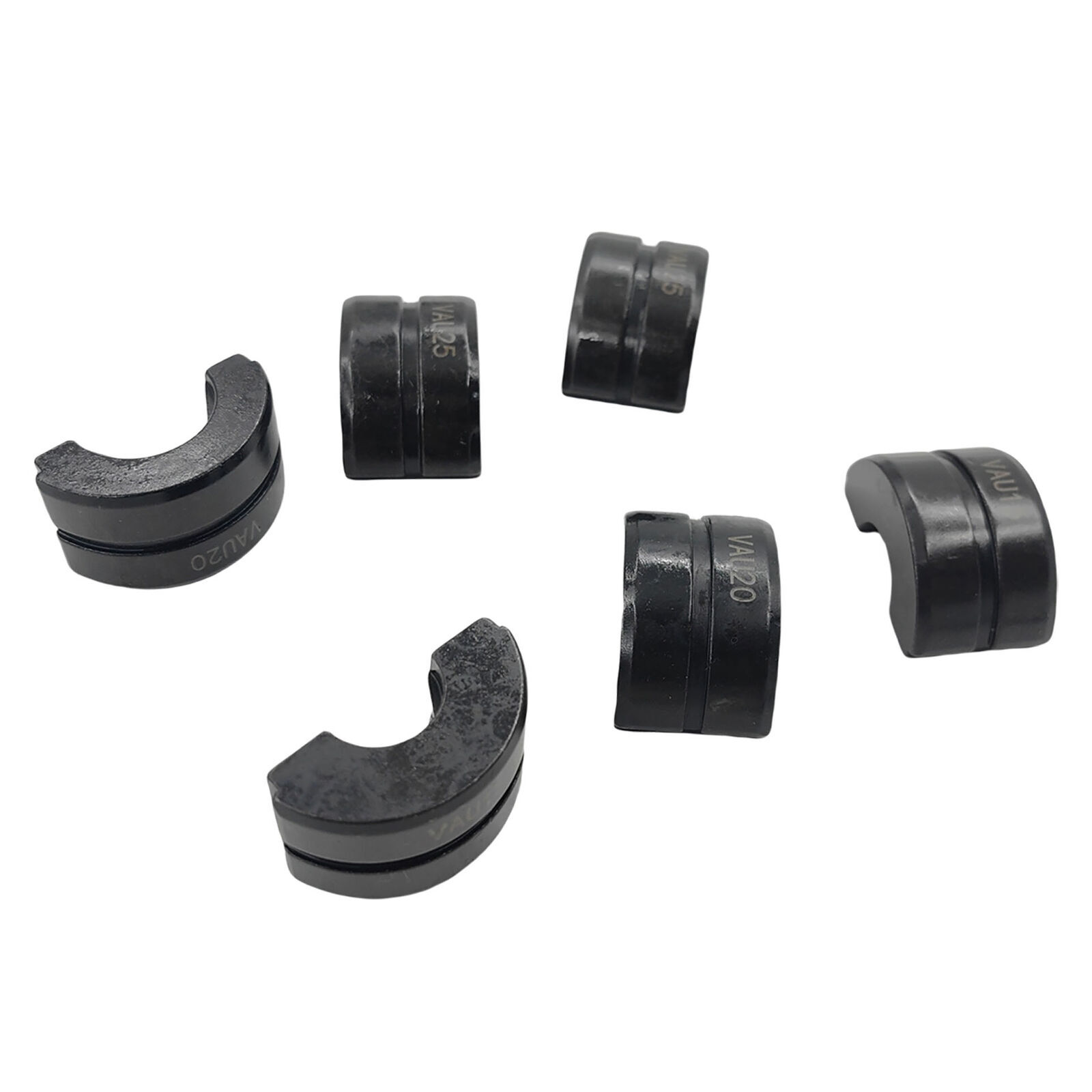

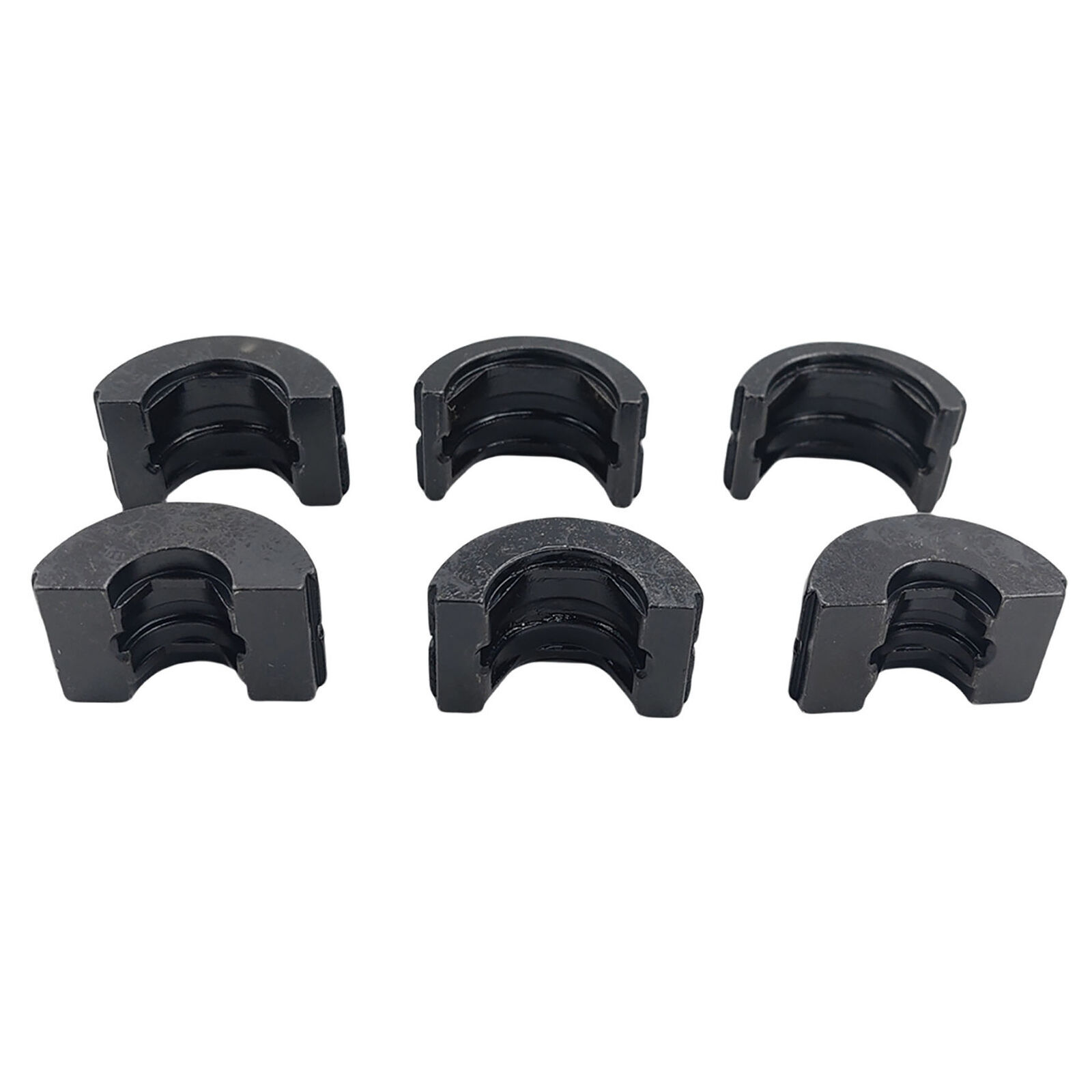

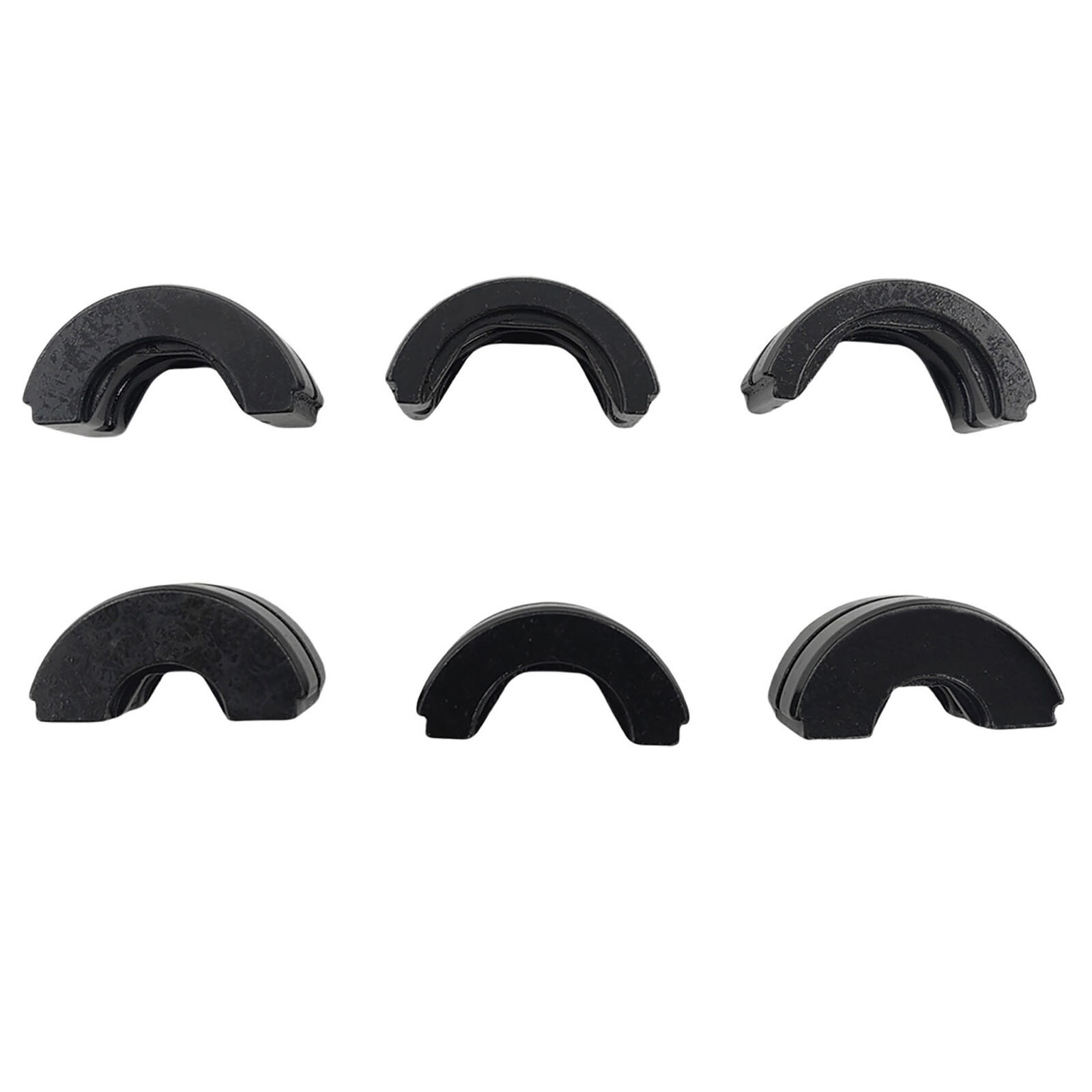

     3 VAU Type Copper Pipe Dies: VAU15，VAU20, VAU25 (For Copper Pipes)

1 x Instruction

1 x Blow Molded Case
